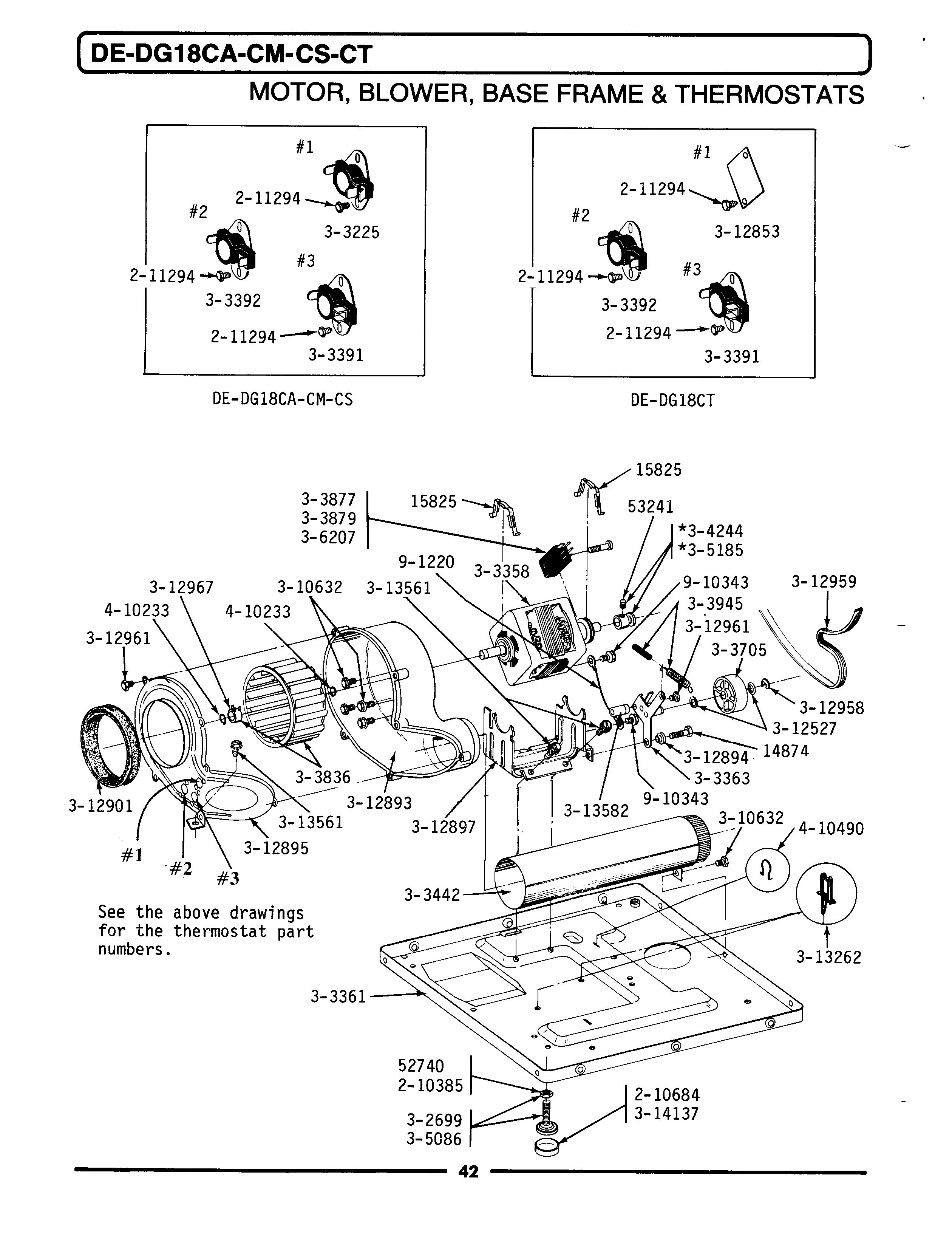

GDE18CT 14 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
001	WPY014874 Whirlpool Screw
002	WPY015825 Whirlpool Motor Clip
003	WP62739 Whirlpool Nut
004	MAY Y053241
005	WP210385 Whirlpool Lock Nut
006	WP210684 Whirlpool Dishwasher Leveling Leg Pad
007	WP90767 Whirlpool Screw
008	LEG, ADJUSTABLE (W/NUT)—S
009	W10410999 Whirlpool Dryer Drive Motor
010	MAY Y303361
011	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
012	WP33303391 Whirlpool Thermostat
013	WP694674 Whirlpool Cycling Thermostat
014	MAY Y303442
015	WP6-3037050 Whirlpool Idler Pulley
016	Y303836 Whirlpool Dryer Blower Wheel
017	MAY Y303877
018	MAY Y303879
019	MAY Y303945
020	WP6-3042440 Whirlpool Motor Pulley
021	MAY Y304245
022	W10176519 Whirlpool Leveling Feet
023	MAY Y305185
025	MAY Y310632
026	MAY Y312527
027	MAY Y312853
028	MAY Y312893
029	SLEEVE, IDLER ARM —-S
030	MAY Y312895
031	DOWEL PIN FOR HANDLE
032	WPY312901 Whirlpool Blow Seal
033	WP354987 Whirlpool C-Clip
034	WPY312959 Whirlpool Dryer Drum Belt
035	WPW10116751 Whirlpool Screw
036	WP312967 Whirlpool Clamp
037	MAY Y313262
038	MAY Y313561
039	WPW10116756 Whirlpool Spacer
040	WPY314137 Whirlpool Rubber Foot
041	WP9703438 Whirlpool Snap Retaining Ring
042	MAY 410490
043	MAY 901220
044	MAY 910343
