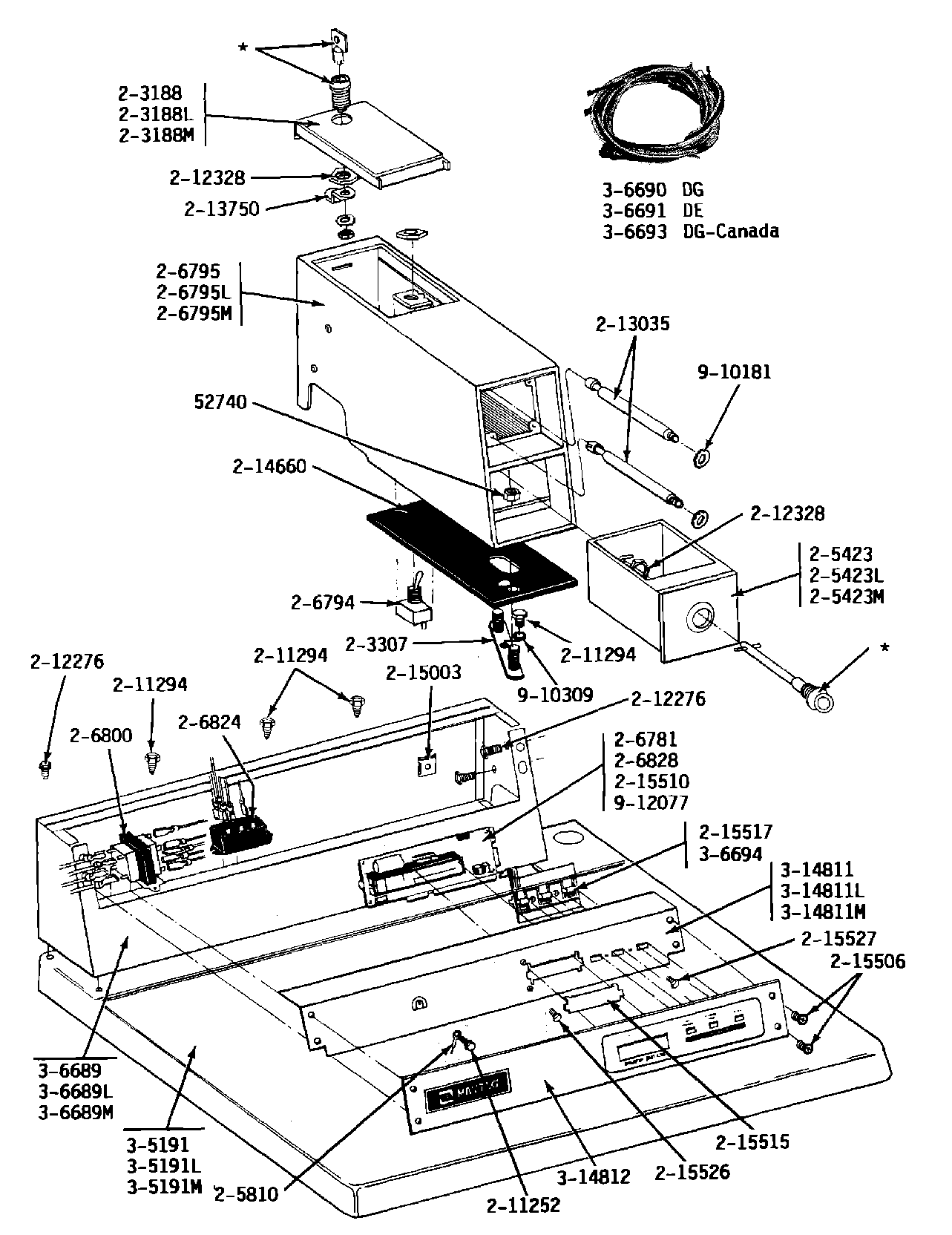

GDE19CD 01 – CD CONTROL PANEL & CONTROL CENTER

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY 206795L
NI	MAY 206795
NI	MAY Y305191
NI	W11165684 Whirlpool Cam
NI	MAY 203188M
NI	ACCESS DOOR-ALMOND
NI	MAY 203188
NI	WP489399 Whirlpool Refrigerator Screw
NI	W10756178 Whirlpool Screw
001	WP62739 Whirlpool Nut
006	COIN BOX-WHITE
007	COIN BOX-ALMOND
008	MAY 205423M
009	MAY 205810
011	MAY 206794
015	MAY Y206800
016	MAY 206824
017	MAY 206828
019	WP90767 Whirlpool Screw
020	MAY 212276
021	W11395752 Whirlpool Nut
022	MAY 213035
024	MAY 214660
025	MAY 215003
026	WPW10131119 Whirlpool Screw
027	MAY 215510
028	DISPLAY COVER
029	WPW10424308 Whirlpool Push Button
030	SCREW, CIRCUIT BOARD
041	BACKUP PLATE W/SWITCH
046	MAY 910181
047	MAY 910309
048	M0282005 Whirlpool Nut
