GDE19CT 02 – CABINET-REAR – Aparts

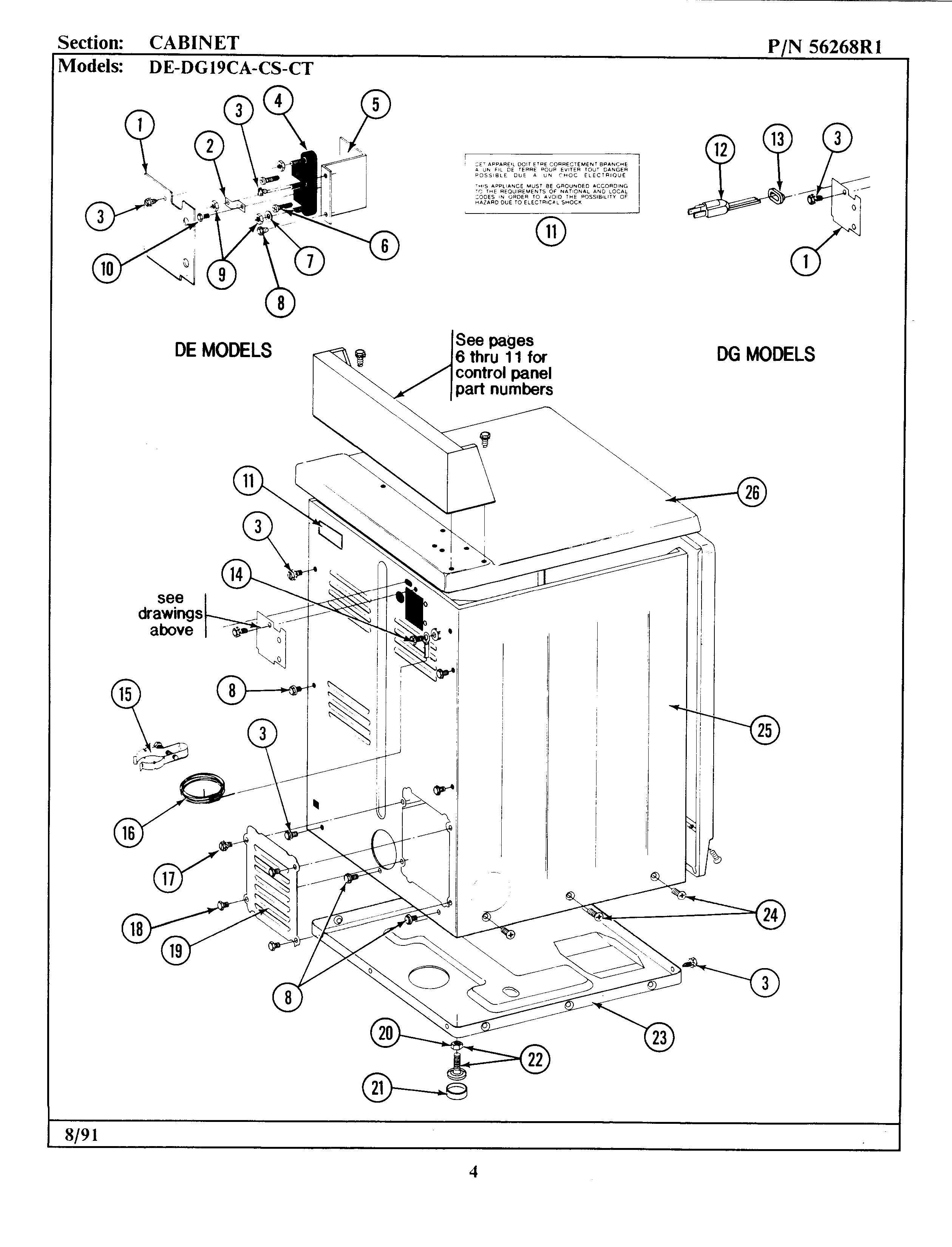

GDE19CT 02 – CABINET-REAR

Products

Position	Product
001	MAY Y312905
002	PART NOT USED
003	MAY Y313561
004	PART NOT USED
005	PART NOT USED
006	SCREW, No.10-24 X 3/4 INCH-----O
007	WPY311270 Whirlpool Washer TE
008	MAY Y310632
009	WP112432 Whirlpool Nut Assembly
010	PART NOT USED
011	INSTRUCTION LABEL
012	MAY 302521
013	GROMMET
015	MAY 301548
016	WP311155 Whirlpool Wire Assembly
017	MAY Y313559
018	WP90767 Whirlpool Screw
019	MAY Y312951
020	WP62739 Whirlpool Nut
021	WPY314137 Whirlpool Rubber Foot
022	W10176519 Whirlpool Leveling Feet
023	MAY Y303361
024	213007 Whirlpool Screw #12
026	DOWEL PIN FOR HANDLE
026	MAY Y305191
