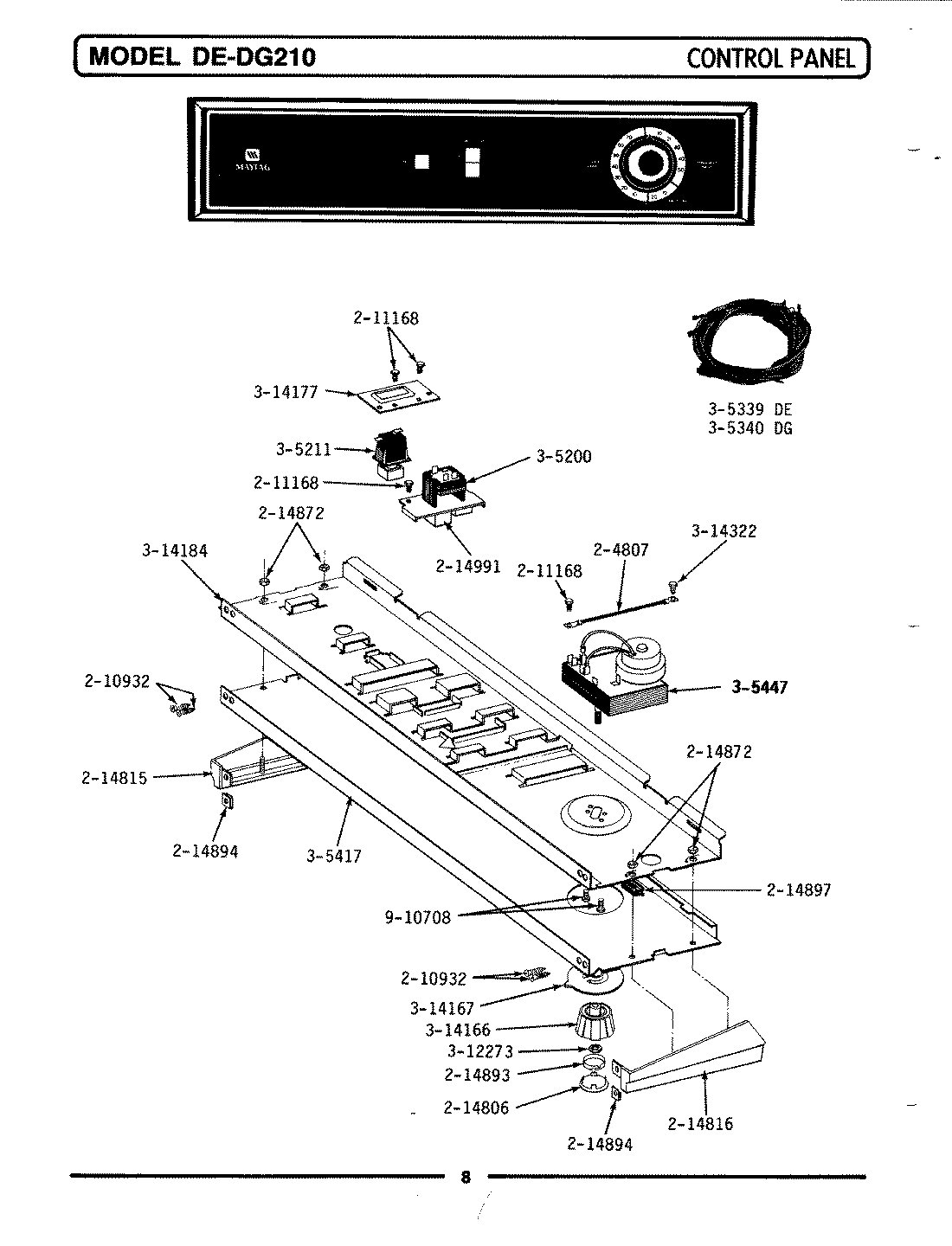

GDE210 02 – CONTROL PANEL

GDE210 02 – CONTROL PANEL

Written by

in

GDE210 02 – CONTROL PANEL

Products

Position	Product
1	MAY 204807
2	MAY 210932
3	WPW10139210 Whirlpool Screw
4	MAY 214806
5	MAY 214815
6	MAY 214816
7	MAY 214872
8	MAY 214893
9	MAY 214894
10	MAY 214897
11	MAY 214991
12	MAY 305200
13	MAY 305211
14	TIMER
15	MAY 305339
16	MAY 305340
17	CONTROL PANEL
18	W10155650 Whirlpool Nut
19	MAY Y314166
20	TIMER DIAL INDICATOR
21	BRACKET FOR START SWITCH
22	BACK UP PLATE
23	MAY Y314322
24	MAY 910708
