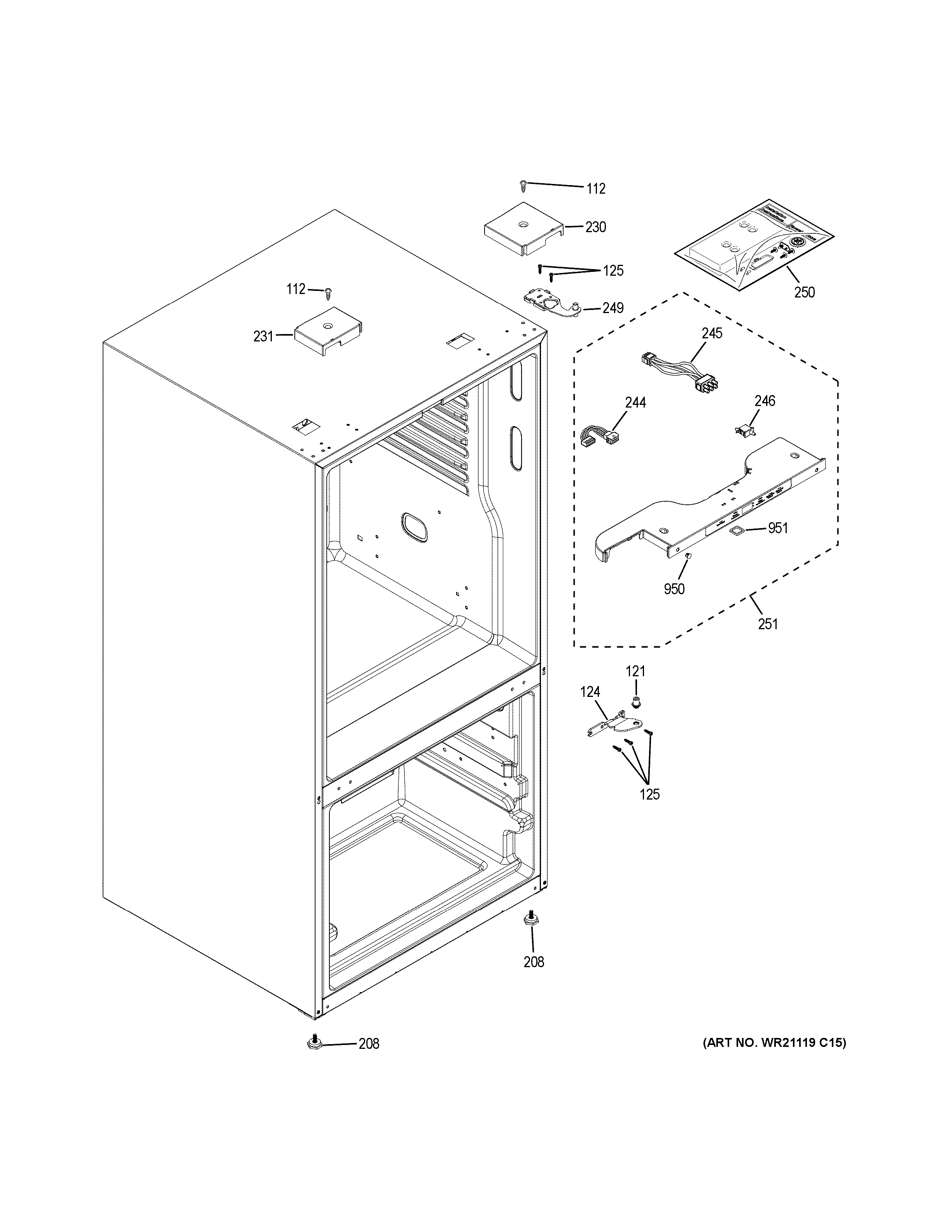

GDE21EGKARBB CASE PARTS

GDE21EGKARBB CASE PARTS

Written by

in

GDE21EGKARBB CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
121WR02X24905 GE Refrigerator Steel Hinge Pin
124WR13X24864 GE Refrigerator Center Hinge
125WR01X10683 GE Refrigerator Screw 12-24 TT HXT20 .90 S
208WR01X10850 GE Refrigerator Leveling Screw
230WR02X25701 GE Top Right Hinge Cover
231WR13X25702 GE Top Bb Hinge Cover
244WR55X24897 GE Refrigerator Interface Harness
245HARNESS SWITCH
246FRESH FOOD DOOR LIGHT SWITCH
249WR13X24907 GE Refrigerator Top Hinge and Pin Assembly
250KIT HINGE CHANGEABLE BB
251WR55X25707 GE Refrigerator Interface Top Assembly BB
950PLUG BUTTON BB
951WR02X25397 GE HMI Spacer
