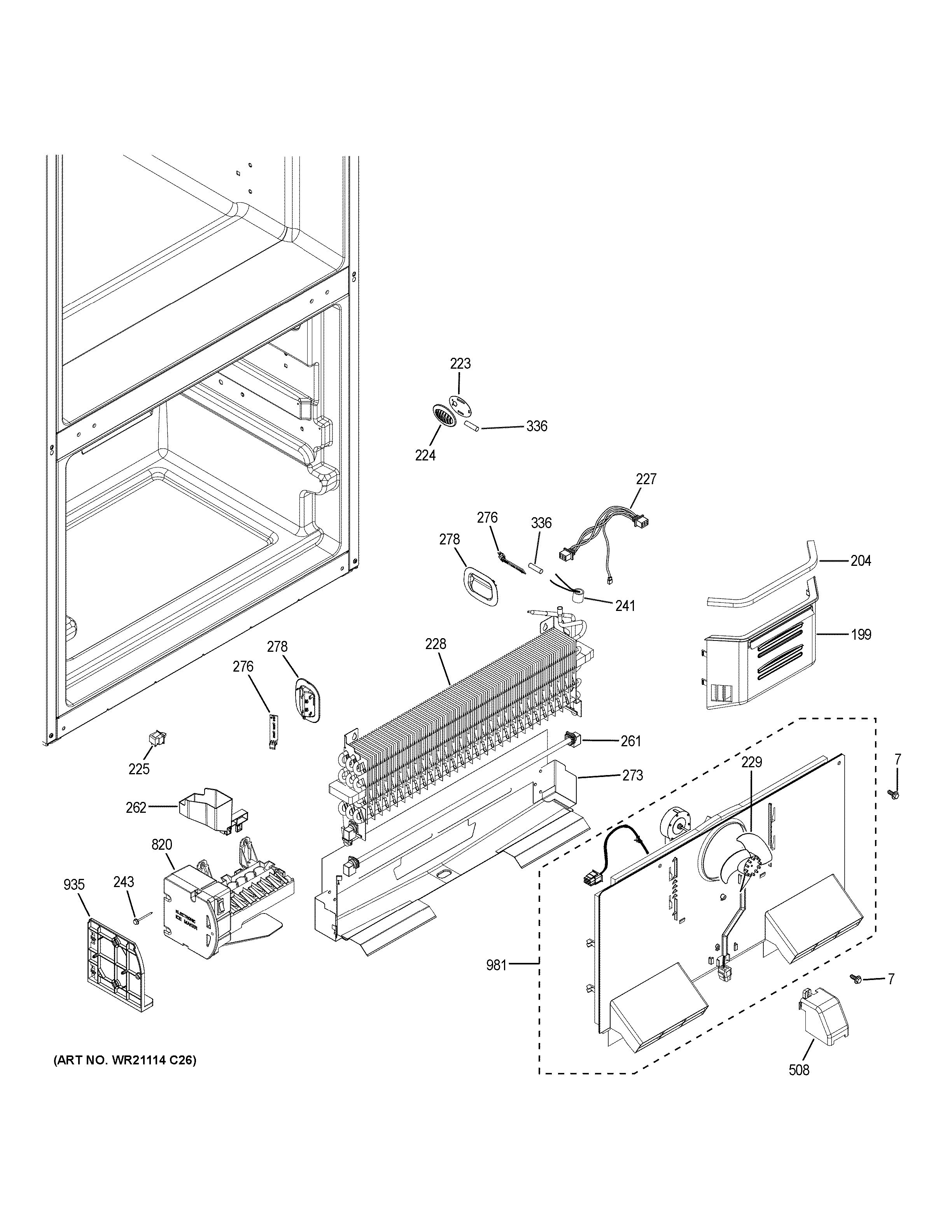

GDE21EGKBRBB FREEZER SECTION

GDE21EGKBRBB FREEZER SECTION

Written by

in

GDE21EGKBRBB FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
199WR17X40007 GE Refrigerator Evaporator Cover & Fan
204WR14X24804 GE Refrigerator Adhesive Foam Strip
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
225WR23X37285 GE Light Switch
227WR55X28649 GE Refrigerator Evaporator Harness
228WR85X25309 GE Refrigerator Low Side Assembly
229EVAPORATOR FAN BLADE
241THERMOSTAT DEF
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
261WR51X25156 GE Refrigerator Heater Defrost Assembly
262WR29X24823 GE Refrigerator Cup Fill Assembly
273TROUGH DRAIN ASM
276WR55X24870 GE Refrigerator Board LED Light Assembly
278WR02X38285 GE Light Shield
336WR55X10025 GE Refrigerator Temperature Sensor
508WR02X40125 GE Refrigerator Connector Cover
820ICEMAKER
935WR02X24817 GE Refrigerator Support Im
981WR49X40250 GE Refrigerator Evaporator Cover and Fan
