GDE21EGKFRWW CASE PARTS

GDE21EGKFRWW CASE PARTS

Written by

in

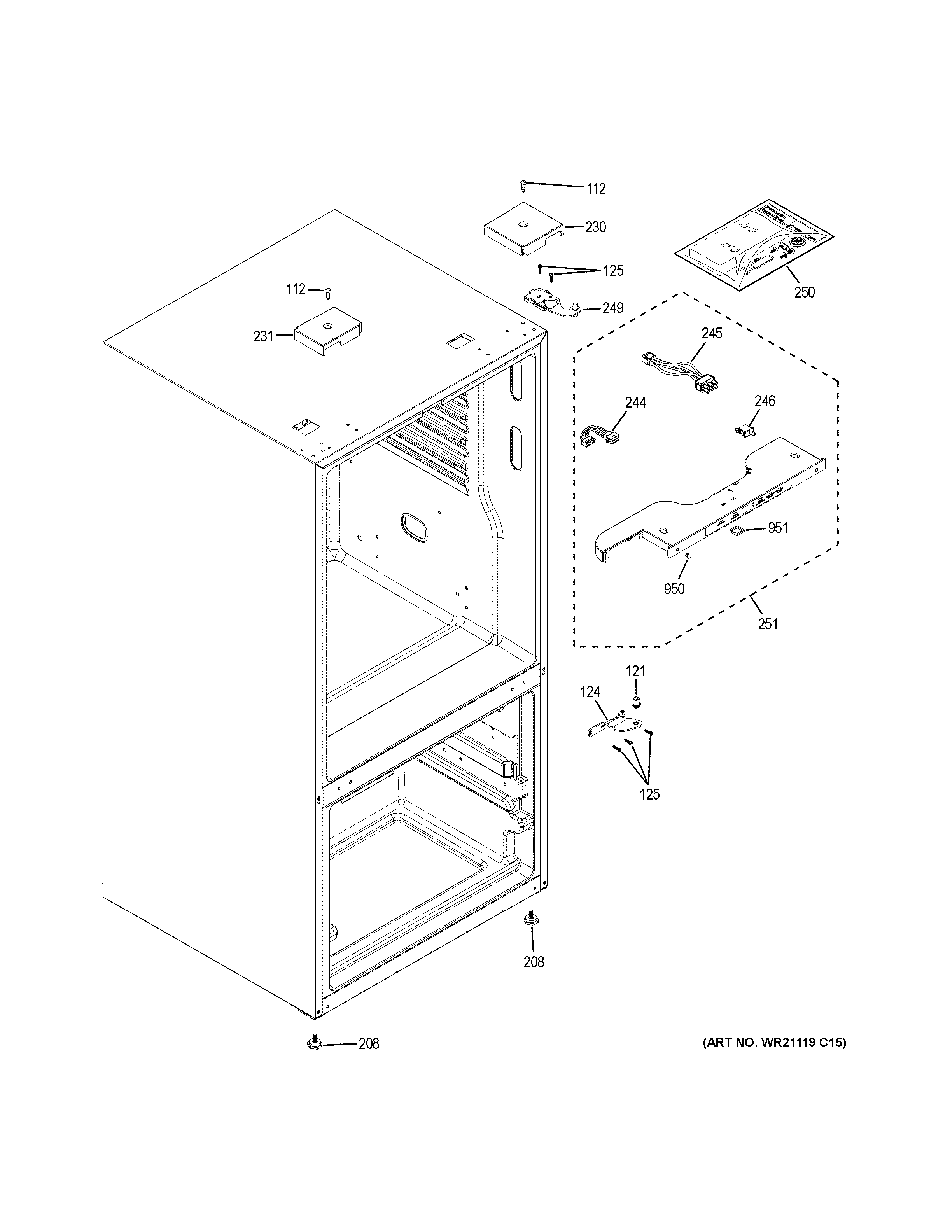

GDE21EGKFRWW CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
121WR02X24905 GE Refrigerator Steel Hinge Pin
124WR13X24864 GE Refrigerator Center Hinge
125WR01X27994 GE Refrigerator Screw 12-24 HXT20 .90 S
208WR01X10850 GE Refrigerator Leveling Screw
230COVER HINGE TOP RH WW
231COVER HINGE TOP WW
244WR55X24897 GE Refrigerator Interface Harness
245WR55X29207 GE Refrigerator Switch Harness
246FRESH FOOD DOOR LIGHT SWITCH
249WR13X24907 GE Refrigerator Top Hinge and Pin Assembly
250KIT HINGE CHANGEABLE WW
251TOP INTERFACE WHITE
950PLUG BUTTON WHITE
951WR02X25397 GE HMI Spacer
