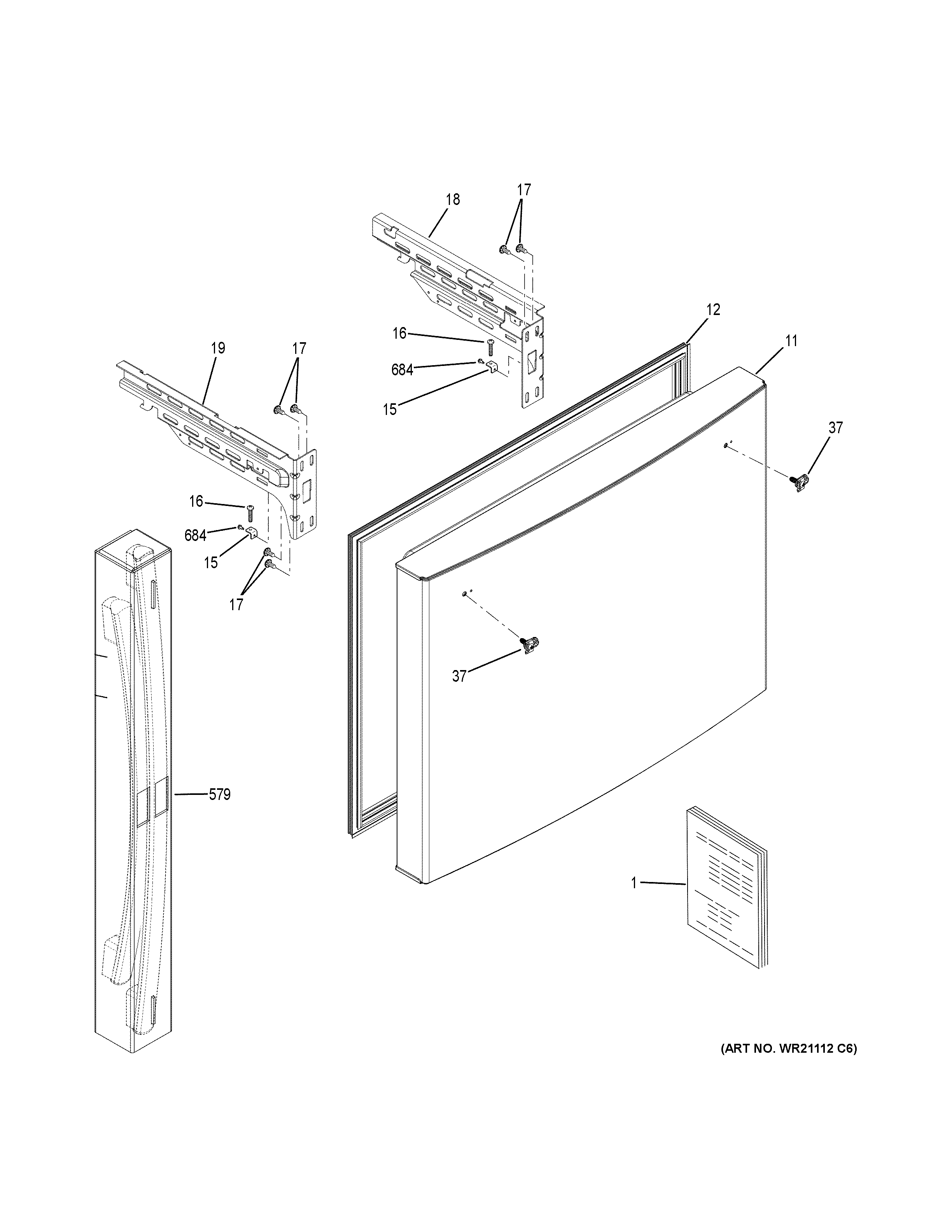

GDE21EGKGRWW FREEZER DOOR

GDE21EGKGRWW FREEZER DOOR

Written by

in

GDE21EGKGRWW FREEZER DOOR

Products

PositionProduct
1PM MINI WIRING MANUAL
1PM USE AND CARE MANUAL
11WR78X25671 GE Freezer Door Foam Assembly
12WR14X40075 GE Freezer Gasket Drawer – White
15WR02X12870 GE Refrigerator Bracket Support
16WR01X10843 GE Refrigerator 1/4-20 UNC Screw
17WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
18WR72X30559 GE Refrigerator Drawer Bracket
19WR72X30560 GE Refrigerator Drawer Bracket
37FASTNER HANDLE ASM
579WR12X25722 GE Refrigerator Pack Handle Kit Assembly WW
684WR01X10844 GE Refrigerator Screw 8-32 AB IHWS 3/8"
