GDE21EMKWRES FREEZER DOOR

GDE21EMKWRES FREEZER DOOR

Written by

in

GDE21EMKWRES FREEZER DOOR

Products

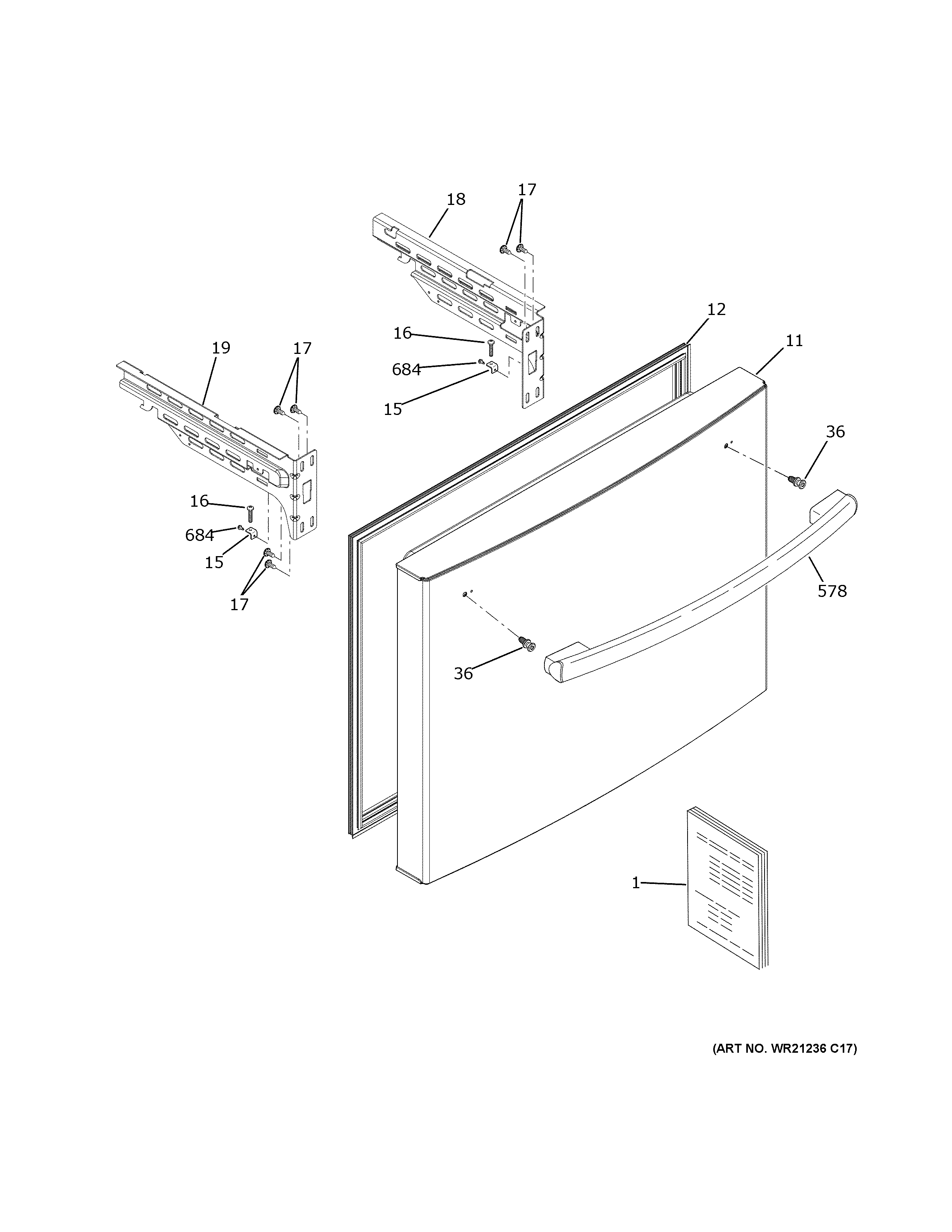

PositionProduct
1PM QUICK OWNERS MANUAL
1PM MINI MANUAL AND WIRING
11FREEZER DRAWER FRONT – SLATE
12WR14X40074 GE Refrigerator Freezer Drawer Gasket Gray
15WR02X12870 GE Refrigerator Bracket Support
16WR01X10843 GE Refrigerator 1/4-20 UNC Screw
17WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
18WR72X30559 GE Refrigerator Drawer Bracket
19WR72X30560 GE Refrigerator Drawer Bracket
36WR01X11007 GE Refrigerator Fastener Door Handle
578WR12X43488 GE Freezer Drawer Handle Assembly
684WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
