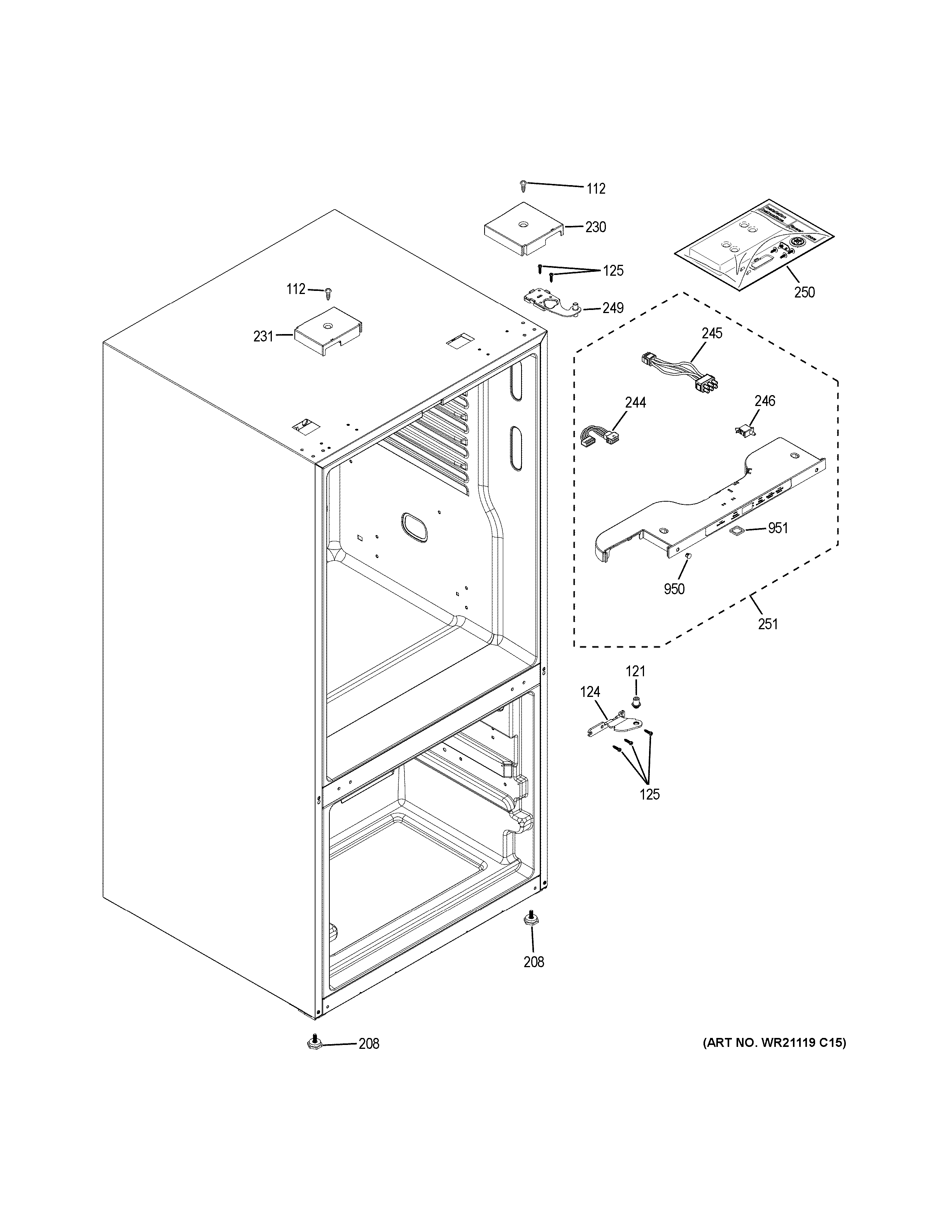

GDE21ESKBRSS CASE PARTS

GDE21ESKBRSS CASE PARTS

Written by

in

GDE21ESKBRSS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
121WR02X24905 GE Refrigerator Steel Hinge Pin
124WR13X24864 GE Refrigerator Center Hinge
125WR01X27994 GE Refrigerator Screw 12-24 HXT20 .90 S
208WR01X10850 GE Refrigerator Leveling Screw
230COVER HINGE TOP RH DG
231WR13X24847 GE Refrigerator Top Cover Hinge
244WR55X24897 GE Refrigerator Interface Harness
245HARNESS SWITCH
246FRESH FOOD DOOR LIGHT SWITCH
249WR13X24907 GE Refrigerator Top Hinge and Pin Assembly
250WR49X26394 GE Refrigerator Changeable Stainless Steel Hinge Kit
251WR55X28679 GE Refrigerator Interface Top Assembly DG
950PLUG BUTTON DG
951WR02X25397 GE HMI Spacer
