GDE21EYKFRFS FREEZER DOOR

GDE21EYKFRFS FREEZER DOOR

Written by

in

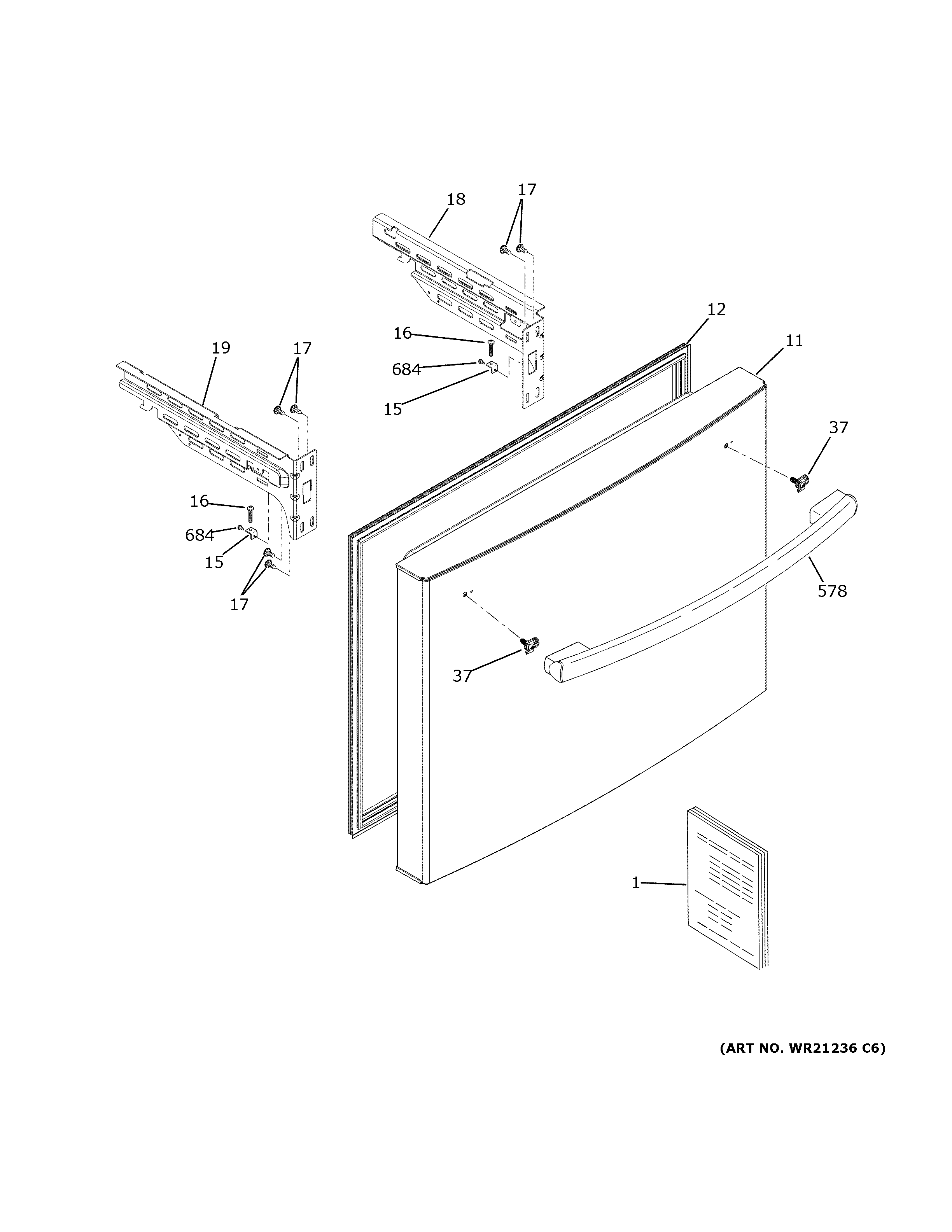

GDE21EYKFRFS FREEZER DOOR

Products

PositionProduct
1PM QUICK OWNERS MANUAL
1PM MINI MANUAL AND WIRING
11WR78X38529 GE Freezer Drawer Front
12WR14X40074 GE Refrigerator Freezer Drawer Gasket Gray
15WR02X12870 GE Refrigerator Bracket Support
16WR01X10843 GE Refrigerator 1/4-20 UNC Screw
17WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
18WR72X30559 GE Refrigerator Drawer Bracket
19WR72X30560 GE Refrigerator Drawer Bracket
37FASTNER HANDLE ASM
578WR12X37505 GE Refrigerator Stainless Steel Freezer Door Handle
684WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
