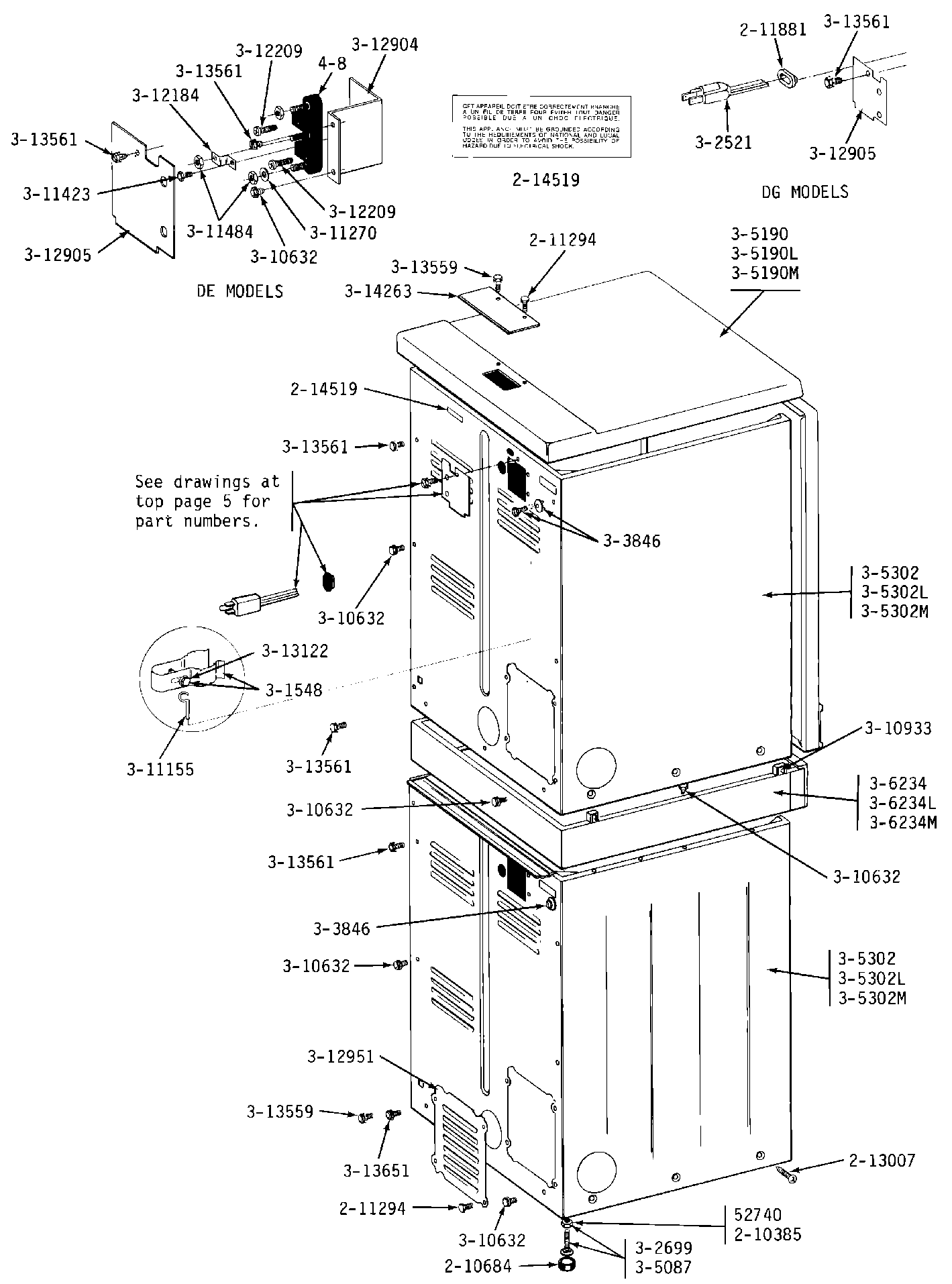

GDE23CD 02 – REAR VIEW

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY 314663
001	WP62739 Whirlpool Nut
002	WP210385 Whirlpool Lock Nut
003	WP210684 Whirlpool Dishwasher Leveling Leg Pad
004	WP90767 Whirlpool Screw
005	213007 Whirlpool Screw #12
006	INSTRUCTION LABEL
007	MAY 301548
008	LEG, ADJUSTABLE (W/NUT)—S
010	MAY Y305087
011	MAY Y305190
020	MAY Y310632
021	MAY 310933
022	WP311155 Whirlpool Wire Assembly
023	PART NOT USED
024	WP112432 Whirlpool Nut Assembly
025	PART NOT USED
026	SCREW, No.10-24 X 3/4 INCH—–O
027	PART NOT USED
028	MAY Y312905
029	MAY Y312951
030	MAY 313122
031	MAY Y313559
032	MAY Y313561
035	PART NOT USED
