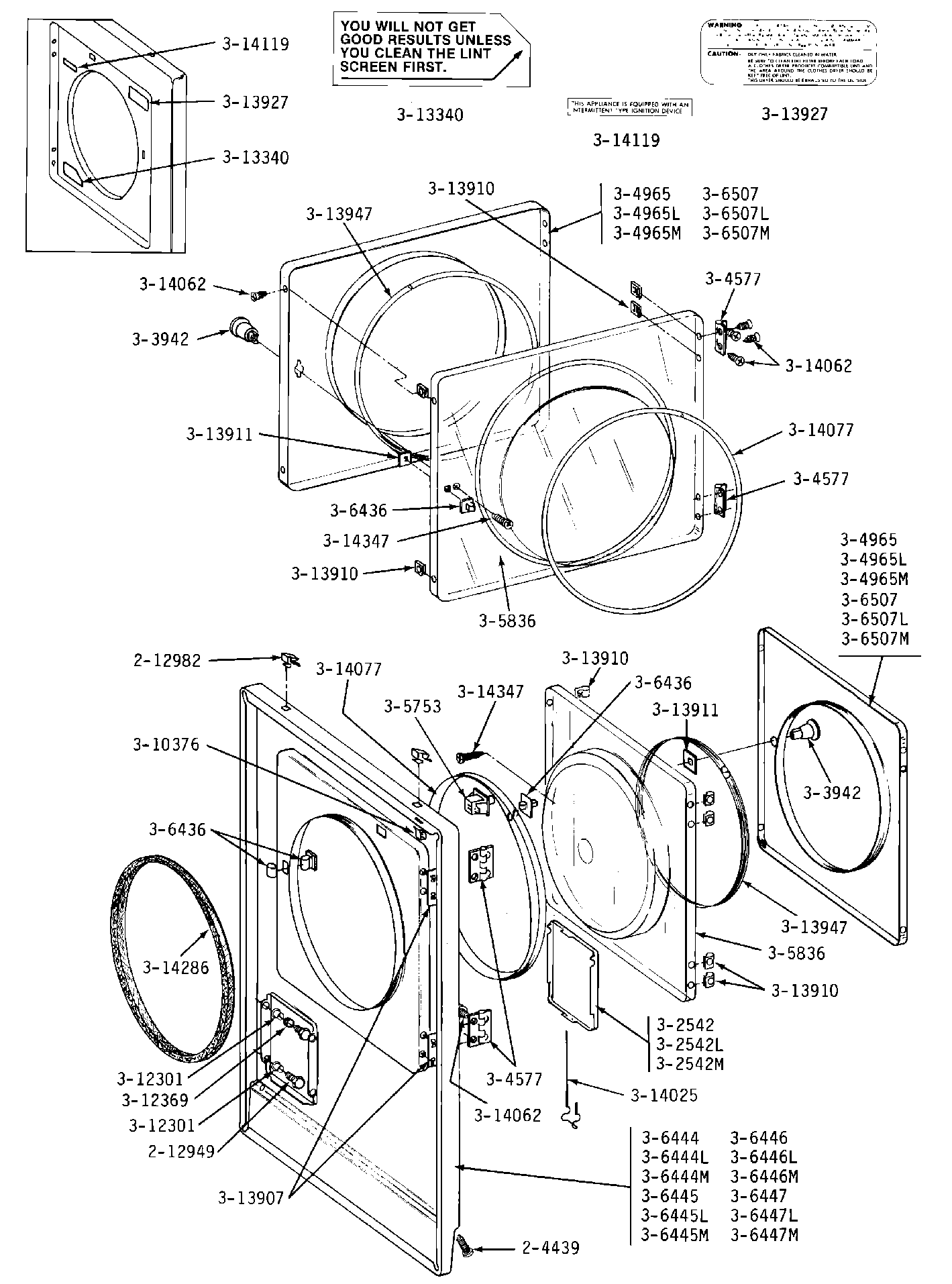

GDE23CD 04 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
001	SCREW & FSTNER ASSY (FT. PNL)
003	MAY 212982
008	MAY Y304577
009	MAY 304965
012	W10169313 Whirlpool Door Switch Kit
014	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
030	MAY Y310376
033	LABEL, LINT SCREEN INSTR.
034	MAY Y313907
035	CLIP, DOOR LINER
036	MAY Y313911
037	MAY Y313927
038	MAY Y313947
041	MAY 314077
