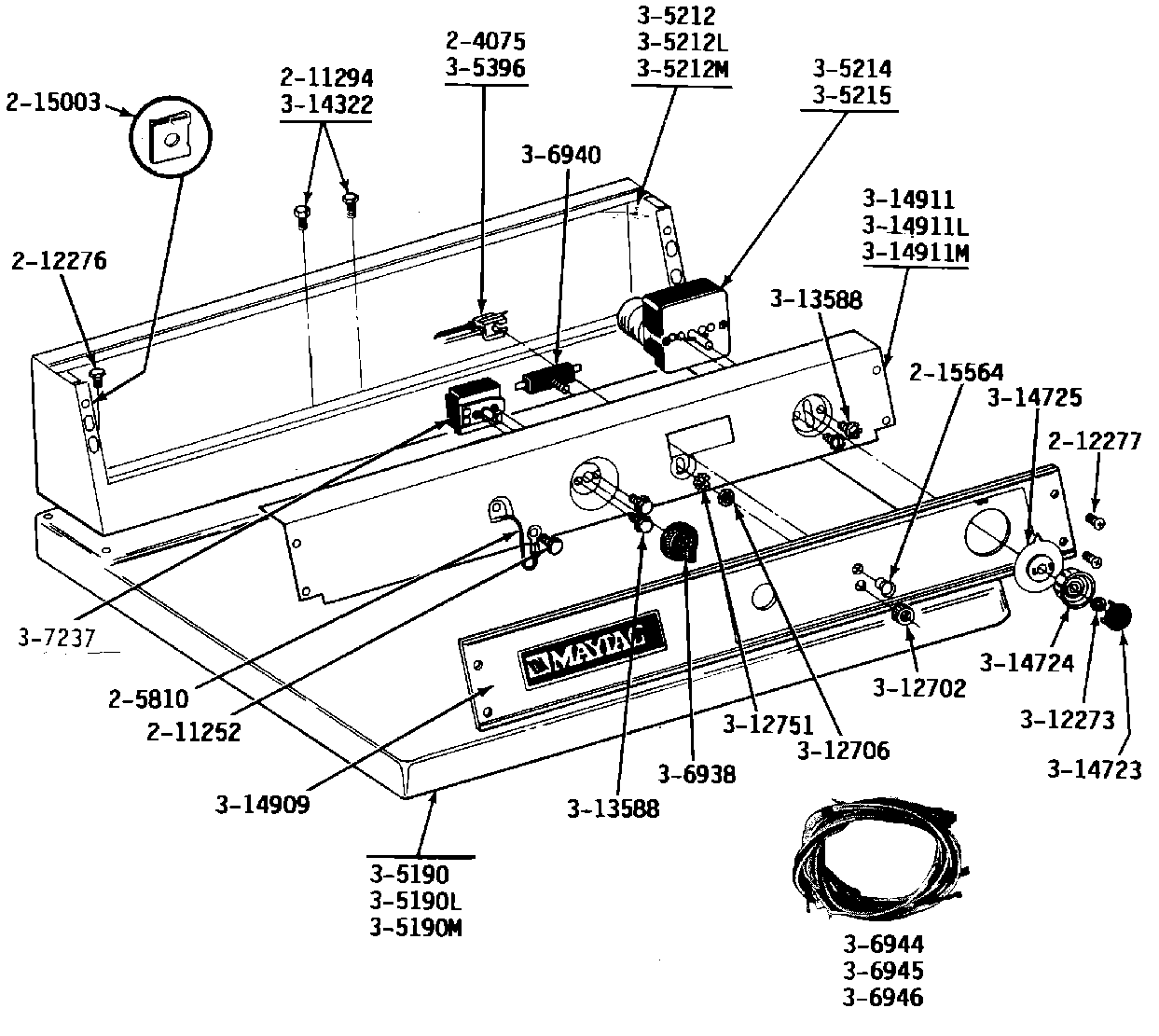

GDE24CA 02 – CA CONTROL PANEL

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
001	LIGHT, INDICATOR
002	MAY 205810
003	WP489399 Whirlpool Refrigerator Screw
004	WP90767 Whirlpool Screw
005	MAY 212276
006	WP1163283 Whirlpool Air Conditioner Screw
007	MAY 215003
008	WP215564 Whirlpool Indicator Lens
009	MAY Y305190
015	MAY 305214
016	TIMER
017	MAY Y305396
018	MAY 306938
019	WPW10327105 Whirlpool Cycle Switch
020	WPW10149462 Whirlpool Push-to-Start Switch
024	W10155650 Whirlpool Nut
025	MAY Y312702
026	MAY Y312706
027	WPW10139799 Whirlpool Washer
028	WP488234 Whirlpool Air Conditioner Screw
029	MAY Y314322
030	WPW10133501 Whirlpool Cap
032	MAY 314725
033	CONTROL PANEL COMMERCIAL DRYER
