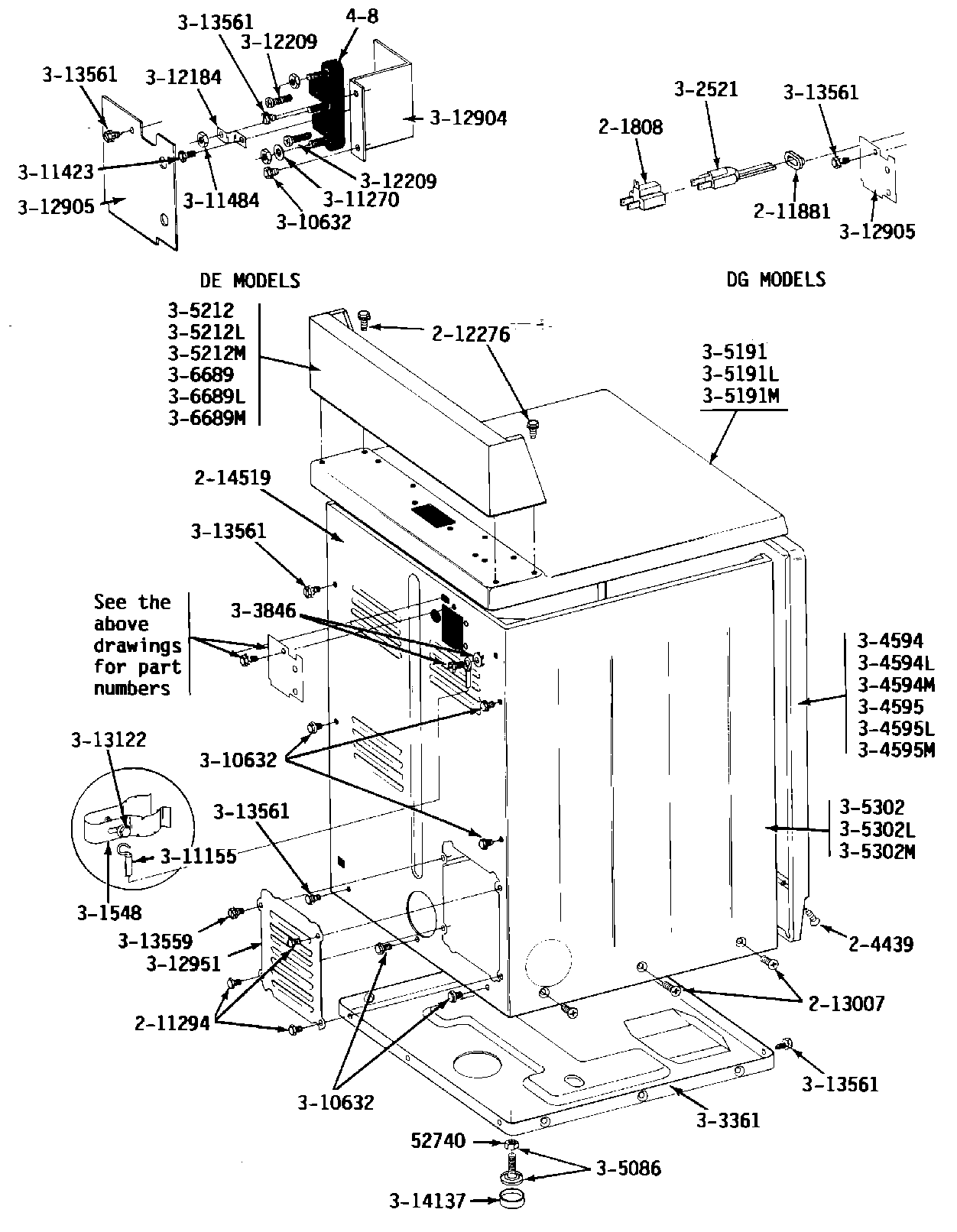

GDE24CA 03 – REAR VIEW

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY 305168
001	WP62739 Whirlpool Nut
002	MAY Y201808
003	SCREW & FSTNER ASSY (FT. PNL)
004	WP90767 Whirlpool Screw
006	MAY 212276
007	213007 Whirlpool Screw #12
008	INSTRUCTION LABEL
009	MAY 301548
010	MAY 302521
011	MAY Y303361
019	W10176519 Whirlpool Leveling Feet
021	MAY Y305191
033	MAY Y310632
034	WP311155 Whirlpool Wire Assembly
035	WPY311270 Whirlpool Washer TE
036	PART NOT USED
037	WP112432 Whirlpool Nut Assembly
038	PART NOT USED
039	SCREW, No.10-24 X 3/4 INCH—–O
040	PART NOT USED
041	MAY Y312905
042	MAY Y312951
043	MAY 313122
044	MAY Y313559
045	MAY Y313561
046	WPY314137 Whirlpool Rubber Foot
047	PART NOT USED
