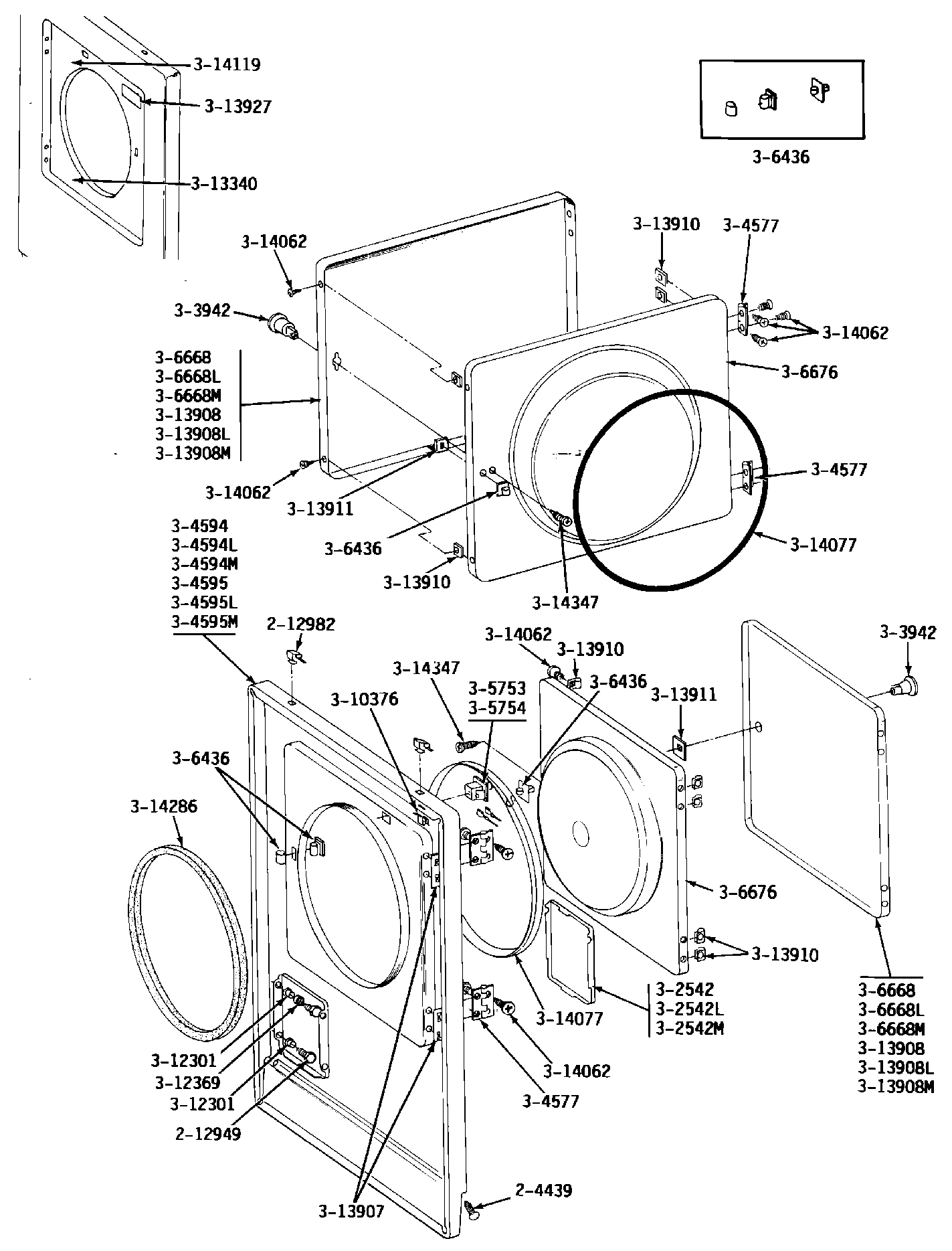

GDE24CA 04 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
NIDOWEL PIN FOR HANDLE
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
011MAY Y304577
012W10169313 Whirlpool Door Switch Kit
014306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
015DOOR
019MAY Y310376
021SLEEVE, ACCESS DOOR RUBBER
022LABEL, LINT SCREEN INSTR.
023MAY Y313907
024MAY Y313908
027CLIP, DOOR LINER
028MAY Y313911
029MAY Y313927
031MAY 314077
