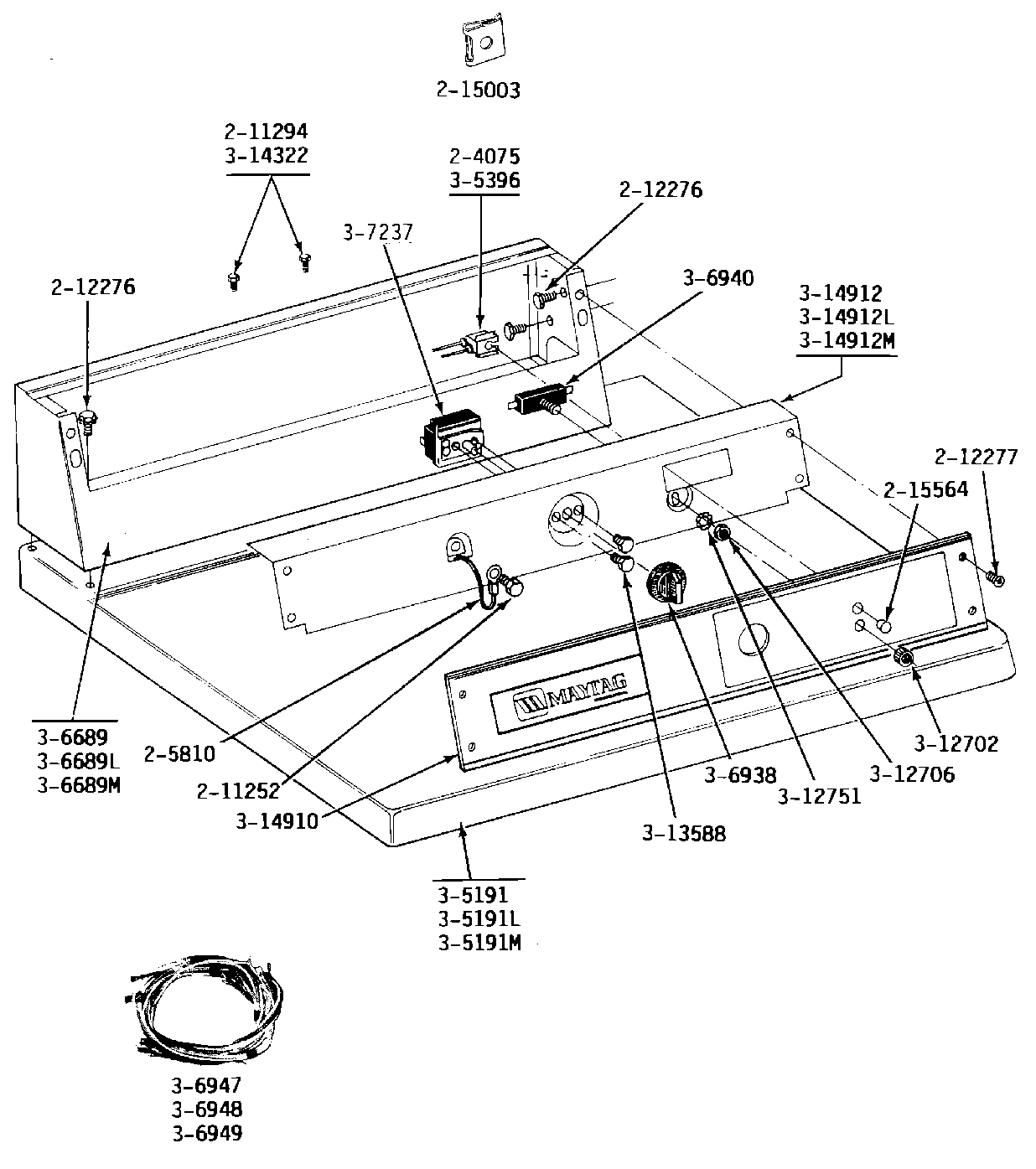

GDE24CM 01 – CM CONTROL PANEL

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
001	LIGHT, INDICATOR
002	MAY 205810
003	WP489399 Whirlpool Refrigerator Screw
004	WP90767 Whirlpool Screw
005	MAY 212276
006	WP1163283 Whirlpool Air Conditioner Screw
007	MAY 215003
008	WP215564 Whirlpool Indicator Lens
009	MAY Y305191
012	MAY Y305396
016	MAY 306938
017	WPW10327105 Whirlpool Cycle Switch
018	WPW10149462 Whirlpool Push-to-Start Switch
022	MAY Y312702
023	MAY Y312706
024	WPW10139799 Whirlpool Washer
025	WP488234 Whirlpool Air Conditioner Screw
026	MAY Y314322
028	BACK-UP PLATE – WHITE
