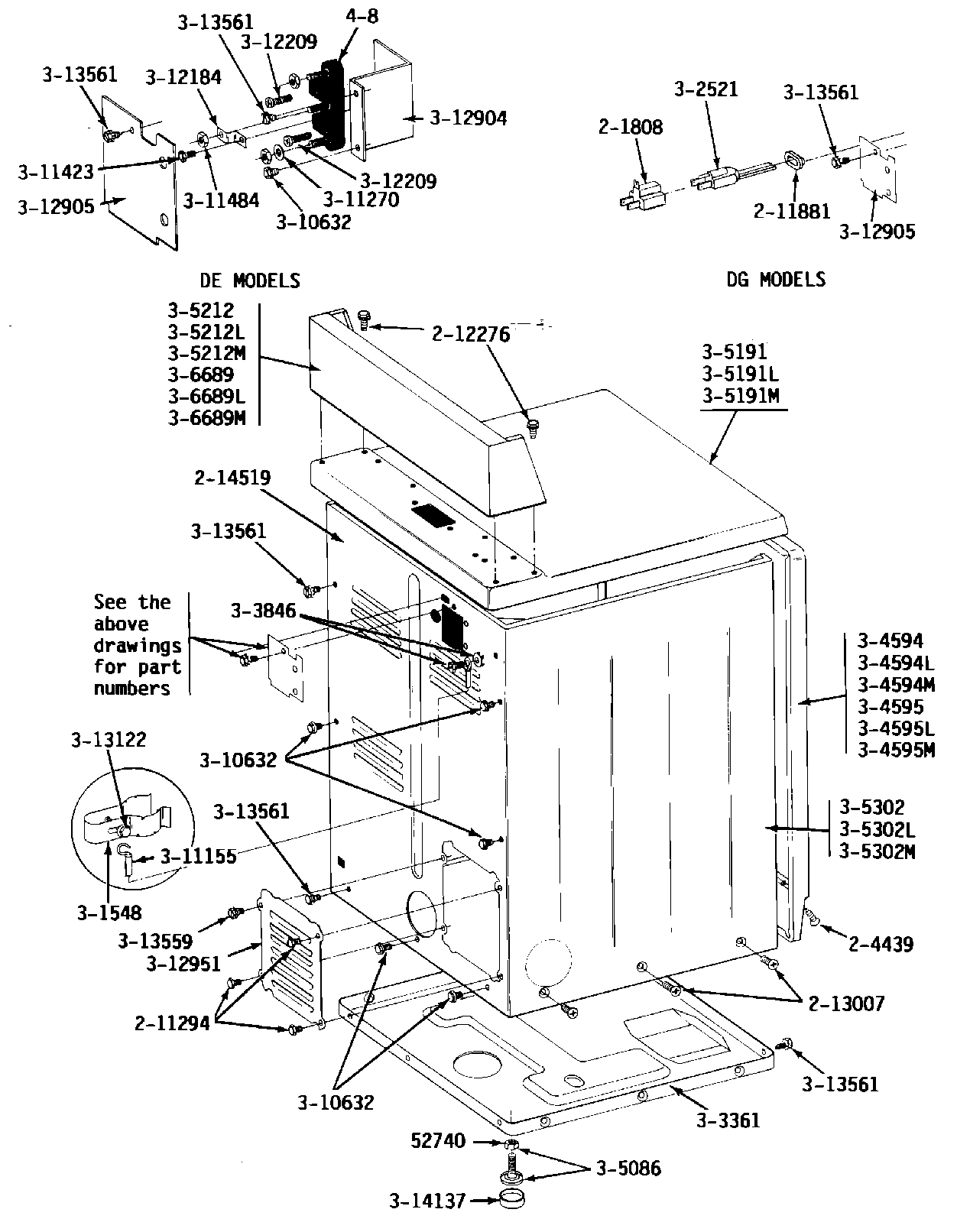

GDE24CS 05 – REAR VIEW

Products

PositionProduct
NIDOWEL PIN FOR HANDLE
NIMAY 305168
NIW10176519 Whirlpool Leveling Feet
NIWP311155 Whirlpool Wire Assembly
NIWPY311270 Whirlpool Washer TE
NIMAY Y305191
NIMAY Y310632
001WP62739 Whirlpool Nut
002MAY Y201808
003SCREW & FSTNER ASSY (FT. PNL)
004WP90767 Whirlpool Screw
005GROMMET
006MAY 212276
007213007 Whirlpool Screw #12
008INSTRUCTION LABEL
009MAY 301548
010MAY 302521
011MAY Y303361
033PART NOT USED
034WP112432 Whirlpool Nut Assembly
035PART NOT USED
036SCREW, No.10-24 X 3/4 INCH—–O
037PART NOT USED
038MAY Y312905
039MAY Y312951
040MAY 313122
041MAY Y313559
042MAY Y313561
043WPY314137 Whirlpool Rubber Foot
044PART NOT USED
