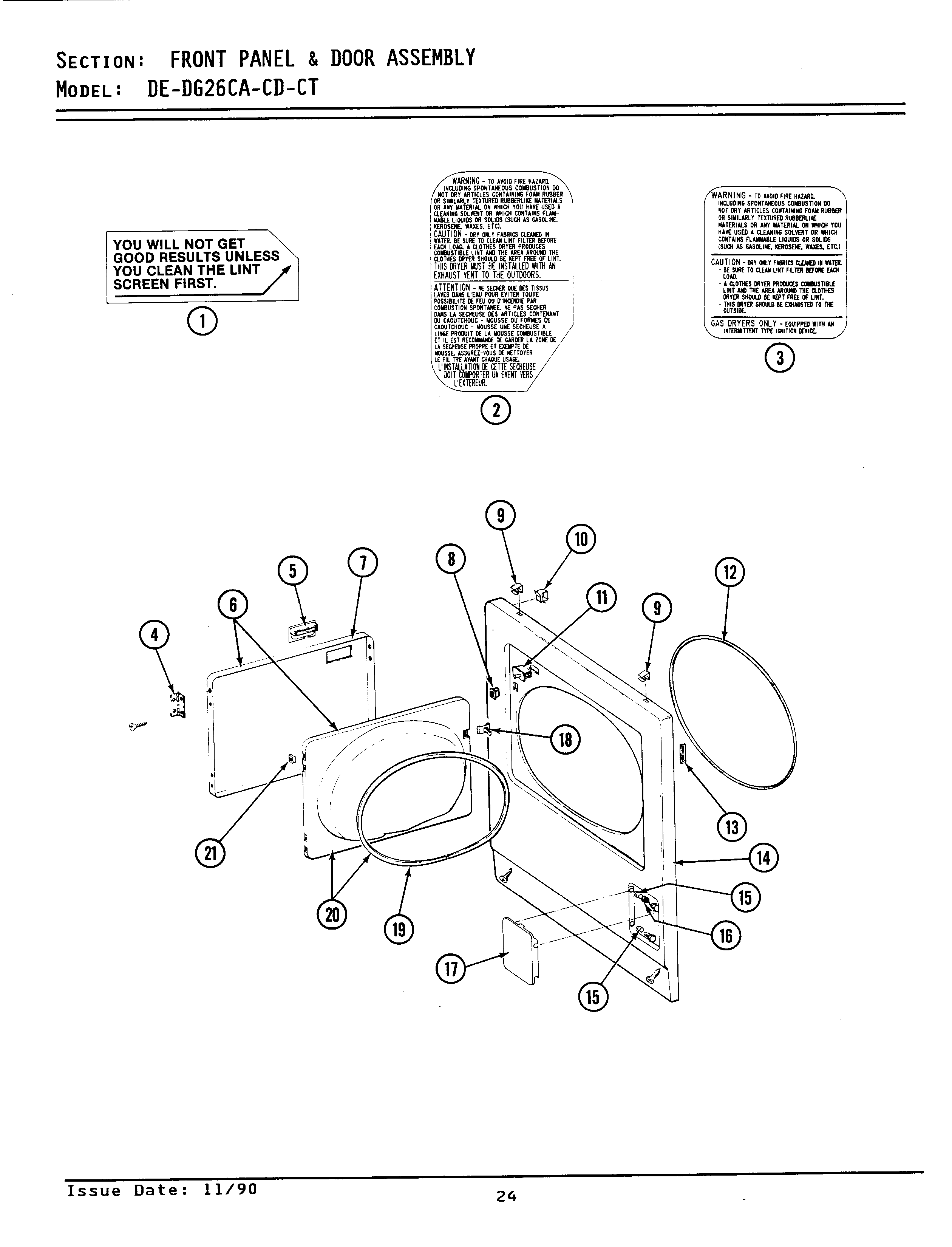

GDE26CA 04 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001LABEL, LINT SCREEN INSTR.
002MAY 314941
004MAY 307099
005SCREW
005MAY 314972
005MAY 314946
006MAY Y307111
007MAY 314966
008306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
009MAY 212982
010MAY Y310376
011W10169313 Whirlpool Door Switch Kit
012MAY 314937
013MAY Y313907
014SCREW & FSTNER ASSY (FT. PNL)
015SCREW, BUSHINGS
016SLEEVE, ACCESS DOOR RUBBER
017DOWEL PIN FOR HANDLE
018MAY 314944
018MAY 314936
019MAY 314935
020MAY 307098
021CLIP, DOOR LINER
