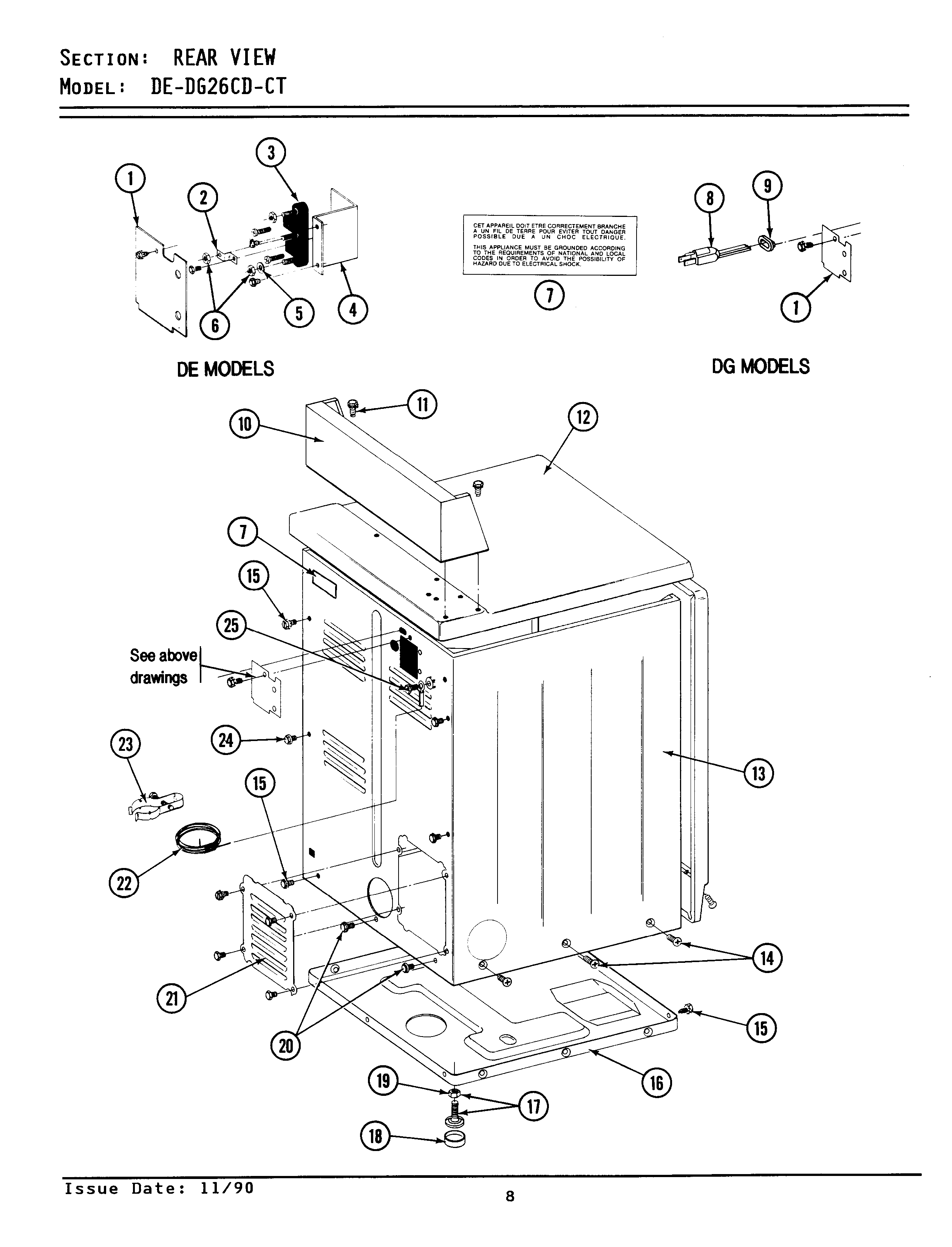

GDE26CD 02 – REAR VIEW – CD/CT MODELS

GDE26CD 02 – REAR VIEW – CD/CT MODELS

Written by

in

GDE26CD 02 – REAR VIEW – CD/CT MODELS

Products

PositionProduct
001MAY Y312905
002PART NOT USED
002PART NOT USED
003PART NOT USED
003SCREW, No.10-24 X 3/4 INCH—–O
004PART NOT USED
005WPY311270 Whirlpool Washer TE
006WP112432 Whirlpool Nut Assembly
007INSTRUCTION LABEL
008MAY 305168
009GROMMET
011MAY 212276
012MAY 307105
014213007 Whirlpool Screw #12
015MAY Y313561
016MAY Y303361
017W10176519 Whirlpool Leveling Feet
018WPY314137 Whirlpool Rubber Foot
019WP62739 Whirlpool Nut
021WP90767 Whirlpool Screw
021MAY Y312951
021MAY Y313559
022WP311155 Whirlpool Wire Assembly
023MAY 301548
024MAY Y310632
025DOWEL PIN FOR HANDLE
