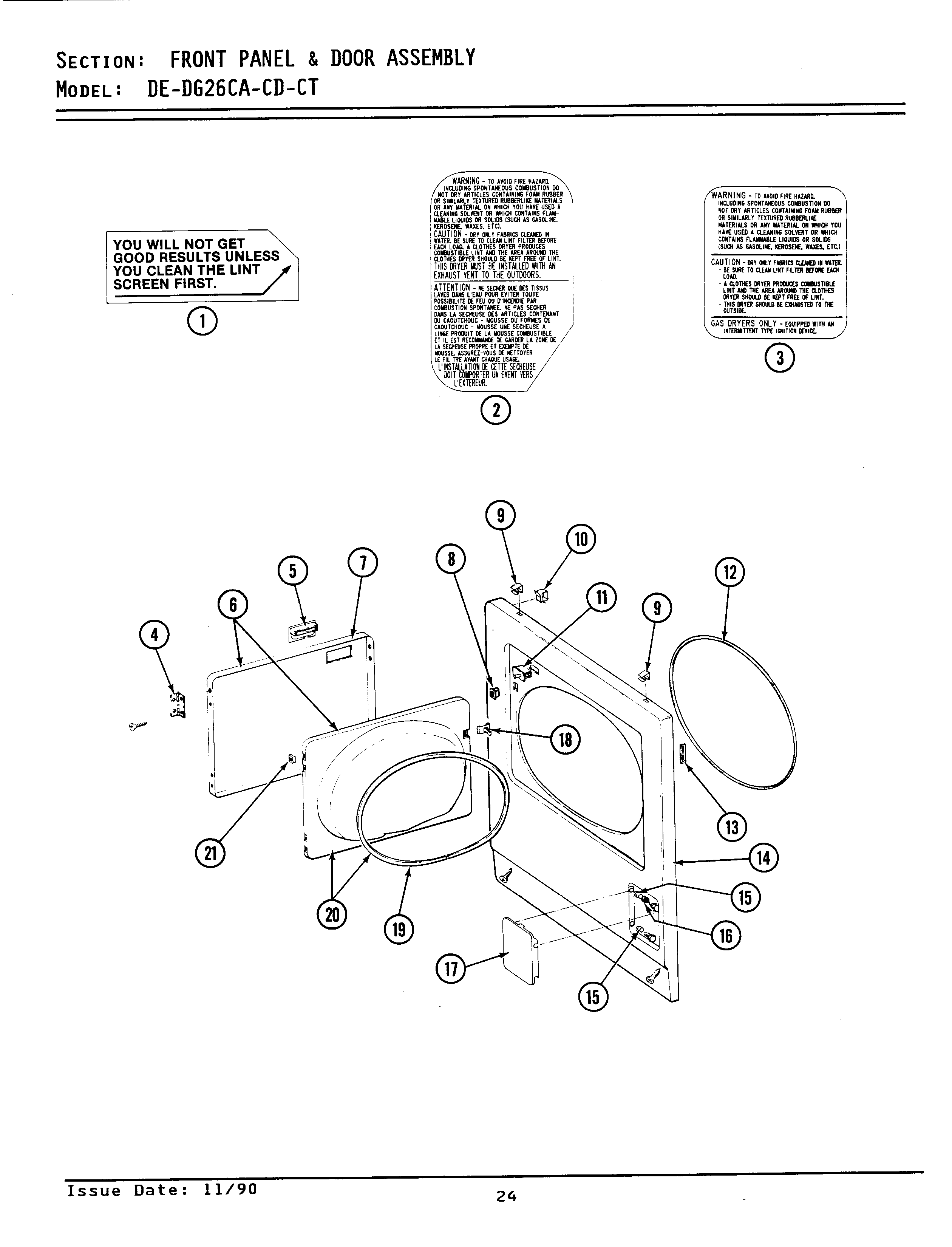

GDE26CT 06 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	LABEL, LINT SCREEN INSTR.
002	MAY 314941
004	MAY 307099
005	SCREW
005	MAY 314972
005	MAY 314946
006	MAY Y307111
007	MAY 314966
008	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
009	MAY 212982
010	MAY Y310376
011	W10169313 Whirlpool Door Switch Kit
012	MAY 314937
013	MAY Y313907
014	SCREW & FSTNER ASSY (FT. PNL)
015	SCREW, BUSHINGS
016	SLEEVE, ACCESS DOOR RUBBER
017	DOWEL PIN FOR HANDLE
018	MAY 314944
018	MAY 314936
019	MAY 314935
020	MAY 307098
021	CLIP, DOOR LINER
