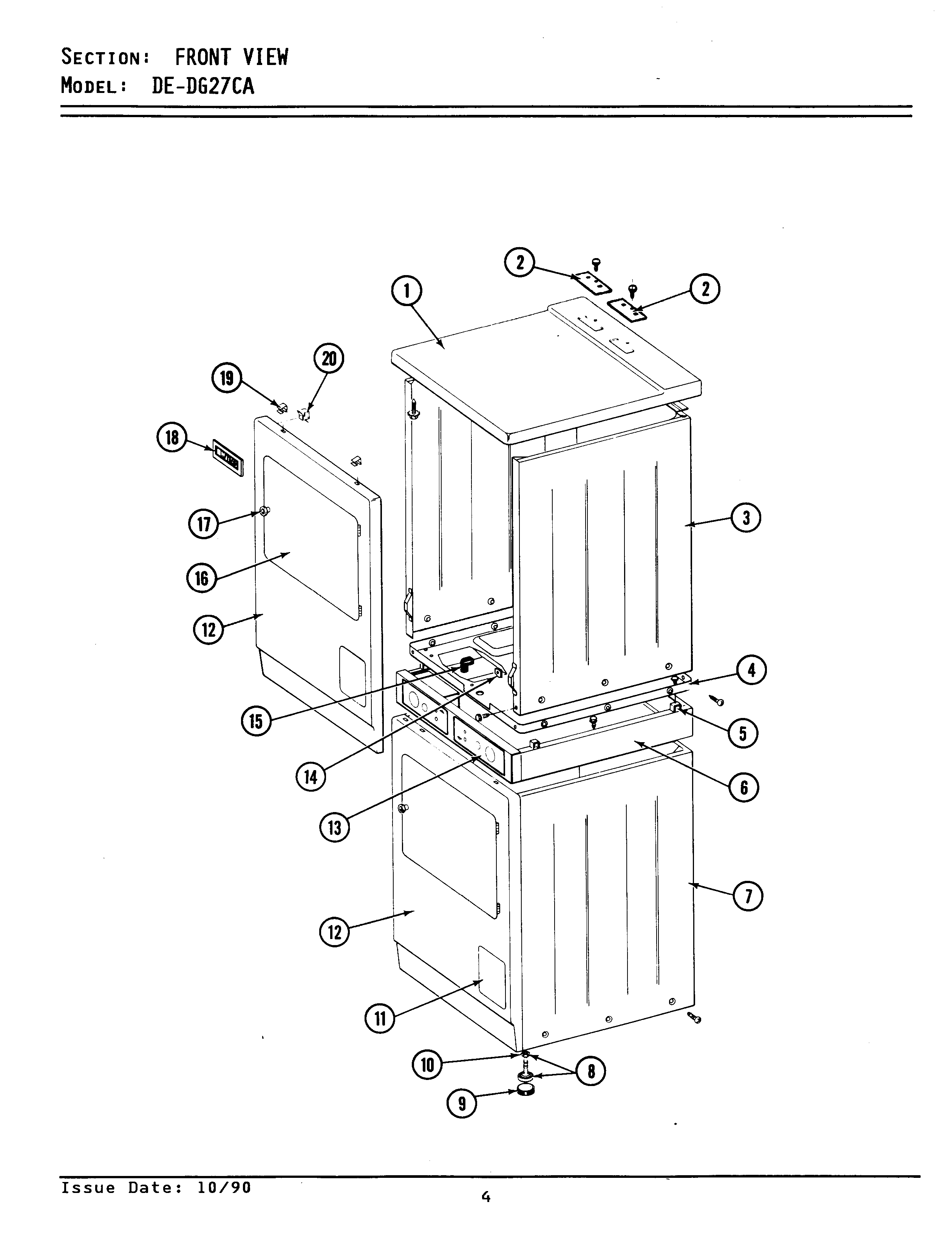

GDE27CA 01 – FRONT VIEW

Products

Position	Product
001	TOP COVER ASSY. (WHT)
002	MAY Y313559
003	MAY 204445
004	MAY Y307482
005	MAY 310933
006	MAY Y310632
007	MAY 314663
008	LEG, ADJUSTABLE (W/NUT)—S
009	WP210684 Whirlpool Dishwasher Leveling Leg Pad
010	WP210385 Whirlpool Lock Nut
013	MAY 314664
015	MAY 314522
016	MAY 308062
018	DOWEL PIN FOR HANDLE
019	MAY 212982
020	MAY Y310376
