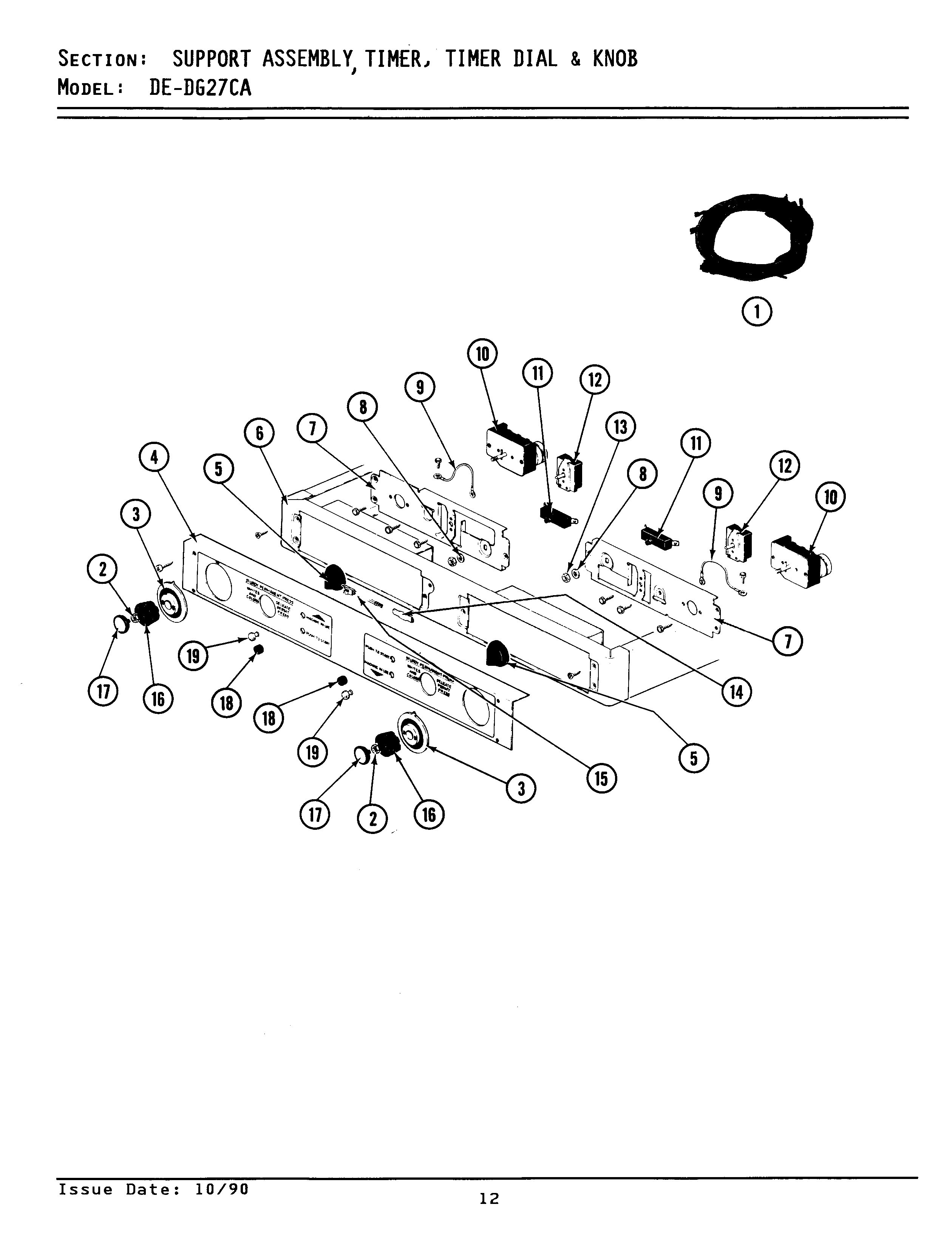

GDE27CA 04 – SUPPORT ASSY., TIMER, TIMER DIAL & KNOB

Products

Position	Product
001	MAY 307490
001	MAY 307489
002	W10155650 Whirlpool Nut
003	MAY 314725
004	MAY 314664
005	MAY 205663
006	MAY Y310632
007	DOWEL PIN FOR HANDLE
007	MAY 910186
008	WPW10139799 Whirlpool Washer
009	WPW10139210 Whirlpool Screw
009	MAY 205810
009	WP489399 Whirlpool Refrigerator Screw
010	MAY Y307296
011	WPW10149462 Whirlpool Push-to-Start Switch
012	MAY 307253
012	WP488234 Whirlpool Air Conditioner Screw
013	MAY Y312706
014	MAY Y201110
015	LIGHT, INDICATOR
017	WPW10133501 Whirlpool Cap
018	MAY Y312702
019	WP215564 Whirlpool Indicator Lens
