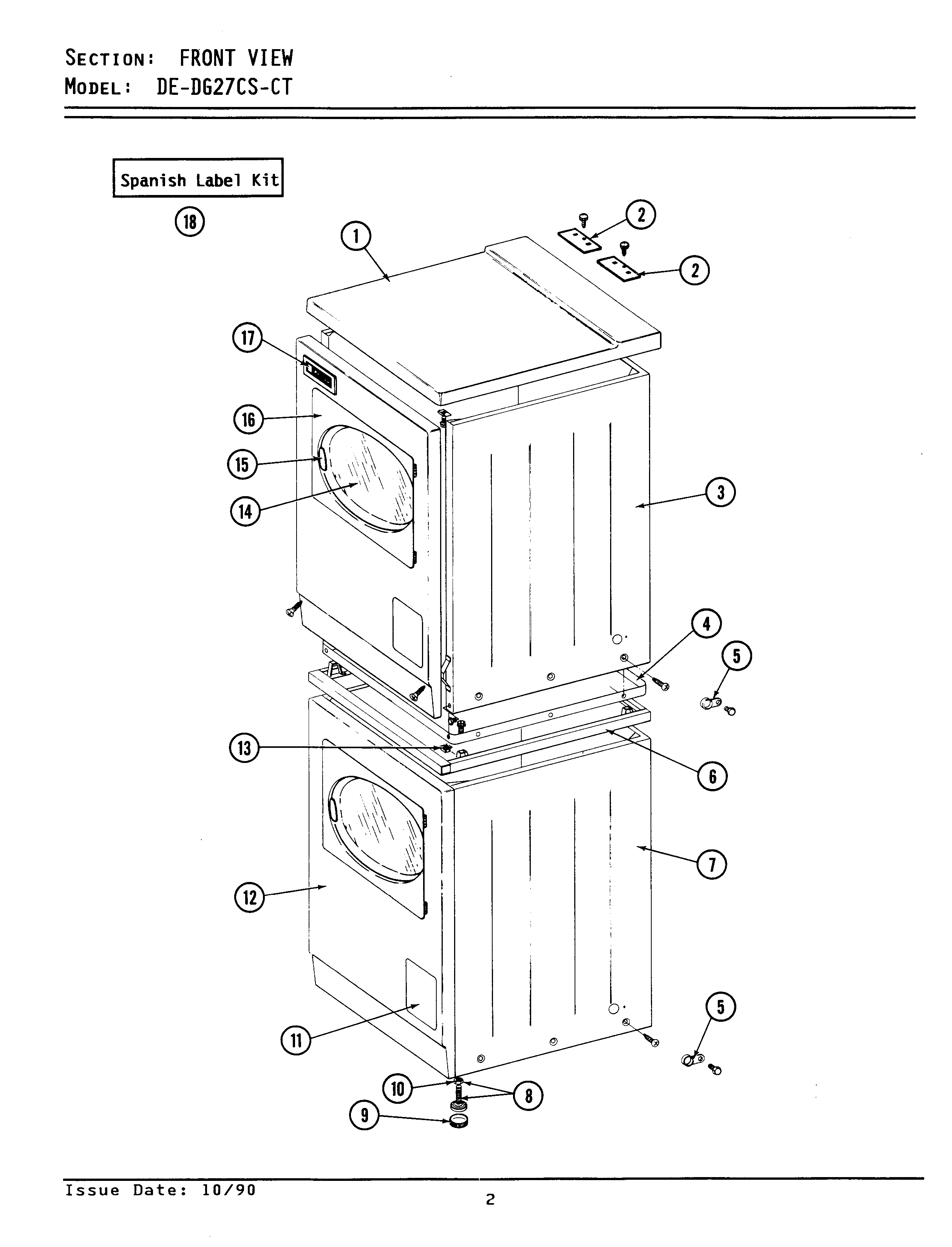

GDE27CS 07 – FRONT VIEW

Products

Position	Product
001	TOP COVER ASSY. (WHT)
002	MAY Y313559
003	MAY 204445
003	213007 Whirlpool Screw #12
004	MAY 314663
004	MAY Y303361
005	CABLE STRAP-HARNESS TO BASE
005	WPW10139210 Whirlpool Screw
007	MAY 307125
008	LEG, ADJUSTABLE (W/NUT)—S
009	WP210684 Whirlpool Dishwasher Leveling Leg Pad
010	WP210385 Whirlpool Lock Nut
012	SCREW & FSTNER ASSY (FT. PNL)
013	MAY 310933
014	MAY 308069
015	MAY 314939
015	MAY 314974
015	MAY 314975
018	DOWEL PIN FOR HANDLE
