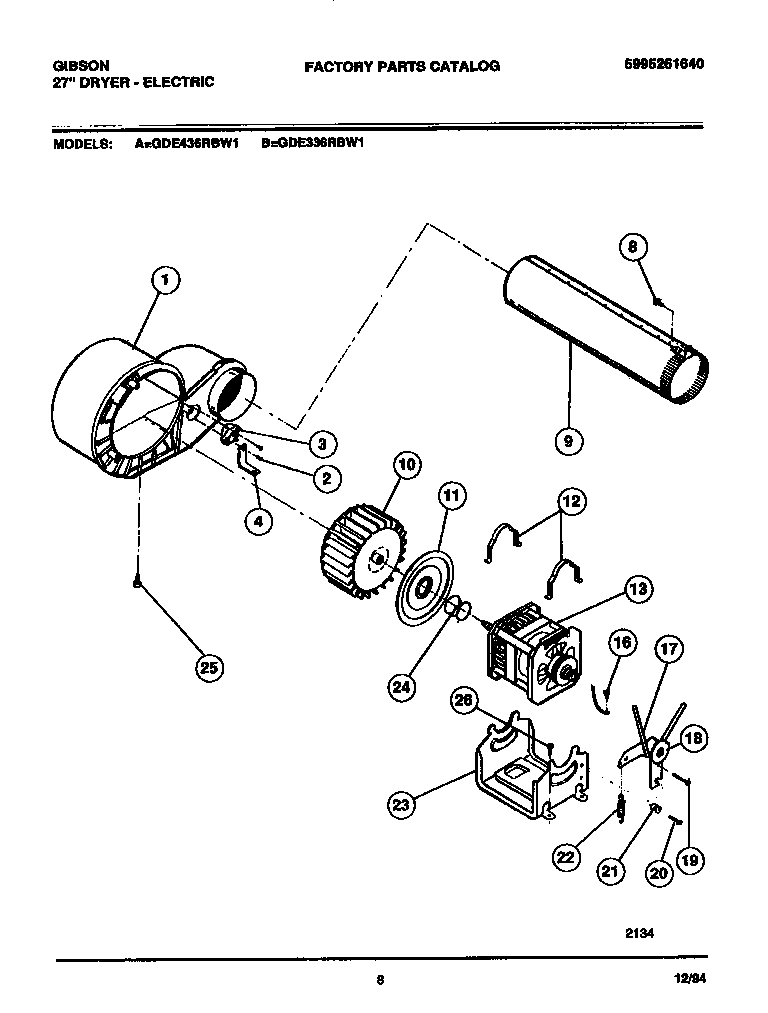

GDE336RBD1 05 – MOTOR, FAN HOUSING, EXHAUST DUCT

Products

Position	Product
1	WCI 5303270858
2	SCREW
3	131298300 Frigidaire Thermostat Control
4	WCI 5303269972
8	5303015671 Frigidaire Bracket Termination Screw
9	WCI 5303269973
10	WCI 5303281079
11	WCI 5303281080
12	WCI 5303212834
13	WCI 5303283470
16	131243700 Frigidaire Screw
17	134503600 Frigidaire Dryer Belt
18	WCI 5303212849
19	131205300 Frigidaire Screw
20	131017900 Frigidaire Screw
21	WCI 5303281076
22	5303281085 Frigidaire Spring Idler
23	WCI 131367101
24	WCI 5303281083
25	131205100 Frigidaire Screw
26	131168200 Frigidaire Dryer Screw
