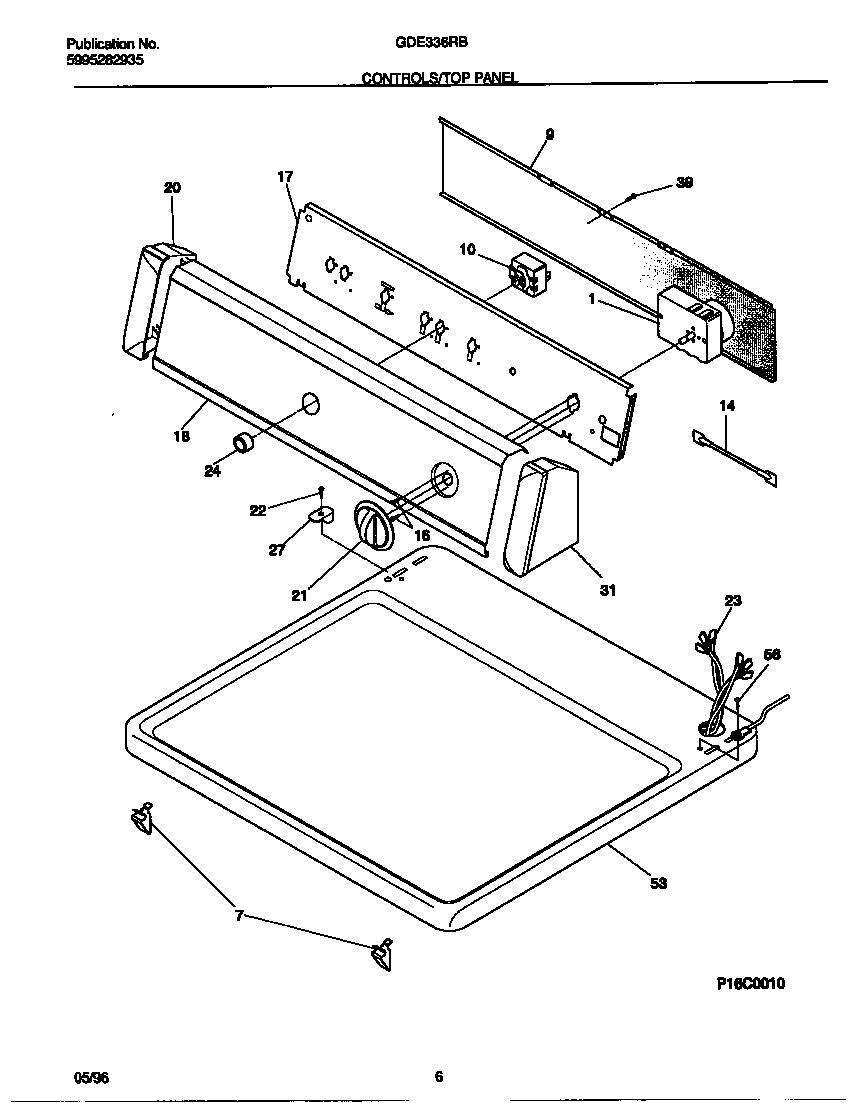

GDE336RBW2 04 – CONTROLS/TOP PANEL

GDE336RBW2 04 – CONTROLS/TOP PANEL

Written by

in

GDE336RBW2 04 – CONTROLS/TOP PANEL

Products

PositionProduct
*706015303303590 Frigidaire Dryer 4.0" Cable Tie
1TIMER-DRYER
73205821 Frigidaire Clip
9COVER-BACK
10WCI 131048000
14RESISTOR-POWER, 4.4K
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18WCI 131289500
20WCI 5303291344
21WCI 131030800
22WCI 131266300
23WCI 131568500
24KNOB-START SWITCH, BLACK
27CLIP-CONSOLE MTG
31WCI 5303291352
39131205100 Frigidaire Screw
53WCI 131130402
56131243800 Frigidaire Screw
