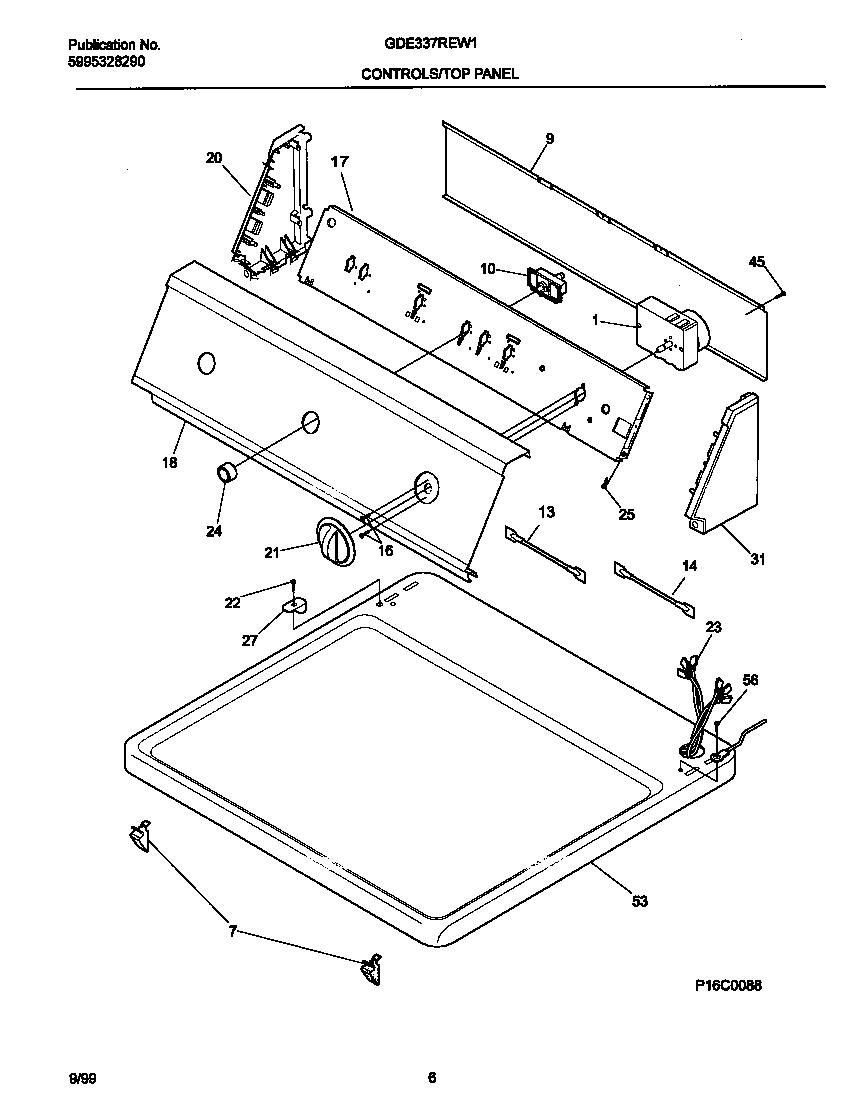

GDE337REW1 04 – CONTROL PANEL

GDE337REW1 04 – CONTROL PANEL

Written by

in

GDE337REW1 04 – CONTROL PANEL

Products

PositionProduct
*68245WCI 131827600
1131062300 Frigidaire Timer
73205821 Frigidaire Clip
9COVER-BACK
10131469000 Frigidaire Switch-Push/Start P1
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
16218359202 Frigidaire Refrigerator Screw
17WCI 131728900
18WCI 131508900
20WCI 5303291344
21WCI 131118902
22WCI 131266300
23WCI 131844800
24KNOB-START SWITCH, BLACK
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 5303291352
45131205100 Frigidaire Screw
53WCI 131601318
56131243800 Frigidaire Screw
