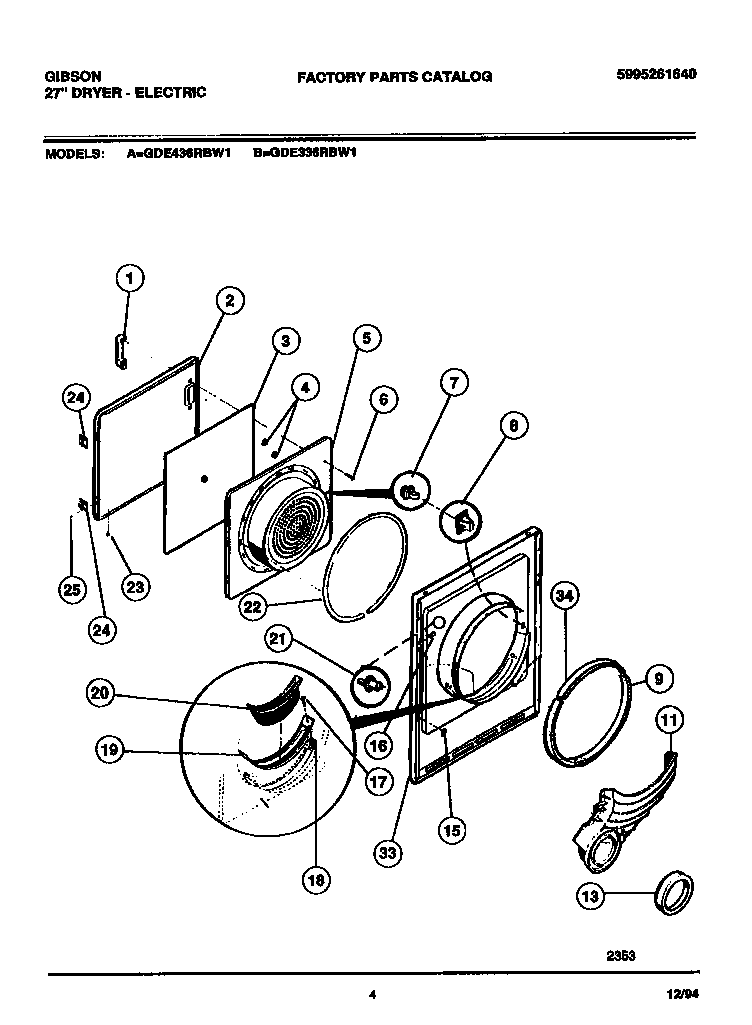

GDE436RBD1 03 – DOOR, FRONT PANEL, LINT FILTER

Products

Position	Product
1A	WCI 131194200
2A	WCI 5303299162
3	SHIELD, HEAT
4	WCI 3201205
5A	PANEL-I.D. ALMD
6	WCI 5303281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	WCI 5303281049
11	DUCT-AIR
13	134417000 Frigidaire Seal
15	CLIP GUIDE (4)
16	WCI 131063700
17	131420300 Frigidaire Screw
18	CLIP
20	TRAP-LINT
21	SWITCH-DOOR
22	GASKET, DOOR
24	HINGE, DOOR (2)
25	134156200 Frigidaire Screw
33A	WCI 5303307421
34	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
34B	WCI 13197001
