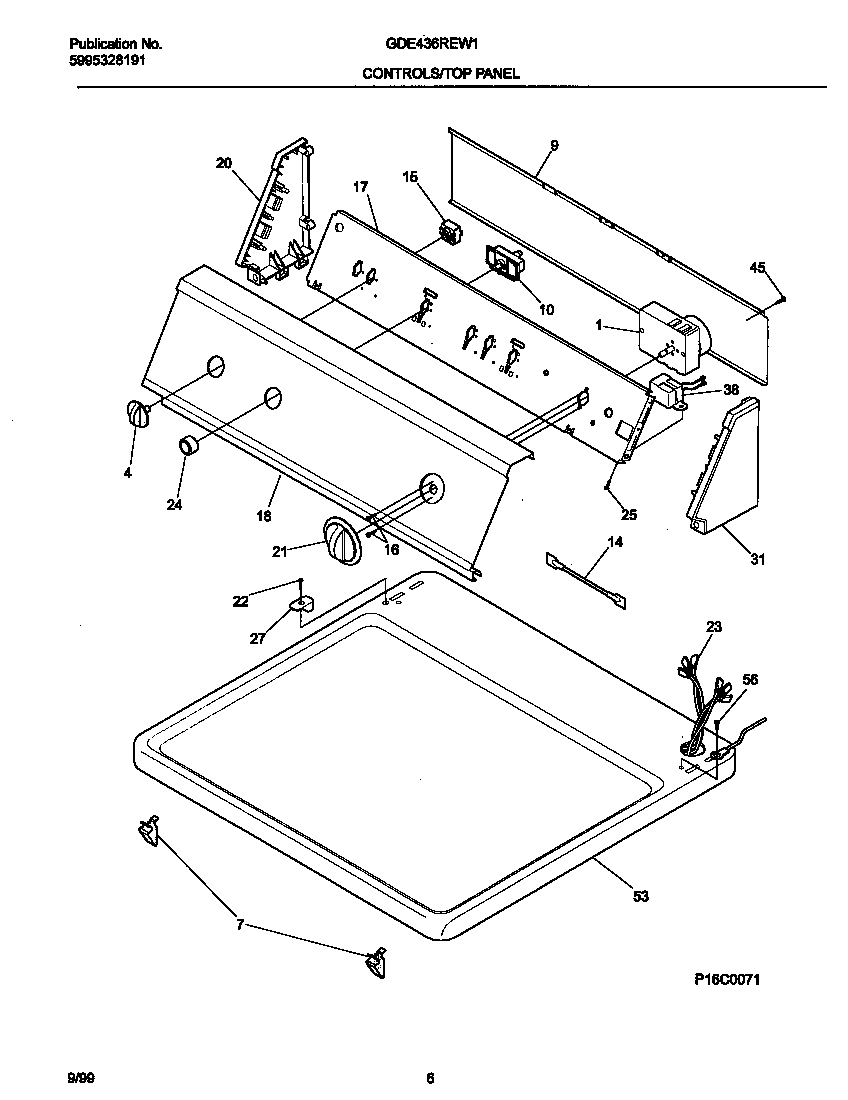

GDE436REW1 04 – CONTROL PANEL

Products

Position	Product
*35365	WCI 131827600
1	5303297177 Frigidaire Dryer Control Timer
4	WCI 131118602
7	3205821 Frigidaire Clip
9	COVER-BACK
10	131469000 Frigidaire Switch-Push/Start P1
14	RESISTOR-POWER, 4.4K
15	WCI 131259200
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 131509000
20	WCI 5303291344
21	WCI 131118902
22	WCI 131266300
23	WCI 131845100
24	KNOB-START SWITCH, BLACK
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 5303291352
38	WCI 5303210285
45	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
