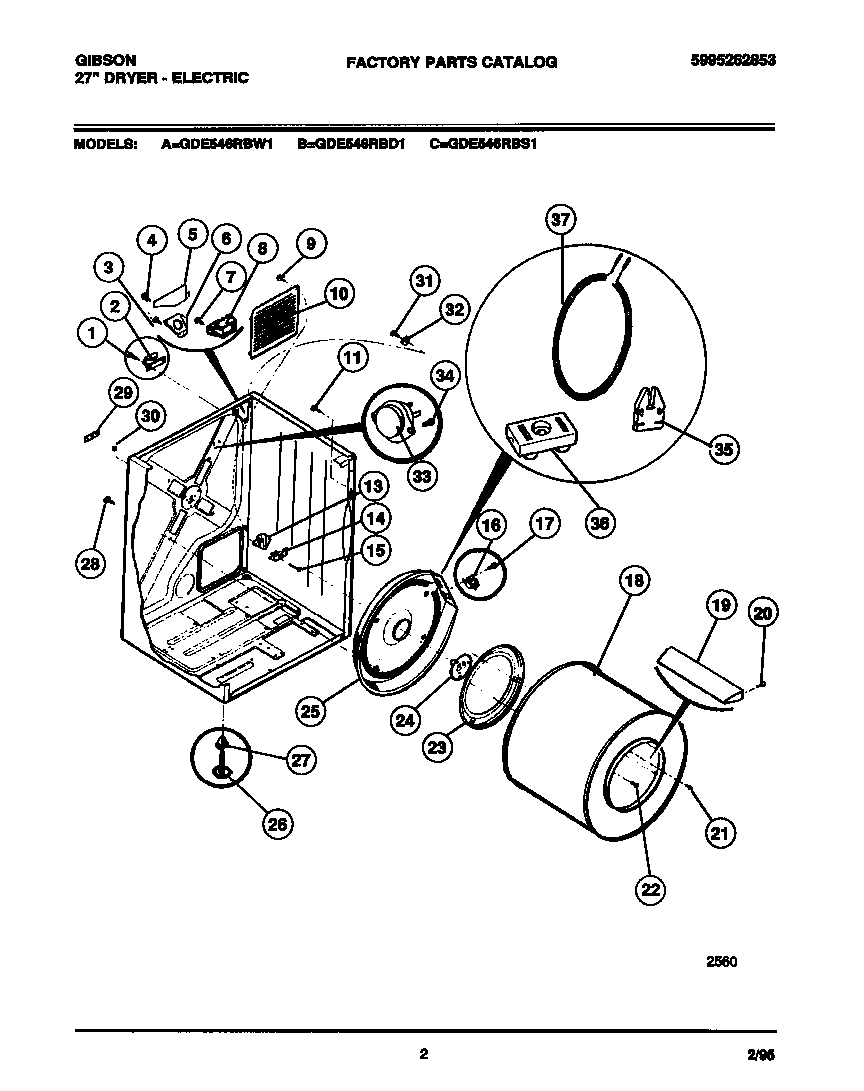

GDE546RBD1 02 – CABINET, DRUM, HEATER ASMY.

GDE546RBD1 02 – CABINET, DRUM, HEATER ASMY.

Written by

in

GDE546RBD1 02 – CABINET, DRUM, HEATER ASMY.

Products

PositionProduct
*55000CLIP-CAB. FRONT BTM
*55001DRYING RACK-OPTIONAL
2BRACKET-HINGE
5WCI 5303211428
6WCI 3281040
7131205300 Frigidaire Screw
8134037400 Frigidaire Block
95303015671 Frigidaire Bracket Termination Screw
10PLATE-COVER
13131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14131724301 Frigidaire Dryer Drum Bearing Bracket
15131205400 Frigidaire Screw
16WCI 5303281113
17131243700 Frigidaire Screw
18WCI 3201199
19137552900 Frigidaire Vane
20WCI 131205200
21131168200 Frigidaire Dryer Screw
22SCREW (3) (PART OF REAR BEARING KIT.)
233204254 Frigidaire Baffle Assembly
24131777700 Frigidaire Dryer Bearing Drum
25HEATER ASSY W/HSNG
26BOLT-FOOT (4)
27WCI 3201202
28SCREW
295303281020 Frigidaire Ball Clip
305303281019 Frigidaire Ball Assembly
31134154100 Frigidaire Screw 10-32 x 0.375 Co
33134120900 Frigidaire Dryer Limiter Thermal
34WCI 08010804
35131472100 Frigidaire Dryer Insulator Heater Coil
363202786 Frigidaire Terminal Block
37LARGE DIA COIL 5/16" TERM
