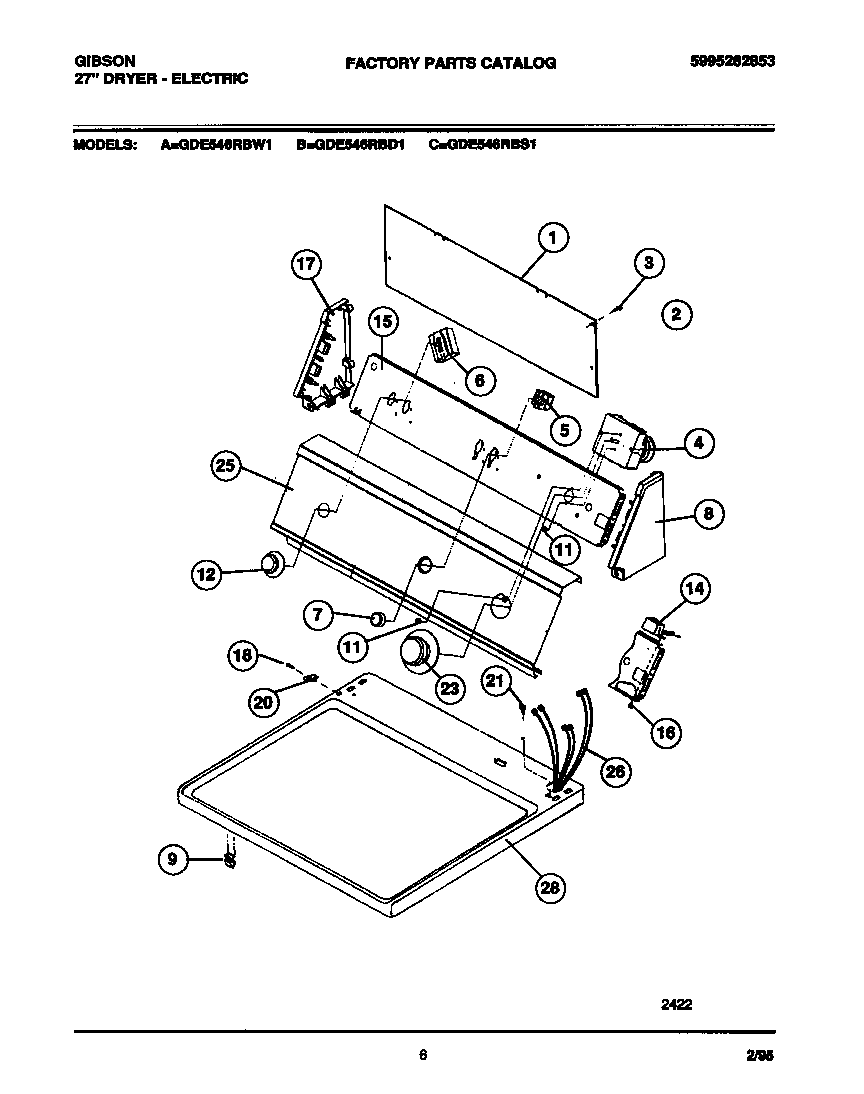

GDE546RBD1 04 – CONSOLE, CONTROLS, TOP PANEL

GDE546RBD1 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

GDE546RBD1 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1COVER-BACK
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4131719100 Frigidaire Timer Assembly
5WCI 131048000
6WCI 131048100
7KNOB-START SWITCH, BLACK
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12WCI 131032500
14WCI 5303210285
15WCI 131297306
165303015671 Frigidaire Bracket Termination Screw
17WCI 5303291344
18WCI 5303289526
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131030800
25WCI 131289700
26WCI 131235300
28WCI 5303931763
