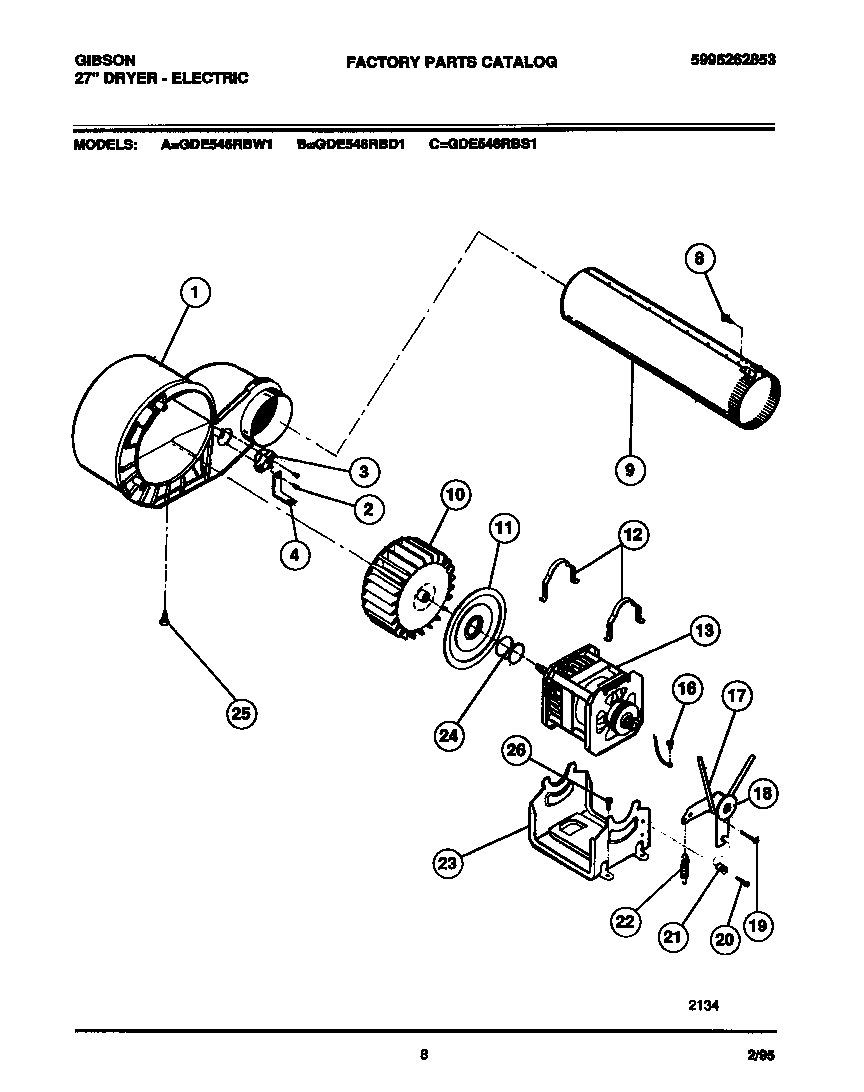

GDE546RBD1 05 – MOTOR, FAN HSG., EXHAUST DUCT

GDE546RBD1 05 – MOTOR, FAN HSG., EXHAUST DUCT

Written by

in

GDE546RBD1 05 – MOTOR, FAN HSG., EXHAUST DUCT

Products

PositionProduct
1WCI 5303270858
2SCREW
3131298300 Frigidaire Thermostat Control
4WCI 5303269972
85303015671 Frigidaire Bracket Termination Screw
9WCI 5303269973
10WCI 5303281079
11WCI 5303281080
12WCI 5303212834
13WCI 5303283470
16WCI 131234700
17134503600 Frigidaire Dryer Belt
18WCI 5303212849
19131205300 Frigidaire Screw
20131017900 Frigidaire Screw
21WCI 5303281076
225303281085 Frigidaire Spring Idler
23WCI 131367101
24WCI 5303281083
25131205100 Frigidaire Screw
26131168200 Frigidaire Dryer Screw
