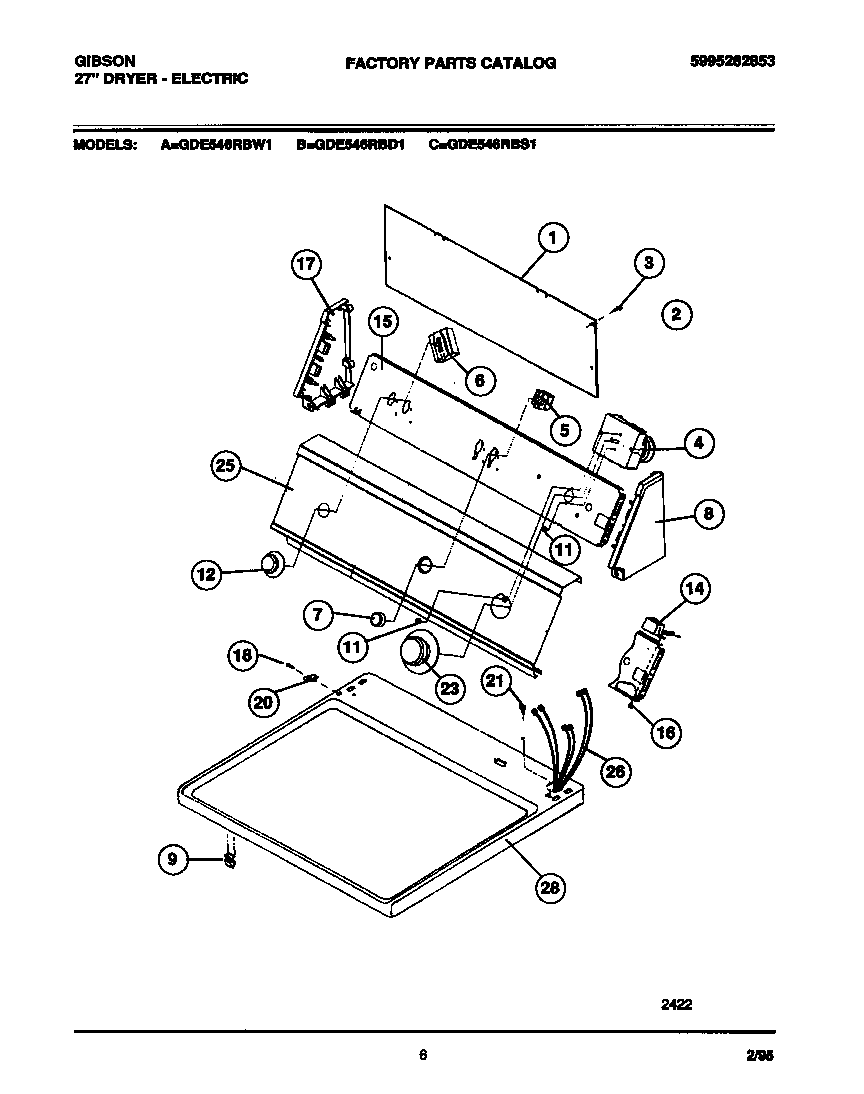

GDE546RBS1 04 – CONSOLE, CONTROLS, TOP PANEL

GDE546RBS1 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

GDE546RBS1 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
7WCI 131111501
8WCI 5303291351
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12WCI 131032501
14WCI 5303210285
15WCI 131297306
165303015671 Frigidaire Bracket Termination Screw
17WCI 5303291343
18WCI 5303297854
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131030801
25WCI 131289800
28WCI 131130402
