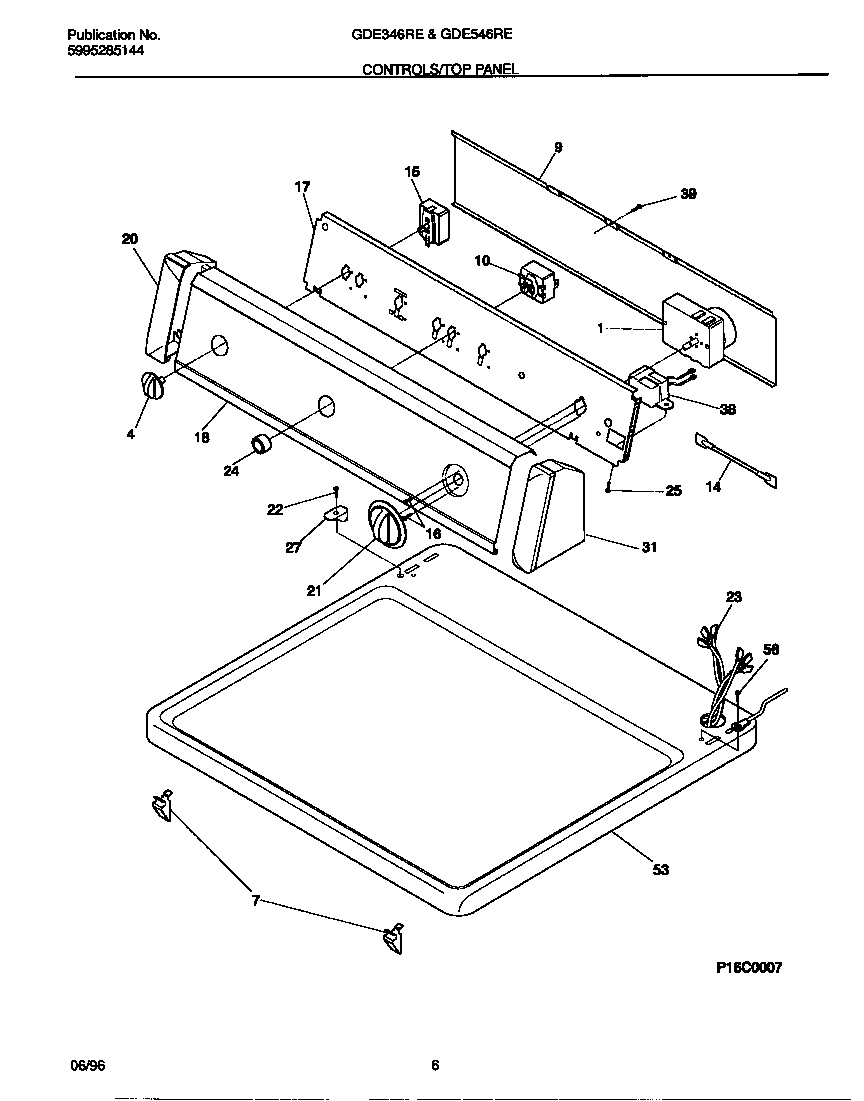

GDE546RES0 04 – CONTROLS/TOP PANEL

Products

Position	Product
*60641	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	131719100 Frigidaire Timer Assembly
4	WCI 131032501
7	3205821 Frigidaire Clip
9	COVER-BACK
10	WCI 131048000
14	RESISTOR-POWER, 4.4K
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131289800
20	WCI 5303291343
21	WCI 131030801
22	WCI 131266310
23	HARNESS
24	WCI 131111501
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 5303291351
38	WCI 5303210285
39	131205100 Frigidaire Screw
53	WCI 131391618
56	131243800 Frigidaire Screw
