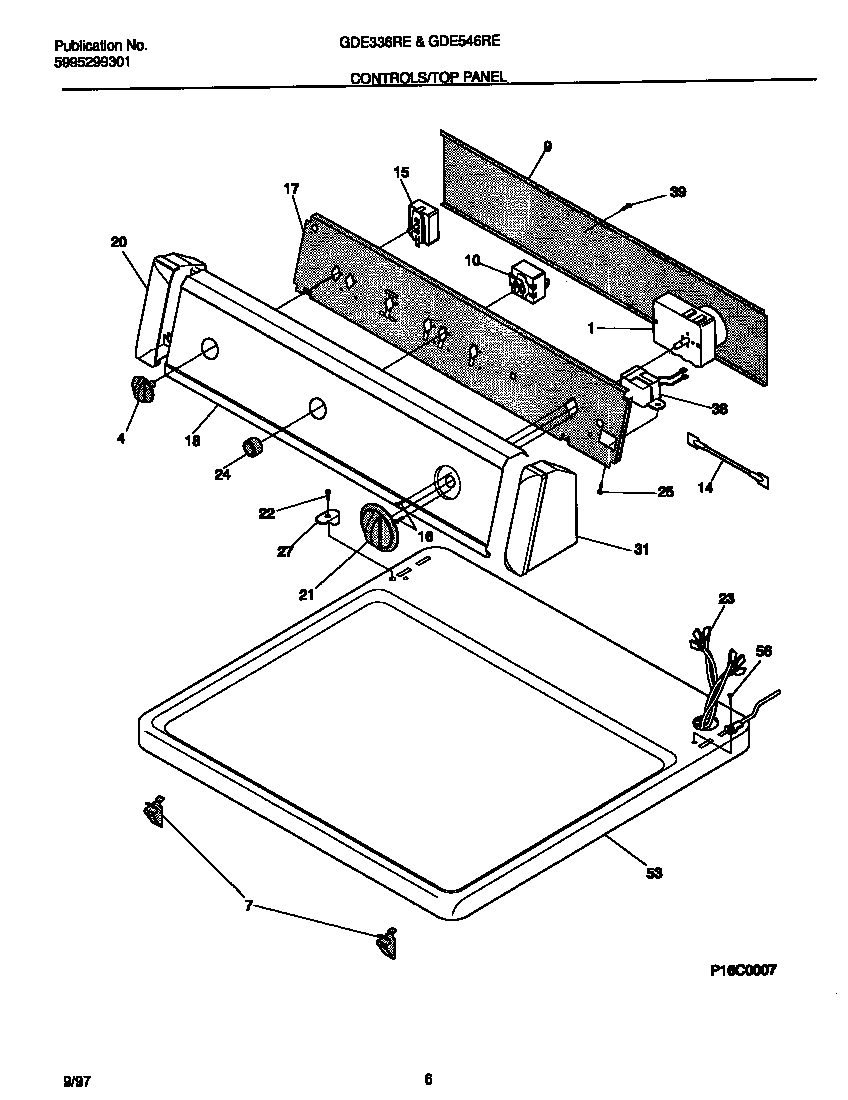

GDE546RES1 04 – CONTROLS/TOP PANEL

GDE546RES1 04 – CONTROLS/TOP PANEL

Written by

in

GDE546RES1 04 – CONTROLS/TOP PANEL

Products

PositionProduct
1131719100 Frigidaire Timer Assembly
4WCI 131032501
73205821 Frigidaire Clip
9COVER-BACK
10131469000 Frigidaire Switch-Push/Start P1
14RESISTOR-POWER, 4.4K
15WCI 131048100
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18WCI 131289800
20WCI 5303291343
21WCI 131030801
22WCI 131266310
23HARNESS
24WCI 131111501
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 5303291351
38WCI 5303210285
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
