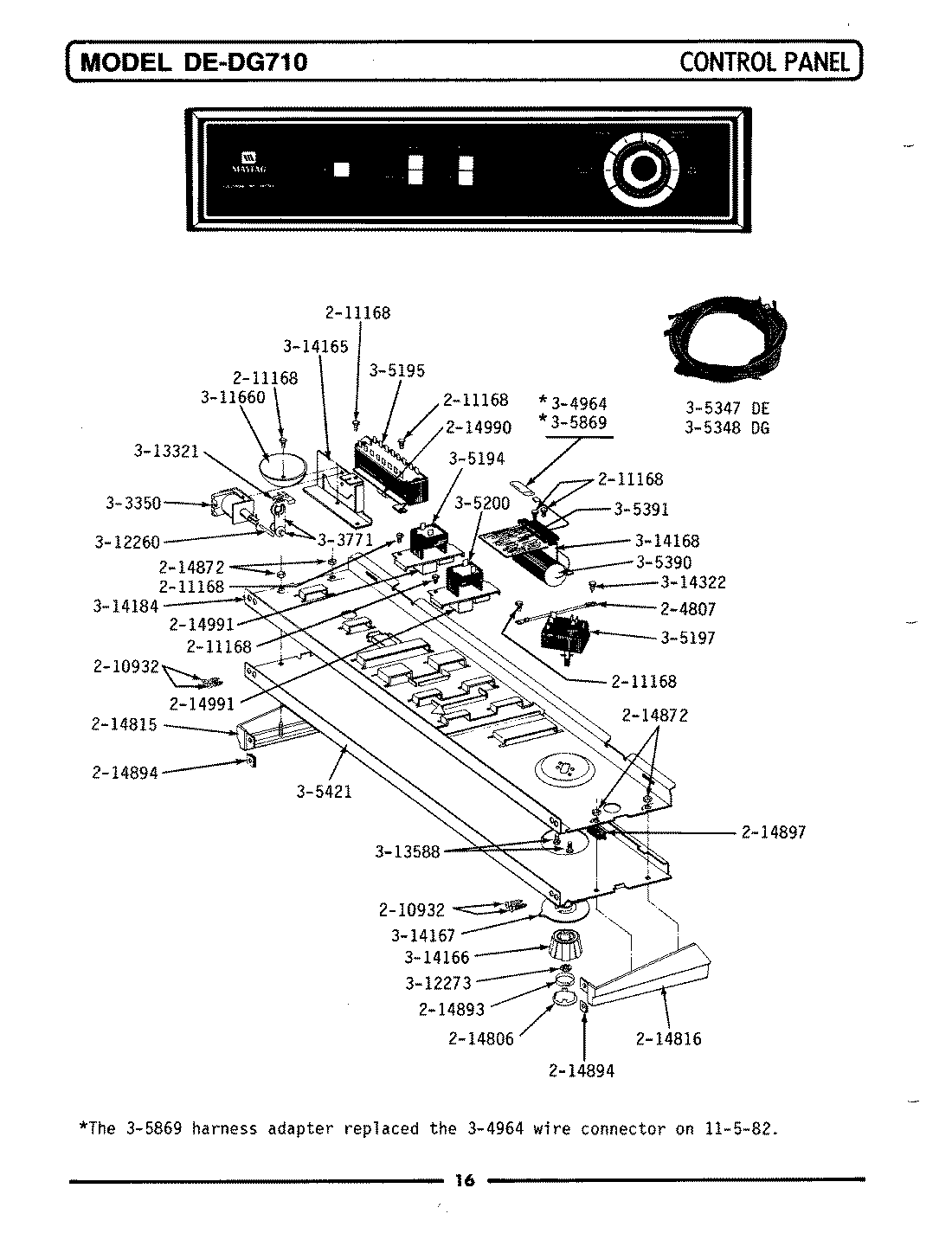

GDE710 01 – CONTROL PANEL

Products

Position	Product
1	MAY 204807
2	MAY 210932
3	WPW10139210 Whirlpool Screw
4	MAY 214806
5	MAY 214815
6	MAY 214816
7	MAY 214872
8	MAY 214893
9	MAY 214894
10	MAY 214897
11	MAY 214990
12	MAY 214991
13	MAY Y303350
14	MAY Y303771
15	MAY 304964
16	MAY 305194
17	MAY 305195
18	MAY 305197
19	MAY 305200
20	MAY 305347
21	MAY 305348
22	MAY 305390
23	MAY 305391
24	CONTROL PANEL
25	MAY 305869
26	MAY Y311660
27	MAY Y312260
28	W10155650 Whirlpool Nut
29	MAY Y313321
30	WP488234 Whirlpool Air Conditioner Screw
31	MAY 314165
32	MAY Y314166
33	TIMER DIAL INDICATOR
34	BRACKET F/ELECTRONIC CONTRO
35	BACK UP PLATE
36	MAY Y314322
