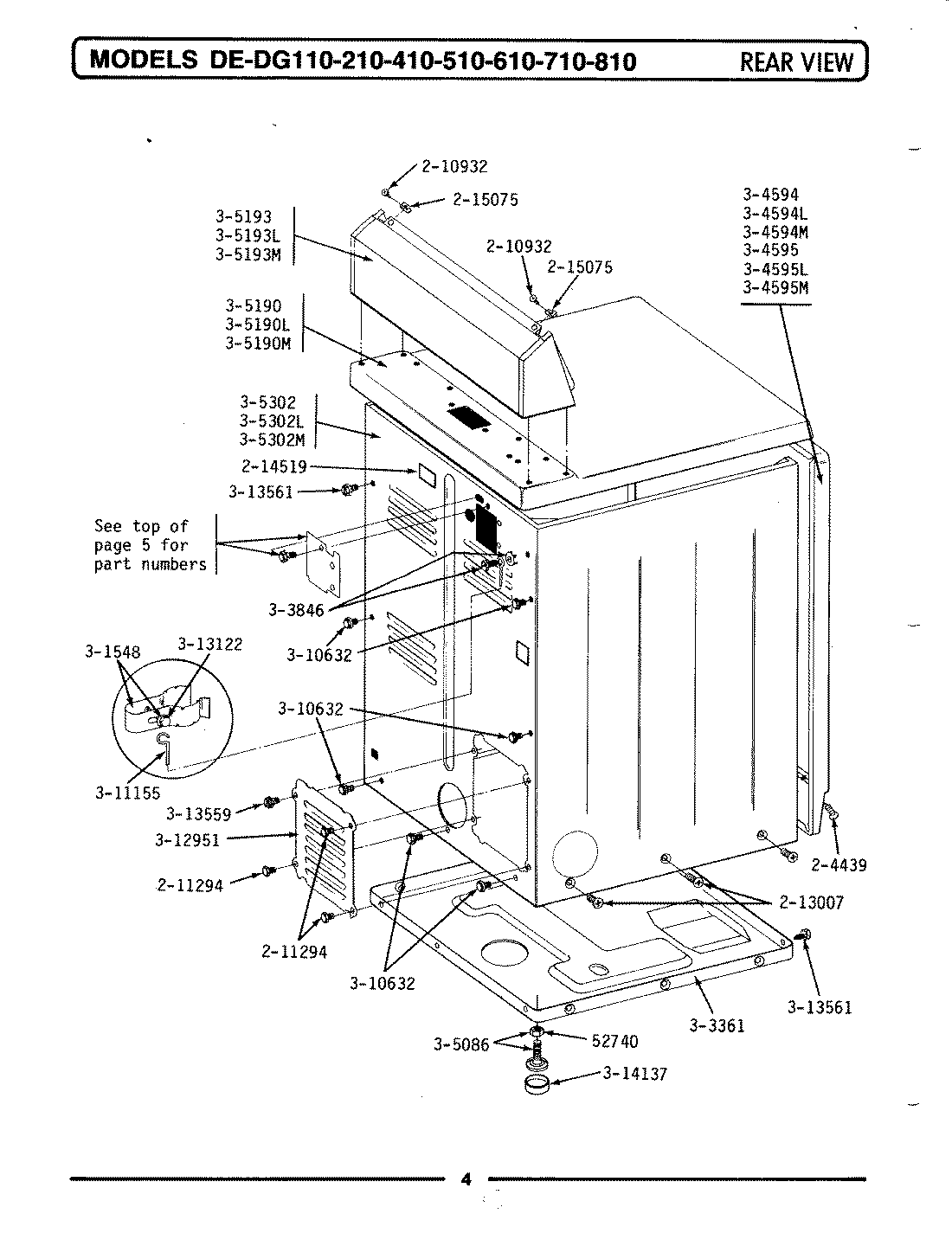

GDE710 08 – REAR VIEW

Products

Position	Product
NI	GROMMET
NI	WP311155 Whirlpool Wire Assembly
NI	WP112432 Whirlpool Nut Assembly
NI	PART NOT USED
NI	SCREW, No.10-24 X 3/4 INCH—–O
NI	PART NOT USED
NI	PART NOT USED
NI	MAY Y201808
NI	MAY Y312905
NI	SCREW & FSTNER ASSY (FT. PNL)
NI	MAY 303846
NI	MAY Y310632
NI	MAY Y313561
1	WP62739 Whirlpool Nut
4	MAY 210932
5	WP90767 Whirlpool Screw
7	213007 Whirlpool Screw #12
8	INSTRUCTION LABEL
9	MAY 215075
10	MAY 301548
11	MAY 302521
12	MAY Y303361
14	MAY 304594
15	MAY 304594L
16	MAY 304594M
19	MAY 304595M
20	W10176519 Whirlpool Leveling Feet
23	MAY 305190M
26	MAY 305193M
29	MAY 305302M
32	WPY311270 Whirlpool Washer TE
33	PART NOT USED
39	MAY Y312951
40	MAY 313122
41	MAY Y313559
43	WPY314137 Whirlpool Rubber Foot
