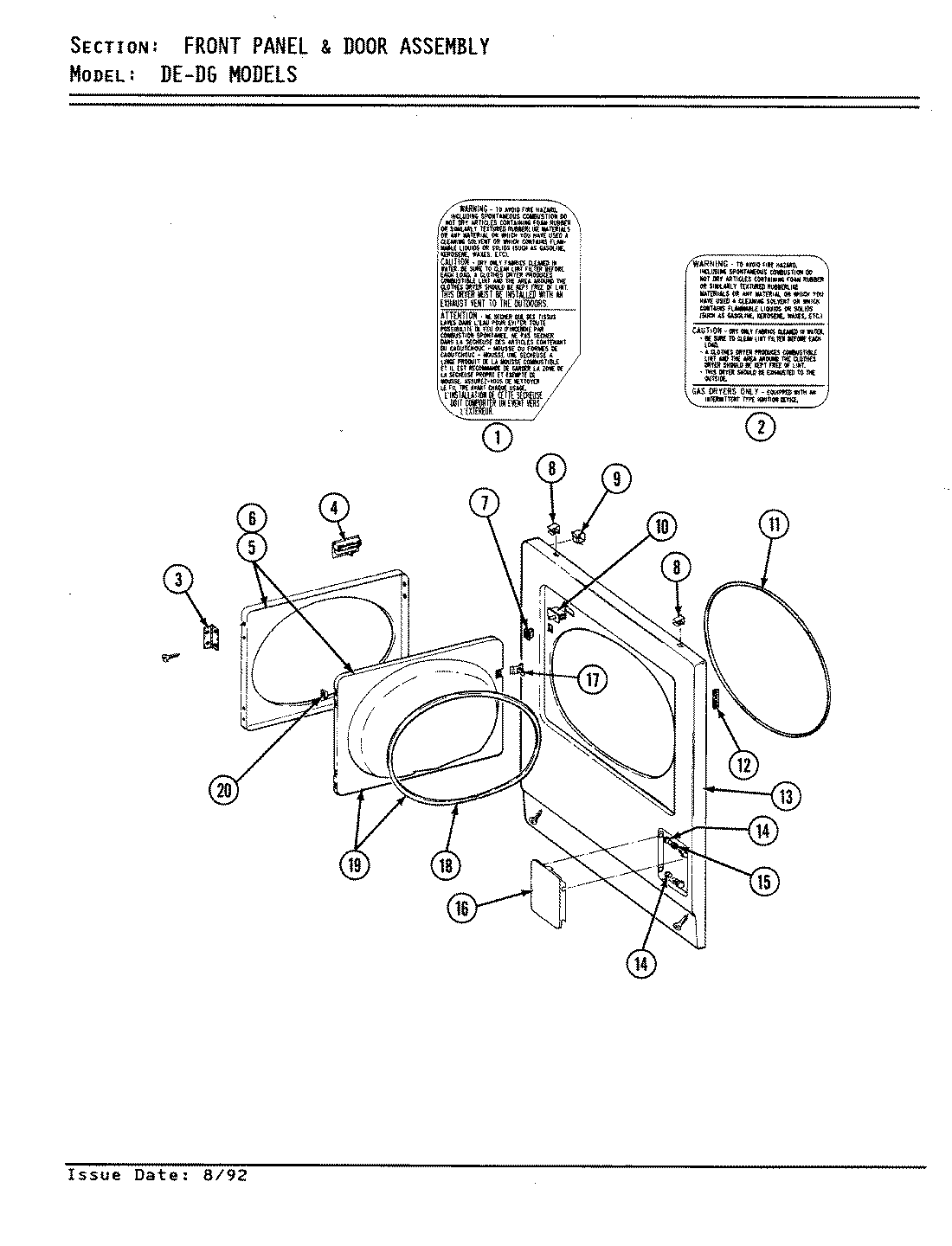

GDE7500 02 – FRONT PANEL & DOOR ASSEMBLY

GDE7500 02 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

GDE7500 02 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
1MAY 314942
2MAY 314941
3MAY 307099
4MAY 314973
4SCREW
5MAY 307111M
6MAY 314966M
7306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
8MAY 212982
9MAY Y310376
10W10169313 Whirlpool Door Switch Kit
11MAY 314937
12MAY Y313907
13SCREW & FSTNER ASSY (FT. PNL)
13MAY 308000M
17MAY 314944
17MAY 314936
18MAY 314935
19MAY 307098
20CLIP, DOOR LINER
