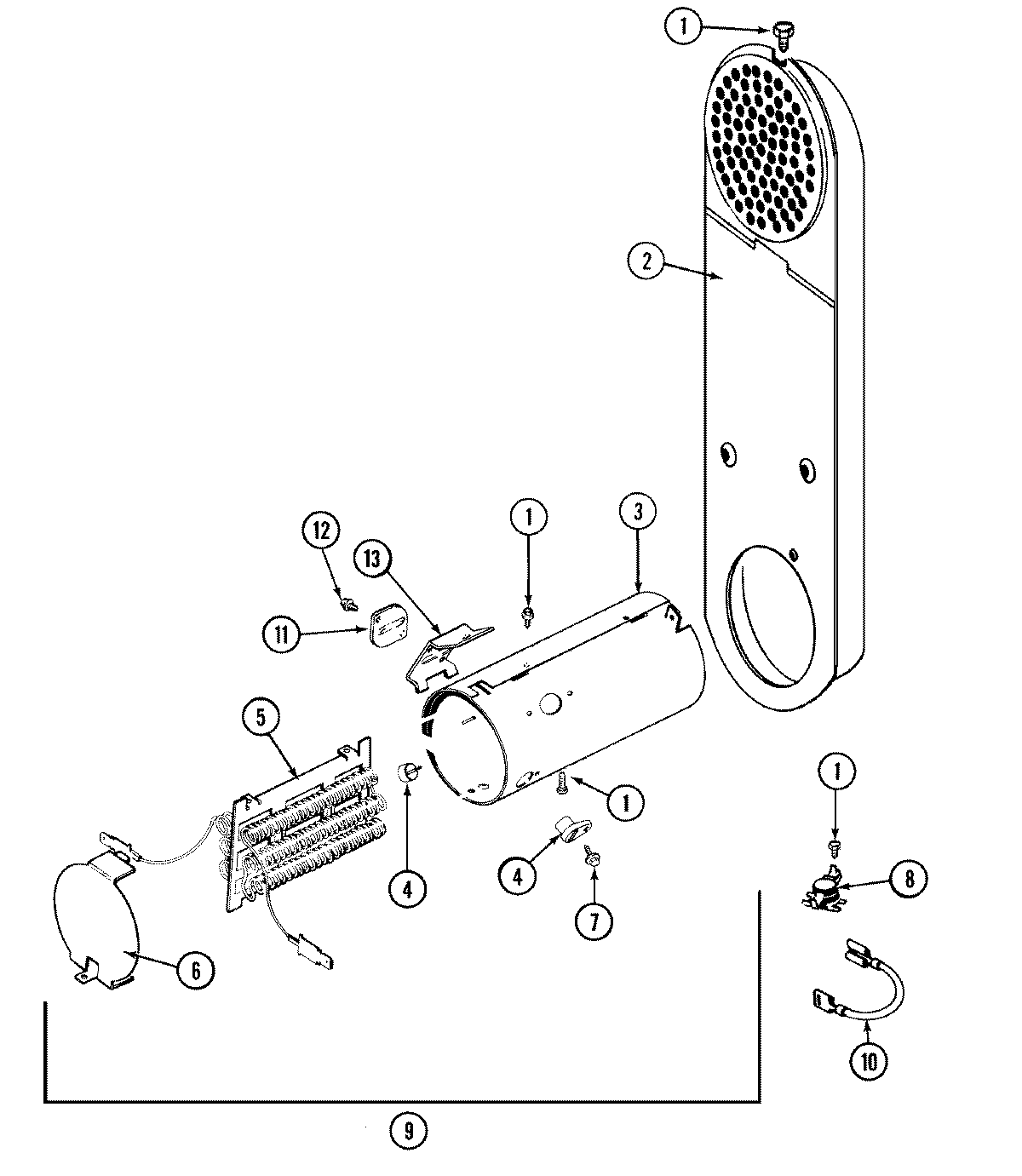

GDE7500 05 – INLET DUCT & HEATER ASSEMBLY (SERIES A3)

GDE7500 05 – INLET DUCT & HEATER ASSEMBLY (SERIES A3)

Written by

in

GDE7500 05 – INLET DUCT & HEATER ASSEMBLY (SERIES A3)

Products

Position	Product
1	WP90767 Whirlpool Screw
2	MAY 307120
3	MAY 314995
4	MAY 314998
5	MAY 307185
5	MAY 307184
6	MAY 314999
7	MAY 314554
8	WP303396 Whirlpool Thermostat
8	MAY 308217
9	WP307178 Whirlpool Element
10	WPY307173 Whirlpool Wire Jumper
11	WP307473 Whirlpool Thermal Fuse
12	MAY 314848
13	MAY 315346
