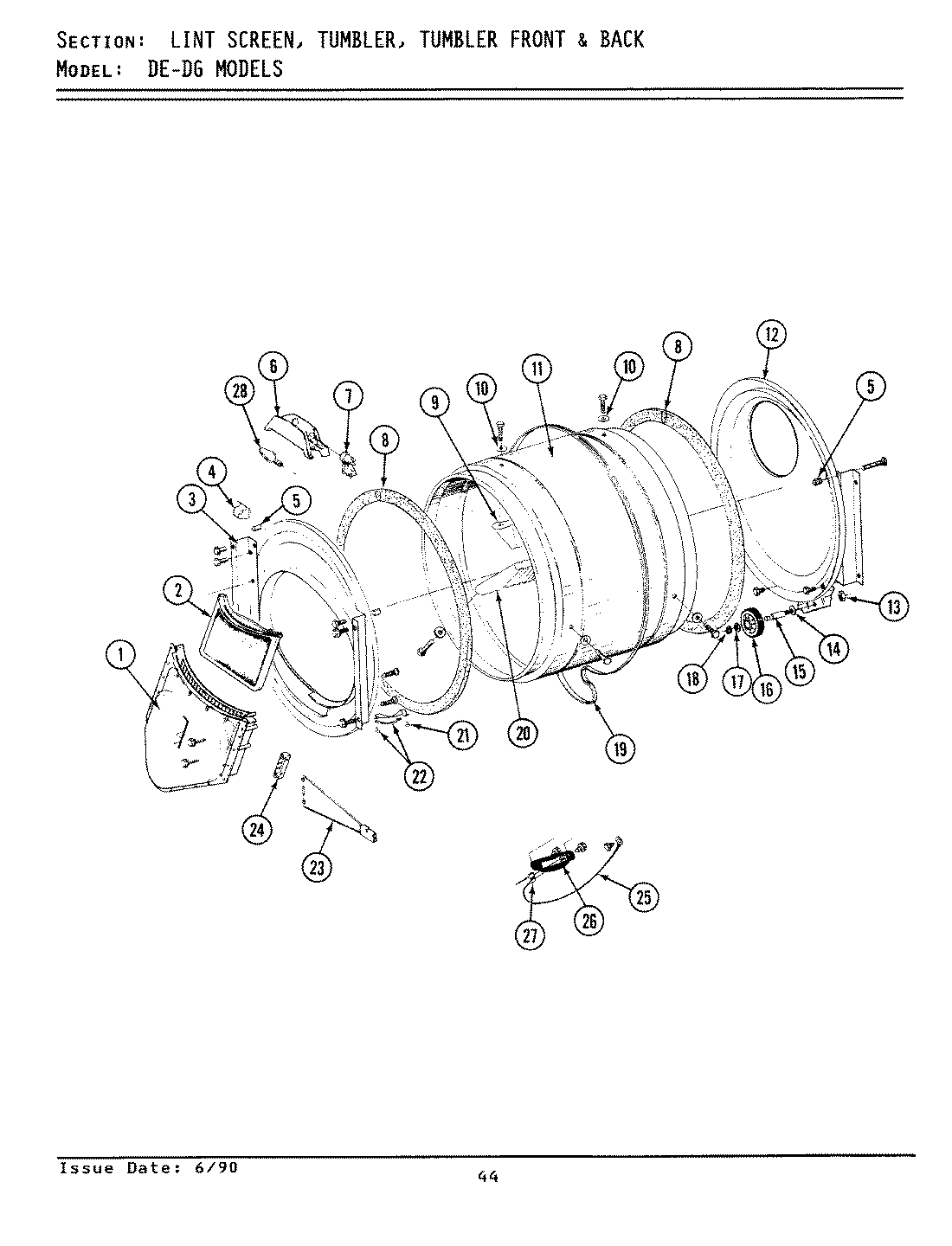

GDE7500 07 – LINT SCREEN, TUMBLER (FRONT & BACK)

Products

Position	Product
1	SCREW, INLET DUCT —-S
1	MAY Y307112
2	MAY Y307107
3	MAY Y310632
3	MAY Y313561
3	MAY 313764
3	MAY 307109
4	MAY Y310376
5	MAY 313915
8	WP314820 Whirlpool Felt Seal
9	MAY 314803
10	MAY 314158
11	MAY 314802
12	MAY Y307114
12	WP90767 Whirlpool Screw
13	MAY 312538
15	WP6-3129480 Whirlpool Roller Shaft
16	MAY Y303373
17	WP312535 Whirlpool Washer
18	WP9703438 Whirlpool Snap Retaining Ring
19	WPY312959 Whirlpool Dryer Drum Belt
20	MAY Y310759
20	33001004 Whirlpool Baffle
21	WP210720 Whirlpool Rivet
22	306508 Whirlpool Dryer Front Glide Kit
27	MAY Y312658
