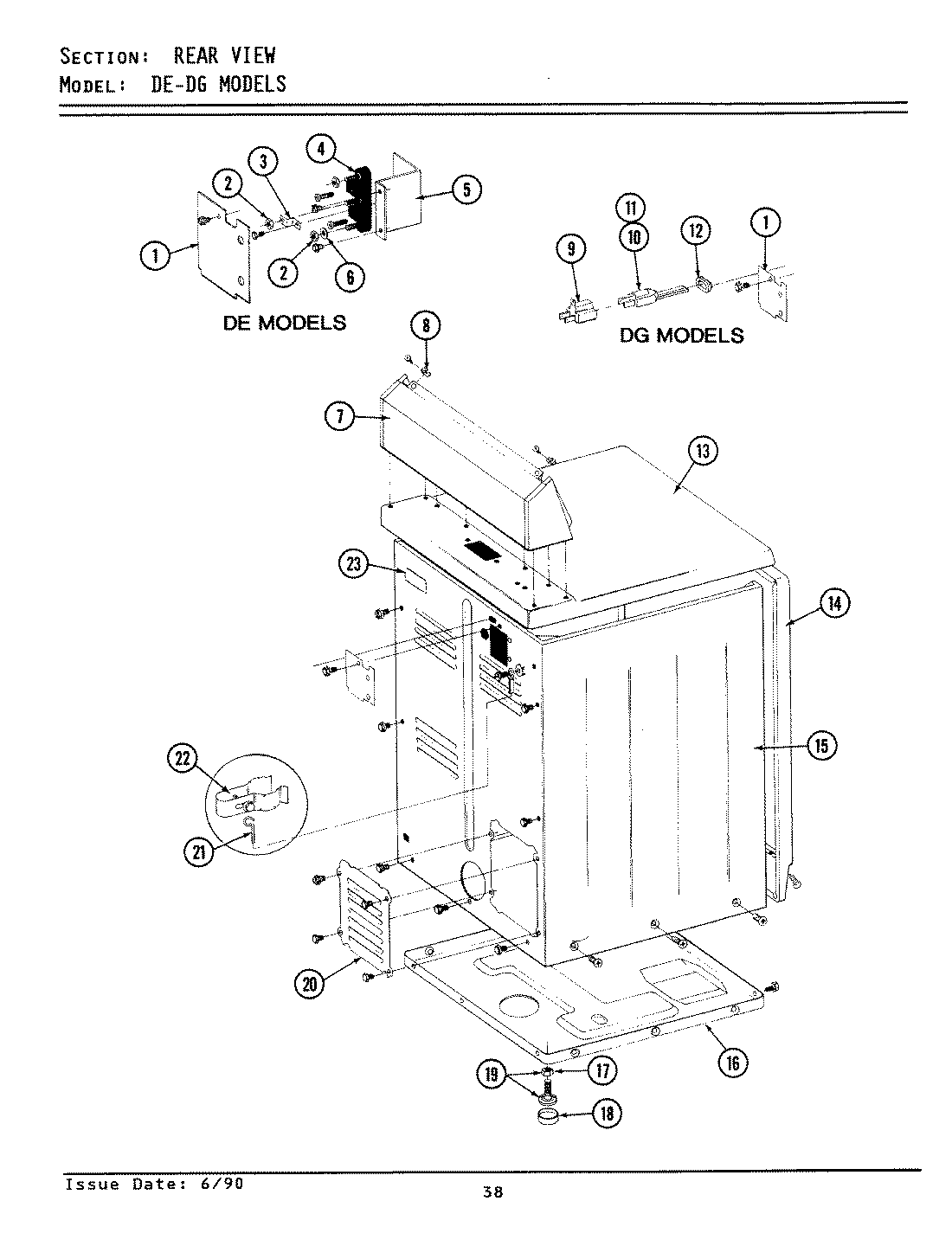

GDE7500 09 – REAR VIEW

GDE7500 09 – REAR VIEW

Written by

in

GDE7500 09 – REAR VIEW

Products

PositionProduct
1MAY Y312905
2WP112432 Whirlpool Nut Assembly
3PART NOT USED
3PART NOT USED
4SCREW, No.10-24 X 3/4 INCH—–O
4PART NOT USED
5PART NOT USED
6WPY311270 Whirlpool Washer TE
7MAY 210932
7MAY 305193M
8MAY 215075
11MAY 305168
13MAY 307104M
14MAY 308000M
14MAY 204445
15MAY 303846
15MAY 307124M
15213007 Whirlpool Screw #12
15MAY Y310632
15MAY Y313561
16MAY Y303361
17WP62739 Whirlpool Nut
18WPY314137 Whirlpool Rubber Foot
19W10176519 Whirlpool Leveling Feet
20MAY Y313559
20MAY Y312951
20WP90767 Whirlpool Screw
