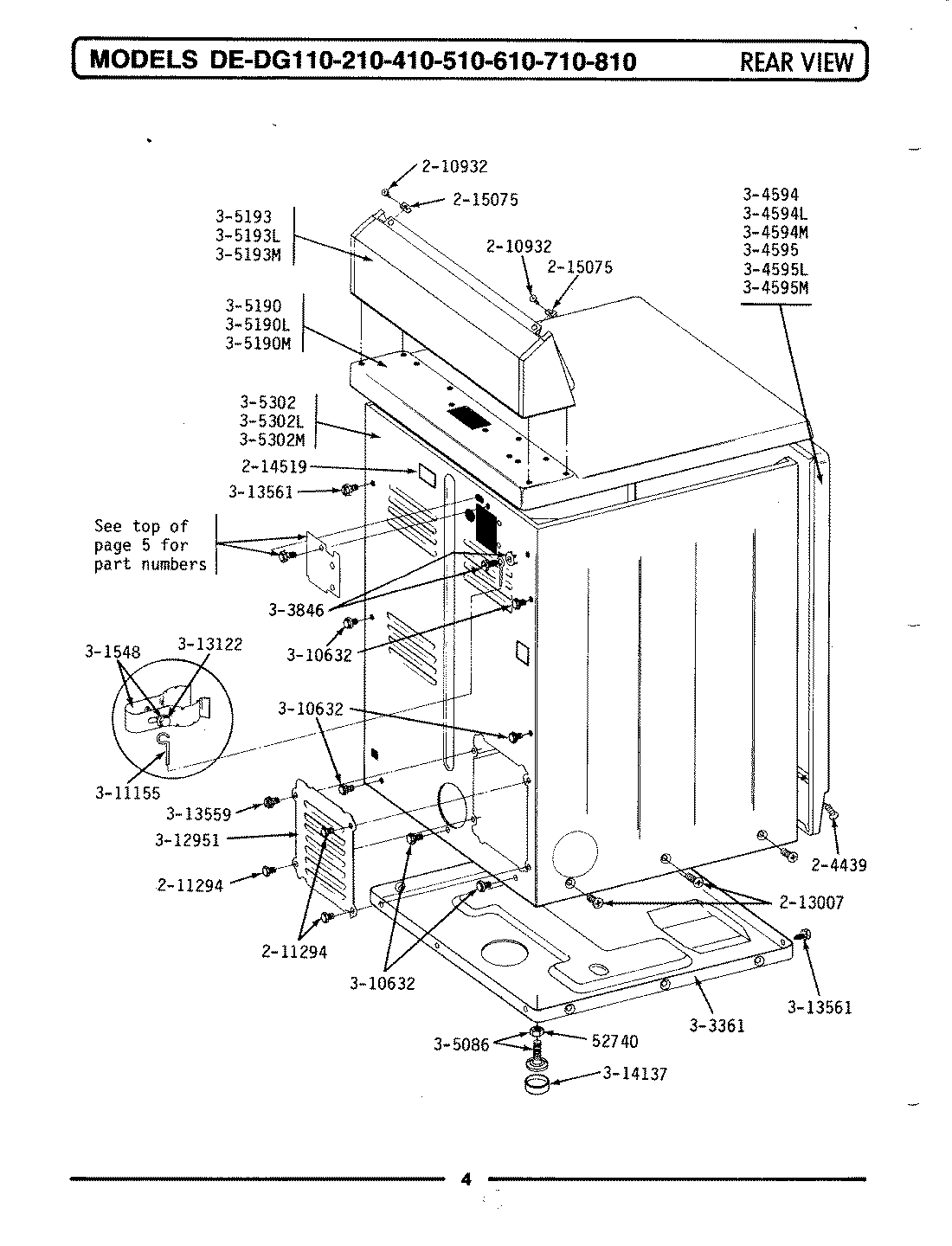

GDE810 08 – REAR VIEW

GDE810 08 – REAR VIEW

Written by

in

GDE810 08 – REAR VIEW

Products

PositionProduct
NIMAY 302521
NIWPY311270 Whirlpool Washer TE
NIPART NOT USED
NISCREW, No.10-24 X 3/4 INCH—–O
NIPART NOT USED
NIPART NOT USED
NIPART NOT USED
NIMAY Y312905
NIWP112432 Whirlpool Nut Assembly
NIGROMMET
NIMAY Y313561
NIMAY Y310632
NIMAY Y201808
1WP62739 Whirlpool Nut
3SCREW & FSTNER ASSY (FT. PNL)
4MAY 210932
5WP90767 Whirlpool Screw
7213007 Whirlpool Screw #12
8INSTRUCTION LABEL
9MAY 215075
10MAY 301548
12MAY Y303361
13MAY 303846
14MAY 304594
15MAY 304594L
16MAY 304594M
19MAY 304595M
20W10176519 Whirlpool Leveling Feet
23MAY 305190M
26MAY 305193M
29MAY 305302M
31WP311155 Whirlpool Wire Assembly
39MAY Y312951
40MAY 313122
41MAY Y313559
43WPY314137 Whirlpool Rubber Foot
