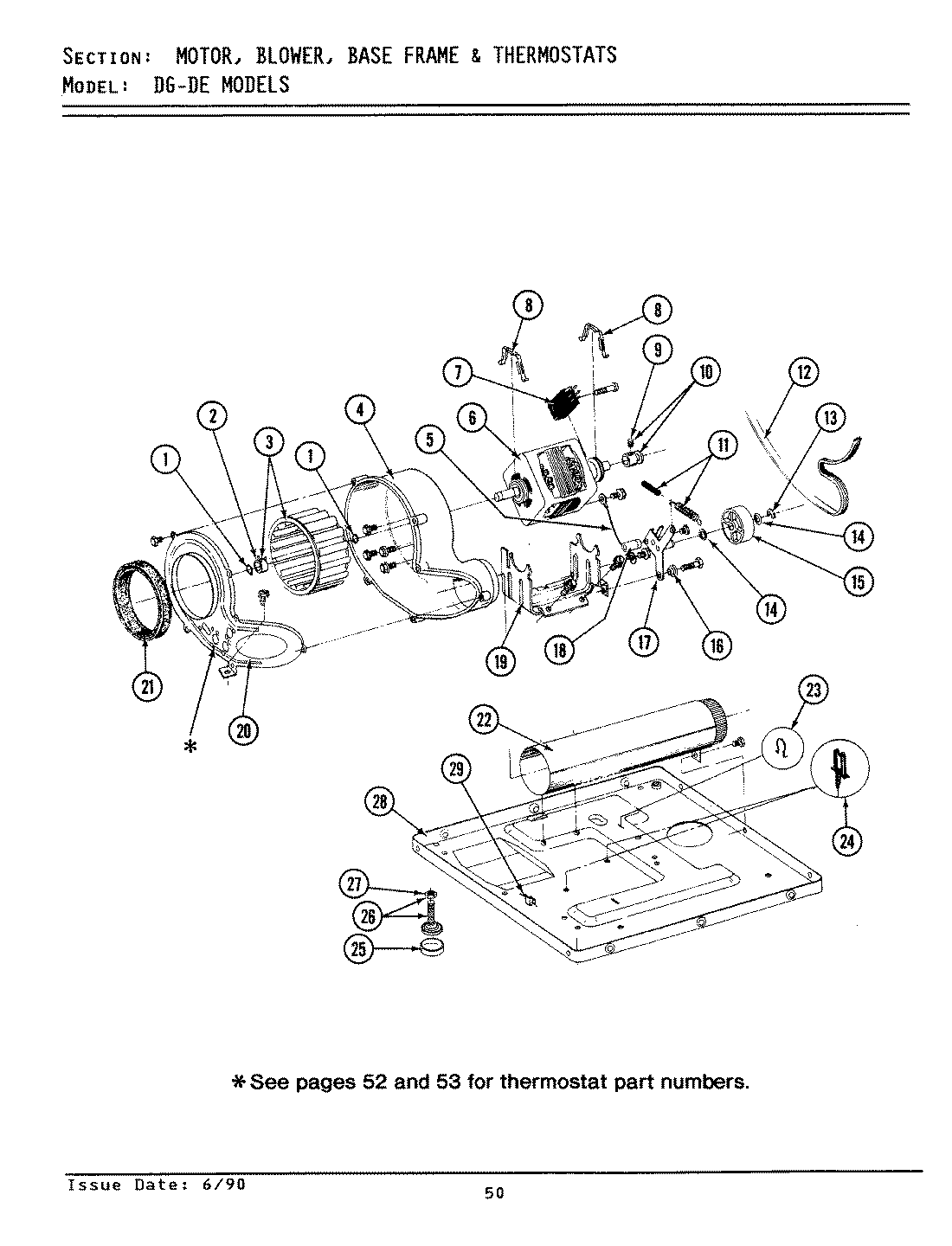

GDE8300 08 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

GDE8300 08 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Written by

in

GDE8300 08 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
1WP9703438 Whirlpool Snap Retaining Ring
2WP312967 Whirlpool Clamp
3Y303836 Whirlpool Dryer Blower Wheel
4MAY Y312893
5WP90767 Whirlpool Screw
5MAY 910343
5MAY 901220
6W10410999 Whirlpool Dryer Drive Motor
7MAY Y303879
7MAY 306207
7MAY Y303877
8WPY015825 Whirlpool Motor Clip
9MAY Y053241
10MAY Y305185
11MAY Y303945
12WPY312959 Whirlpool Dryer Drum Belt
13WP354987 Whirlpool C-Clip
14MAY Y312527
15WP6-3037050 Whirlpool Idler Pulley
16SLEEVE, IDLER ARM —-S
17WPY014874 Whirlpool Screw
17WP6-3033630 Whirlpool Dryer Idler Arm Assembly
18WPW10116756 Whirlpool Spacer
19MAY 312897
20WPW10116751 Whirlpool Screw
20MAY 314846
20MAY Y313561
21WPY312901 Whirlpool Blow Seal
22MAY Y303442
22MAY Y310632
23MAY 410490
24MAY Y313262
25WPY314137 Whirlpool Rubber Foot
26W10176519 Whirlpool Leveling Feet
27WP62739 Whirlpool Nut
28MAY Y303361
29MAY Y310376
