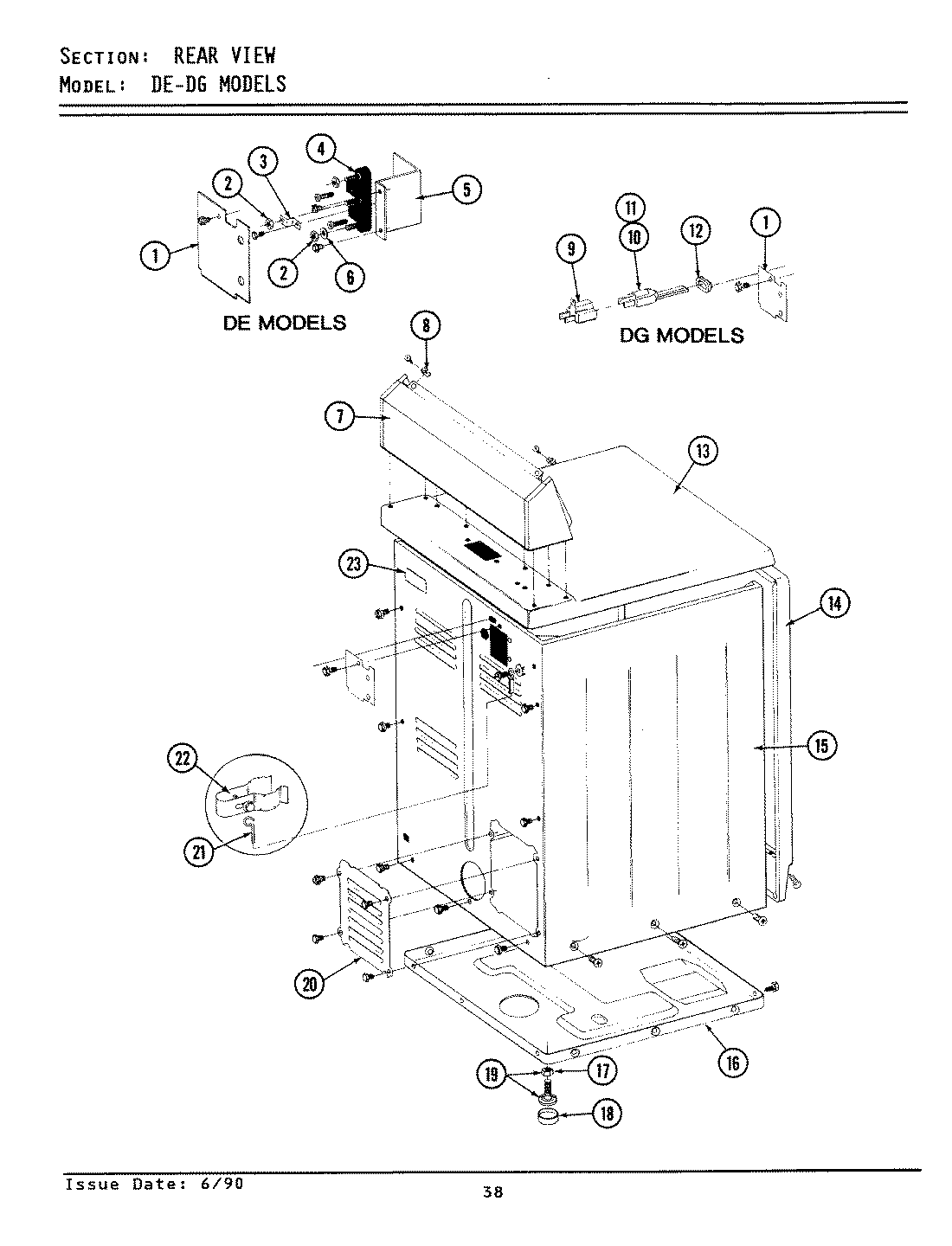

| 1 | MAY Y312905 |
| 2 | WP112432 Whirlpool Nut Assembly |
| 3 | PART NOT USED |
| 3 | PART NOT USED |
| 4 | SCREW, No.10-24 X 3/4 INCH-----O |
| 4 | PART NOT USED |
| 5 | PART NOT USED |
| 6 | WPY311270 Whirlpool Washer TE |
| 7 | MAY 305193M |
| 8 | MAY 215075 |
| 11 | MAY 305168 |
| 13 | MAY 307104M |
| 15 | MAY 307124M |
| 15 | MAY Y310632 |
| 15 | MAY Y313561 |
| 16 | MAY Y303361 |
| 17 | WP62739 Whirlpool Nut |
| 18 | WPY314137 Whirlpool Rubber Foot |
| 19 | W10176519 Whirlpool Leveling Feet |
| 20 | MAY Y313559 |
| 20 | MAY Y312951 |
| 20 | WP90767 Whirlpool Screw |
