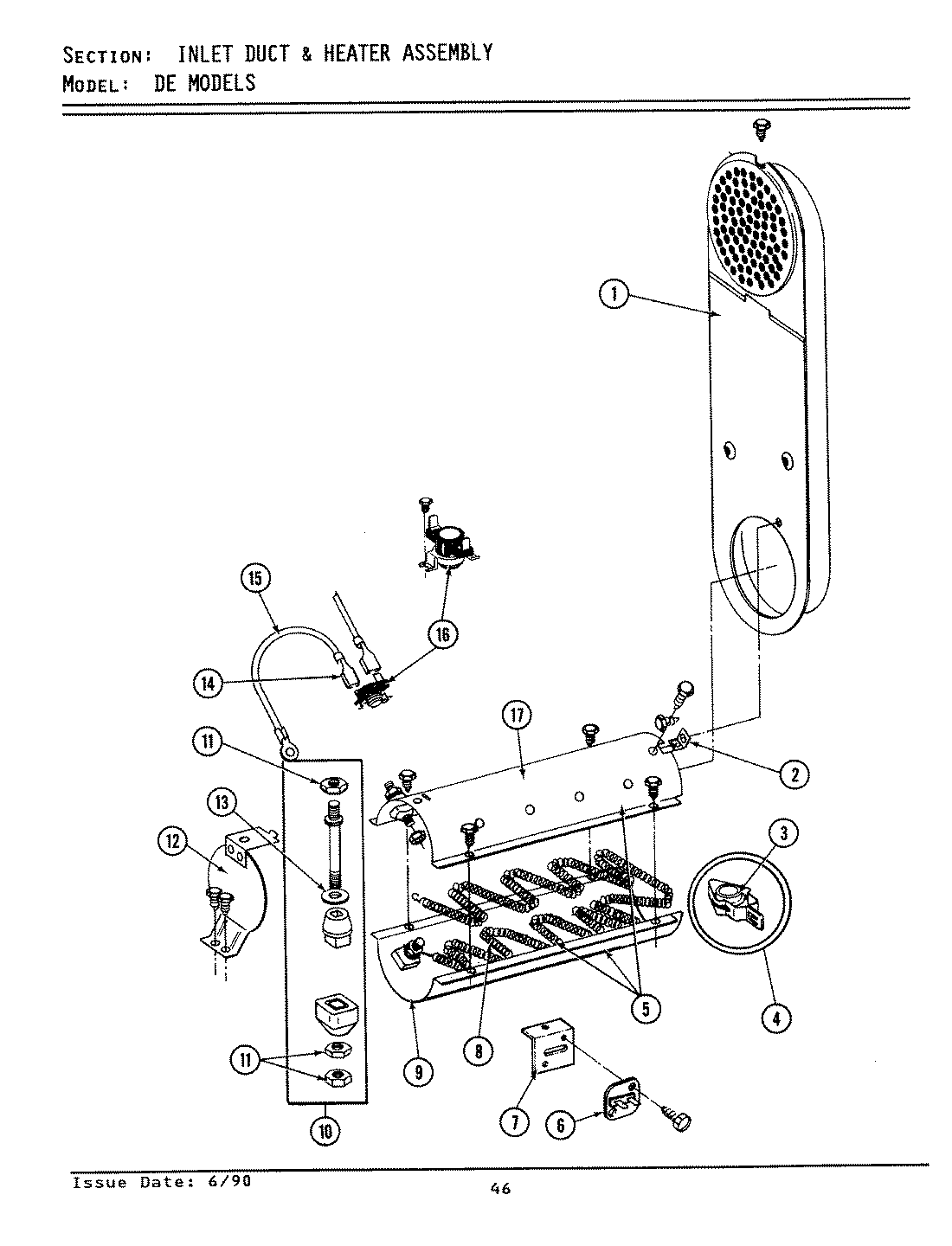

GDE8420 04 – INLET DUCT & HEATER ASSEMBLY

Products

Position	Product
1	MAY 307120
2	MAY Y312890
3	MAY Y313270
4	WPY303881 Whirlpool Clip and Insulator
5	MAY Y303778
6	WP307473 Whirlpool Thermal Fuse
6	MAY 314848
7	MAY 315046
8	WPY313538 Whirlpool Heater Element
9	MAY Y313576
10	Y304596 Whirlpool Terminal Insulator Assembly
11	WP112432 Whirlpool Nut Assembly
12	MAY 304124
13	WP311093 Whirlpool Washer 7
14	MAY 210745
15	WPY304693 Whirlpool Wire Jumper
16	WP303896 Whirlpool High Limit Thermostat
16	WP303396 Whirlpool Thermostat
17	MAY Y313575
17	WP90767 Whirlpool Screw
