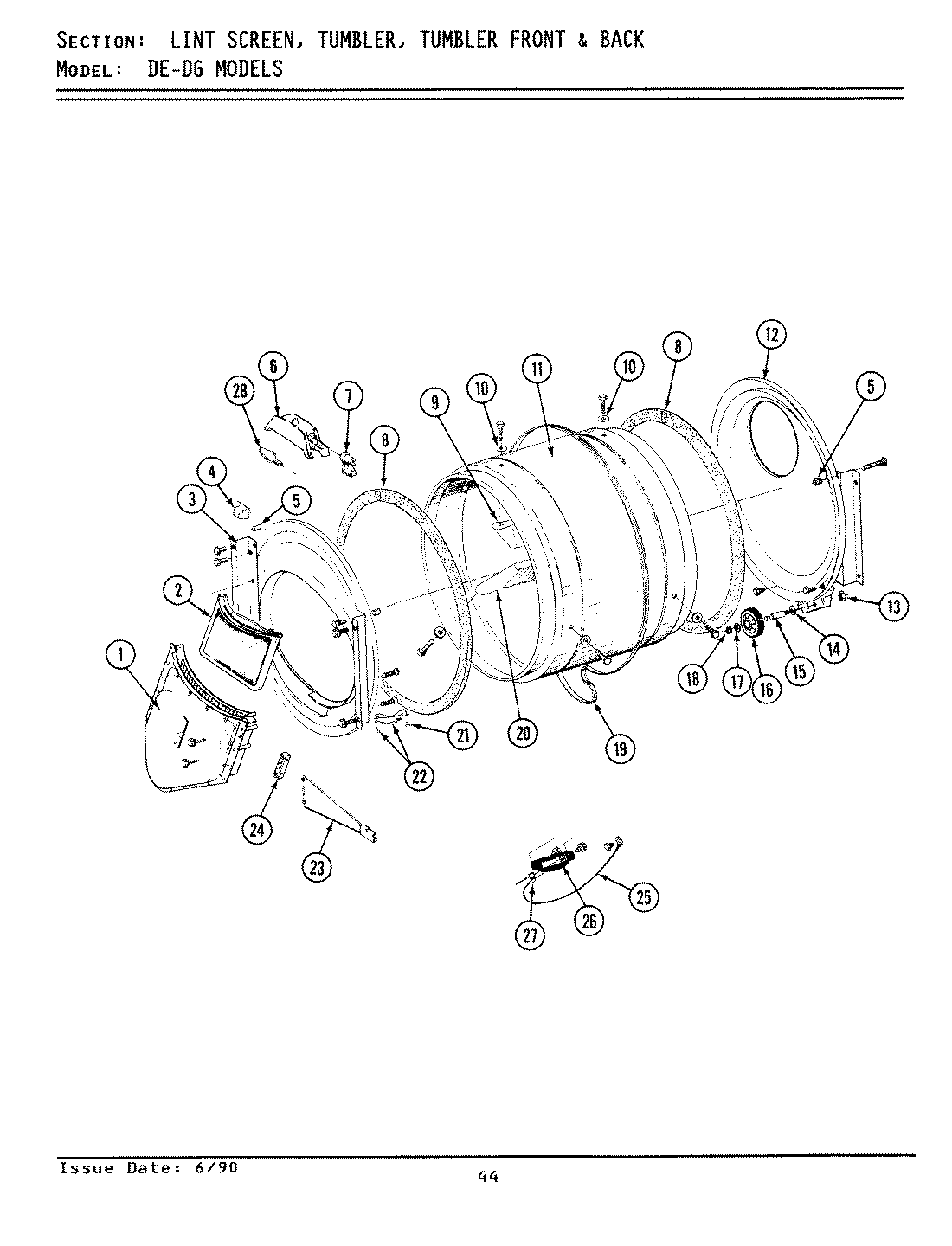

GDE9700 07 – LINT SCREEN, TUMBLER (FRONT & BACK)

GDE9700 07 – LINT SCREEN, TUMBLER (FRONT & BACK)

Written by

in

GDE9700 07 – LINT SCREEN, TUMBLER (FRONT & BACK)

Products

PositionProduct
1MAY Y307112
1SCREW, INLET DUCT —-S
2MAY Y307107
3MAY 307311
3MAY 313764
3MAY Y310632
3MAY Y313561
4MAY Y310376
5MAY 313915
8WP314820 Whirlpool Felt Seal
9MAY 314803
10MAY 314158
11MAY 314802
11MAY 306663
12MAY Y307114
13MAY 312538
15WP6-3129480 Whirlpool Roller Shaft
16MAY Y303373
17WP312535 Whirlpool Washer
18WP9703438 Whirlpool Snap Retaining Ring
19WPY312959 Whirlpool Dryer Drum Belt
2033001004 Whirlpool Baffle
20MAY Y310759
21WP210720 Whirlpool Rivet
22306508 Whirlpool Dryer Front Glide Kit
25MAY Y303711
25WP90767 Whirlpool Screw
26MAY 304997
26WP3177991 Whirlpool Screw
27MAY Y312658
