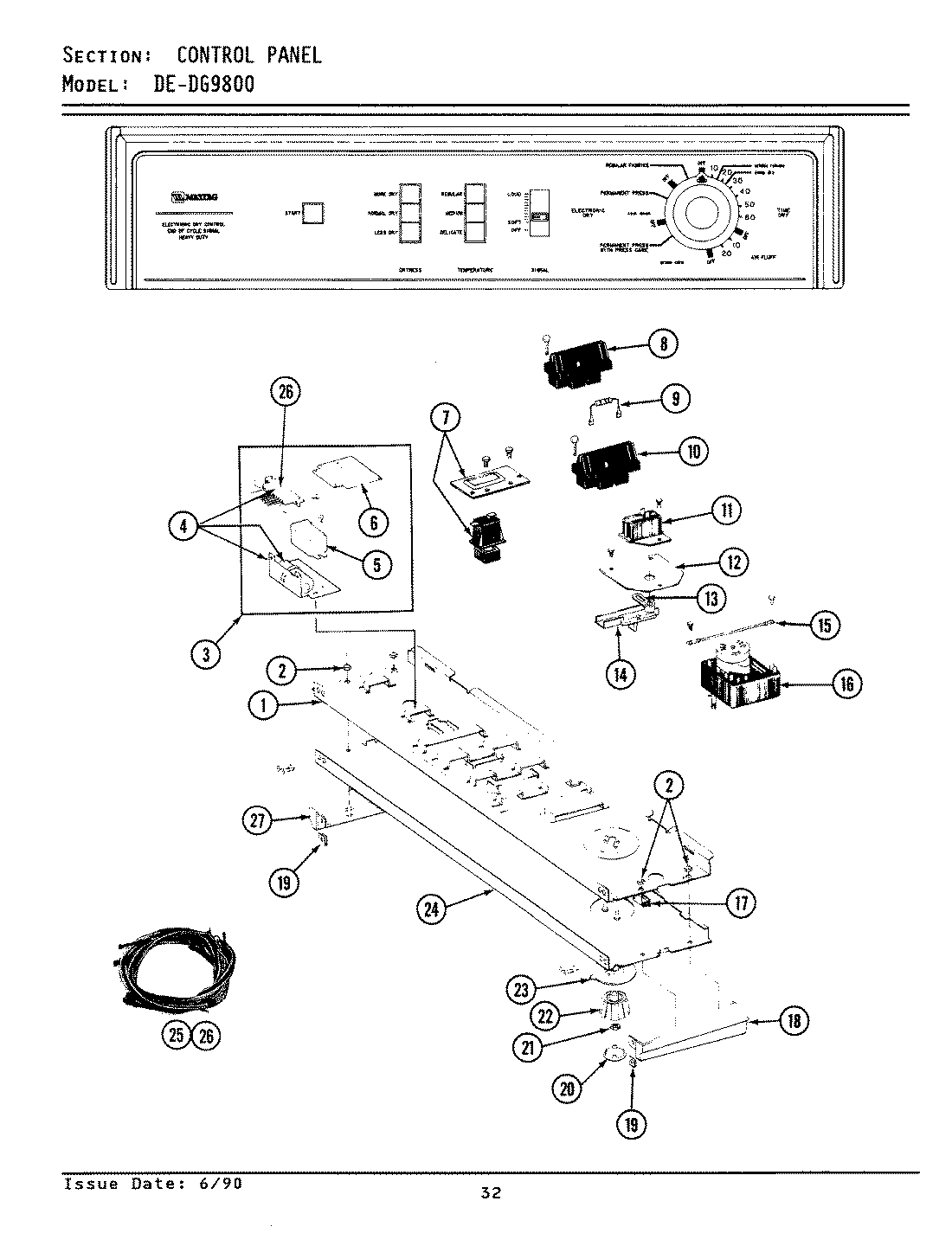

GDE9800 01 – CONTROL PANEL

Products

Position	Product
1	BACK UP PLATE
2	MAY 214872
3	MAY 307898
4	SCREW FOR CAUTION PLATE—-NA
4	EDGE BOARD CONNECTOR
5	WP3177991 Whirlpool Screw
5	MAY 307899
6	MAY Y307896
7	SWITCH PUSH TO START
9	MAY 306916
10	MAY 307304
10	WP67006908 Whirlpool Refrigerator Screw
11	MAY Y305204
12	BRACKET FOR BUZZER
12	WPW10139210 Whirlpool Screw
13	MAY 314171
14	SLIDE ASSY
15	MAY 204807
15	WP90767 Whirlpool Screw
16	MAY 910708
16	MAY Y307404
17	MAY 214897
18	MAY 207216
18	MAY 210932
19	MAY 214894
20	MAY 215821
21	W10155650 Whirlpool Nut
22	MAY 315041
23	MAY 315042
24	MAY 307321
25	MAY 307256
25	MAY Y307269
26	MAY 307422
27	MAY 207215
