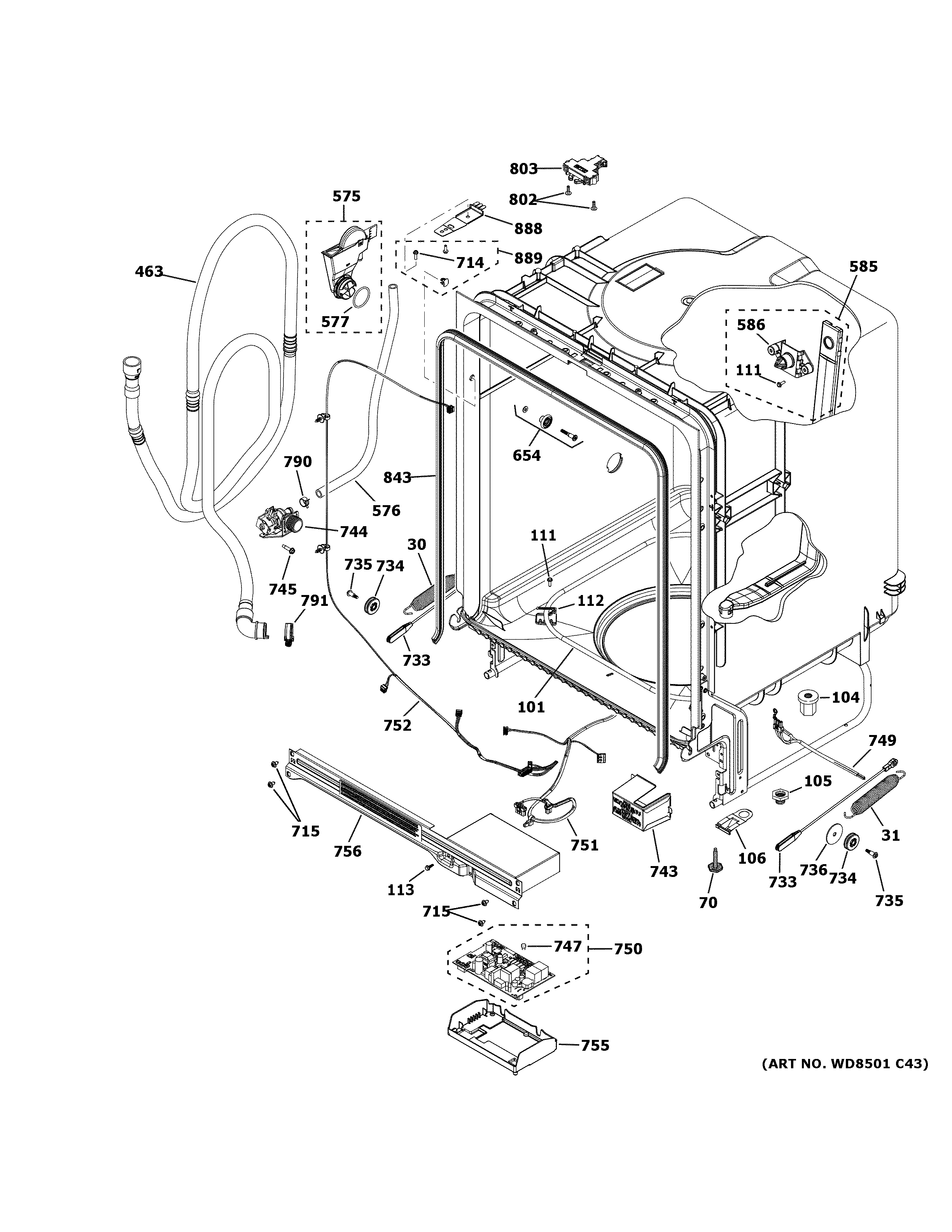

GDF450PSR1SS BODY PARTS

GDF450PSR1SS BODY PARTS

Written by

in

GDF450PSR1SS BODY PARTS

Products

PositionProduct
30WD03X20445 GE Dishwasher Door Spring
31WD02X28759 GE Dishwasher Door Spring
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
104WD01X10070 GE Dishwasher Nut
105WD02X28518 GE Dishwasher Heater Nut
106WD01X27718 GE Dishwasher Grounding Plate
111WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
112WD01X24381 GE Dishwasher Clip Heater Twist Lock
113WD01X27719 GE Screw PL HXW 8-18 1/2
463EXTENSION DRAIN HOSE
575WD12X28478 GE Dishwasher Fill Funnel
576WD24X27726 GE Dishwasher Fill Funnel Hose
577WD08X23817 GE Dishwasher O-Ring
585WD12X32040 GE Main Conduit
586WD12X32039 GE Dishwasher Conduit Docking Port
654WD12X10433 GE Dishwasher Tub Roller and Stud Assembly
714WR01X10065 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
733WD01X10569 GE Dishwasher Door Cable
734WD16X21836 GE Dishwasher Pulley
735WD01X21837 GE Dishwasher Screw 10-32
736WD01X20593 GE Dishwasher Friction Washer
743WD12X10412 GE Dishwasher Wiring Cover
744WATER VALVE ASM
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
747WD21X25696 GE Dishwasher Fuse
749WD21X26318 GE Dishwasher Jumper Harness
750CONFIGURED MACHINE CONTROL BD
751WD21X32679 GE Accessory Harness
752WD21X28978 GE Dishwasher Direct Connect Harness
755WD30X27750 GE Control Box Bottom
756WD30X28638 GE Dishwasher Control Box
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WD02X27754 GE Screw 3/4" Stainless 8-18 Ab Pnp
803DOOR LATCH
843GASKET TUB PLASTIC
888WD01X27759 GE Mounting Bracket
889WD02X27760 GE Dishwasher Countertop Bracket Screws AS
