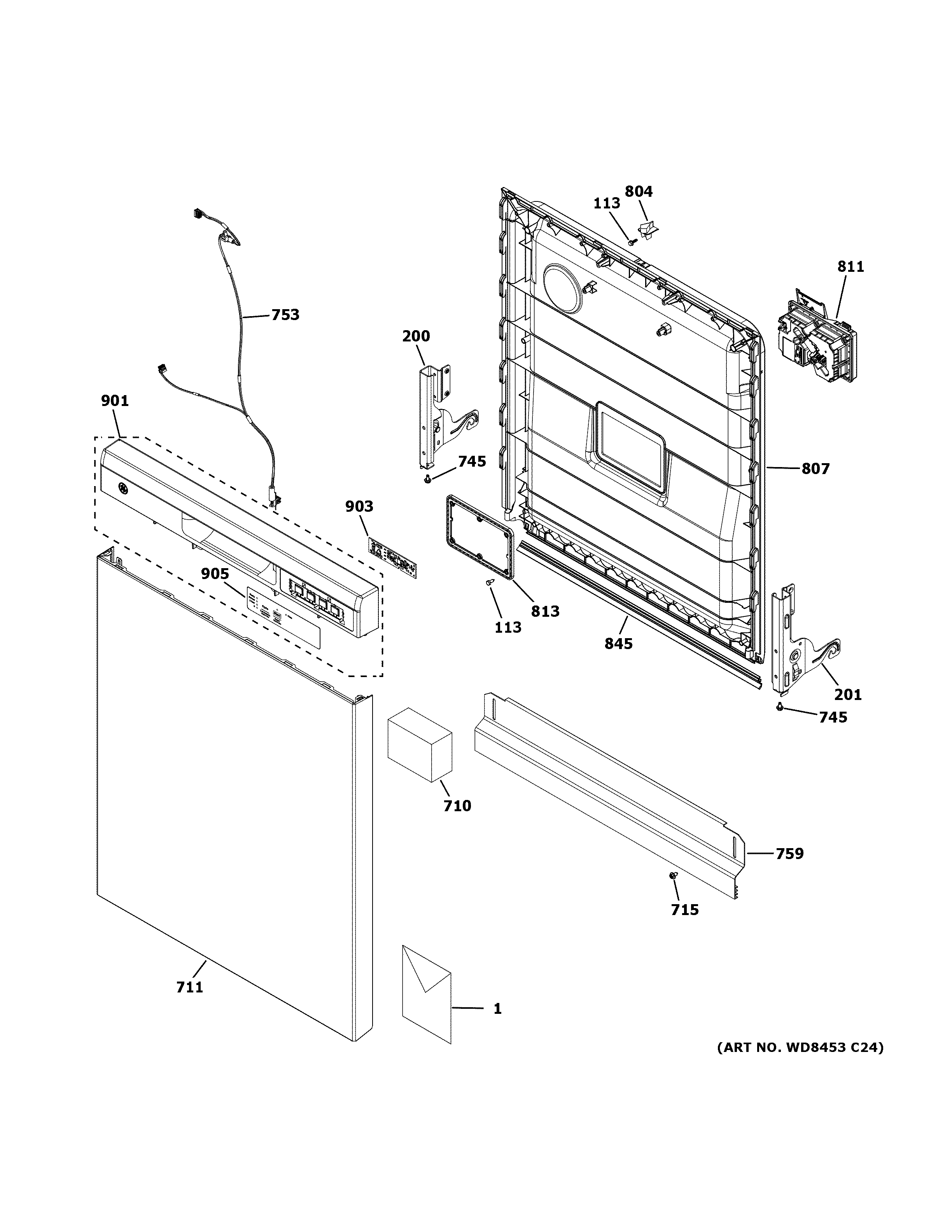

GDF450PSR1SS ESCUTCHEON & DOOR ASSEMBLY

GDF450PSR1SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GDF450PSR1SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1INSERT MINI MANUAL
1PM MINI MANUAL AND WIRING
1PM QUICK OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
113WD01X27719 GE Screw PL HXW 8-18 1/2
200WD01X27721 GE Dishwasher Door Hinge Assembly Left
201WD01X27720 GE Dishwasher Door Hinge Assembly Right
710WD01X28007 GE Vent Spacer
711WD27X28038 GE Dishwasher Stainless Steel Outer Service
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X27698 GE Dishwasher UI Harness Assembly
759BLACK TOE KICK
804WD13X10071 GE Dishwasher Door Strike
807WD27X28018 GE Dishwasher Inner Door Assembly Service
811DETERGENT MODULE
813WD12X10420 GE Dishwasher Detergent Plate
845WD08X21894 GE Dishwasher Door Gasket
901WD34X28028 GE Gray Control Panel Assembly
903WD27X27022 GE Dishwasher 2-Button UI Board Configuration
905WD34X27846 GE Gray Control Panel Overlay
