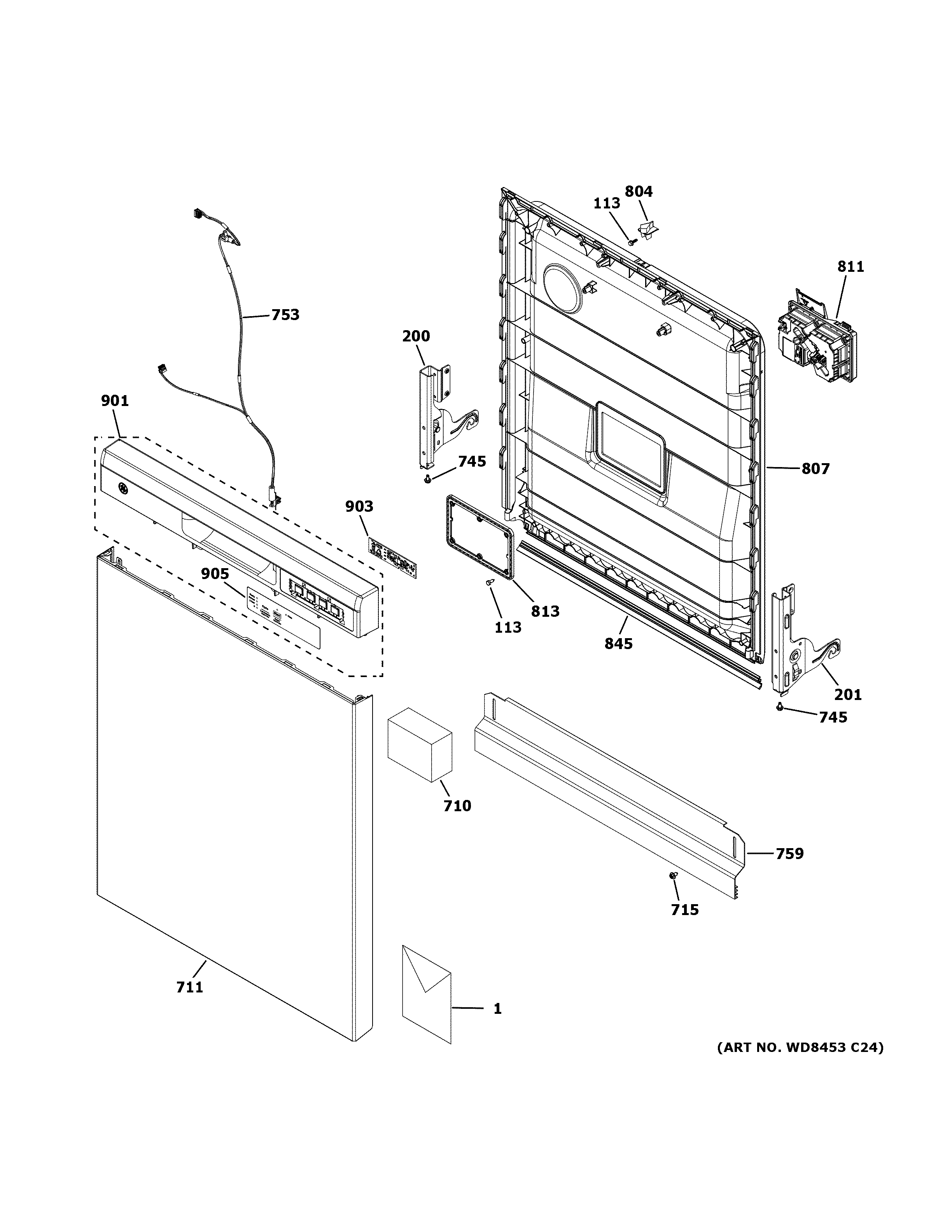

GDF450PSR6SS ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T08:40:17+00:00GDF450PSR6SS ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1PM QUICK OWNERS MANUAL1PM INSTALL INSTRUCTIONS1PM OWNERS MANUAL1INSERT MINI MANUAL1PM MINI MANUAL AND WIRING113WD01X27719 GE Screw PL HXW 8-18 1/2200WD01X27721 GE Dishwasher Door Hinge Assembly Left201WD01X27720 GE Dishwasher Door Hinge Assembly Right710WD01X28007 GE Vent Spacer711WD27X28038 GE Dishwasher Stainless Steel Outer Service715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S753WD21X32718 GE User Interface Harness759BLACK TOE KICK804WD13X10071 GE Dishwasher Door Strike807WD27X28018 GE Dishwasher Inner Door Assembly Service811DETERGENT MODULE813WD12X10420 GE Dishwasher Detergent Plate845WD08X21894 GE Dishwasher Door Gasket901WD34X28028 GE Gray Control Panel Assembly903WD21X30319 GE Dishwasher User Interface Control Board905WD34X27846 GE Gray Control Panel Overlay
